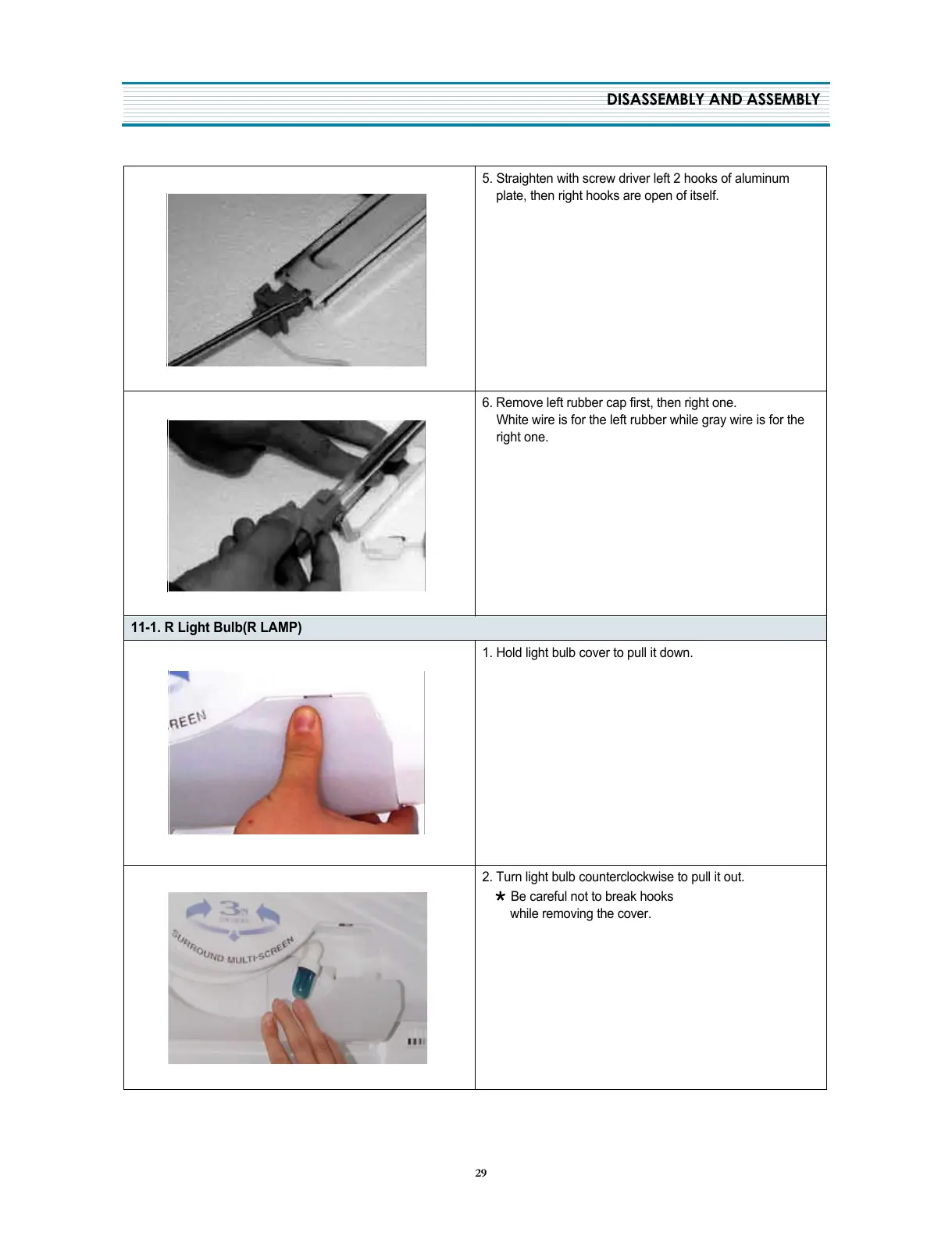

5. Straighten with screw driver left 2 hooks of aluminum
plate, then right hooks are open of itself.
6. Remove left rubber cap first, then right one.
White wire is for the left rubber while gray wire is for the
right one.
11-1. R Light Bulb(R LAMP)
1. Hold light bulb cover to pull it down.
2. Turn light bulb counterclockwise to pull it out.
Be careful not to break hooks
while removing the cover.
DISASSEMBLY AND ASSEMBLY
