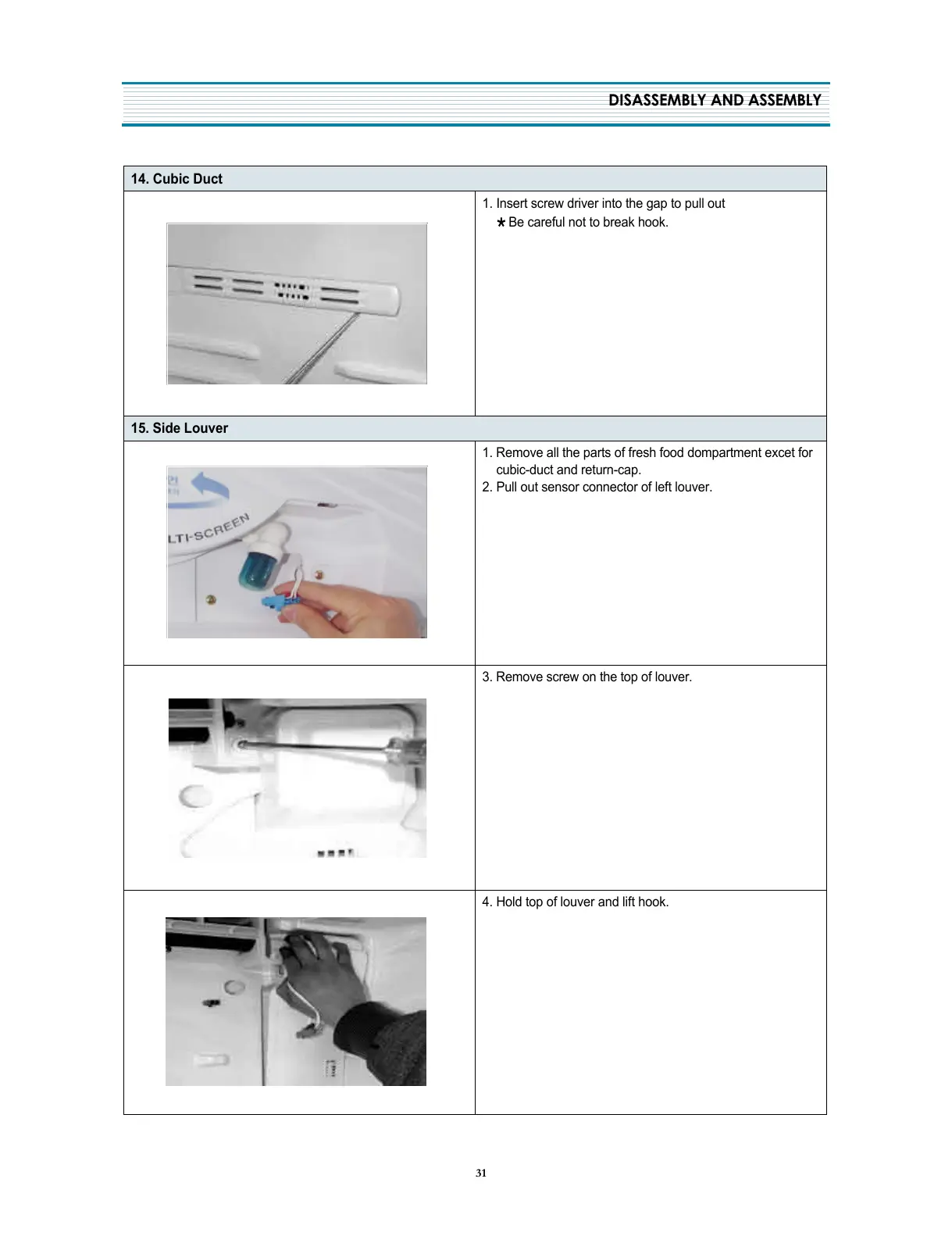

Daewoo FR-700NB - CUBIC DUCT AND SIDE LOUVER REMOVAL

31
14. Cubic Duct
1. Insert screw driver into the gap to pull out
Be careful not to break hook.
15. Side Louver
1. Remove all the parts of fresh food dompartment excet for
cubic-duct and return-cap.
2. Pull out sensor connector of left louver.
3. Remove screw on the top of louver.
4. Hold top of louver and lift hook.
DISASSEMBLY AND ASSEMBLY
