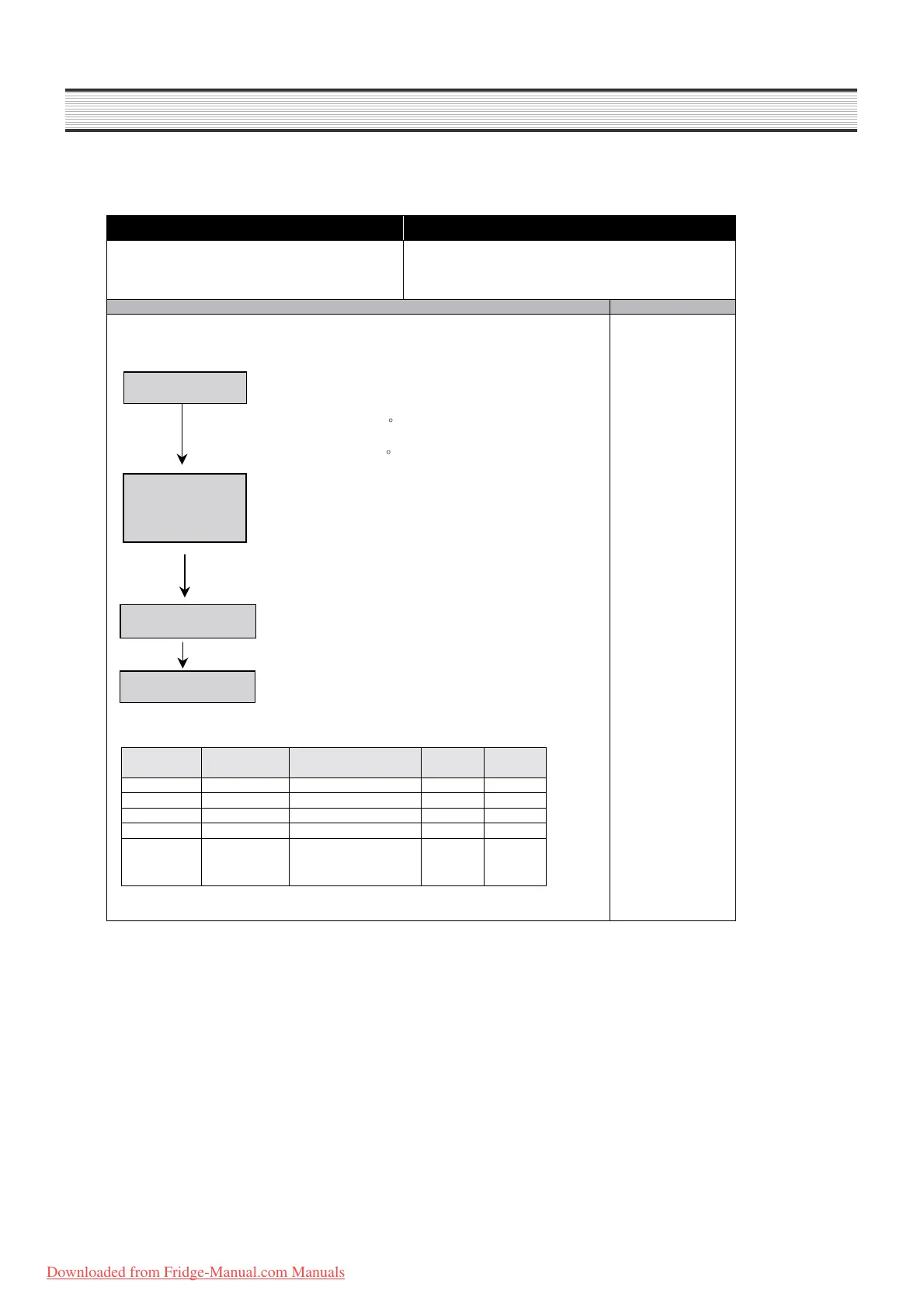

Defrosting Mode
INPUT Control Object
1. Defrosting Cycle
1. COMP
2. F-FAN
3. R-FAN
4. HEATER
CONTENTS REMARKS
1. Defrosting Mode
1) Time ; 50 minutes
2) Comp. / F-fan : ON
R-fan : Control
Heater : OFF
3) If F-sensor≤ - 27 , PRE-COOL becomes OFF.
1) If D-sensor ≥ 10 , Heater becomes OFF.
2) In case of Heater return by time limit of 40 or 80 min
(F3-Error)
3) Heater is ON for 30 minutes (time limit) in case of D-
sensor error.
4) Time limit
30 seconds : Heater is ON regardless of D-sensor
temperature right after defrosting start.
30 minutes : in case of D1-Error
80 minutes : in normal control state
1) Time : 7 minutes
Comp., F-fan, R-fan, Heater : OFF
1) Time : 5 minutes
Comp. : ON
F/R-fan, Heater : OFF
Output control and time limit of each defrosting mode
PRE-COOL Heater Defrosting Pause
Fan
Delay
COMP ON OFF OFF ON
F-FAN ON OFF OFF OFF
R-FAN Co ntrol OFF OFF OFF
HEATER OFF ON OFF OFF
Time Limit 50 min.
80 min.
30 min.
(in case of D1-Error)
7 min. 5 min.
C-fan and comp.
are linked.
Pre-Cool
Heater
Defrosting
Pause
Fan Dela
