Daewoo FRS-2011 - ELECTRICAL COMPONENTS AND DIAGNOSTICS

OPERATION AND FUCTIONS
Contents Remark

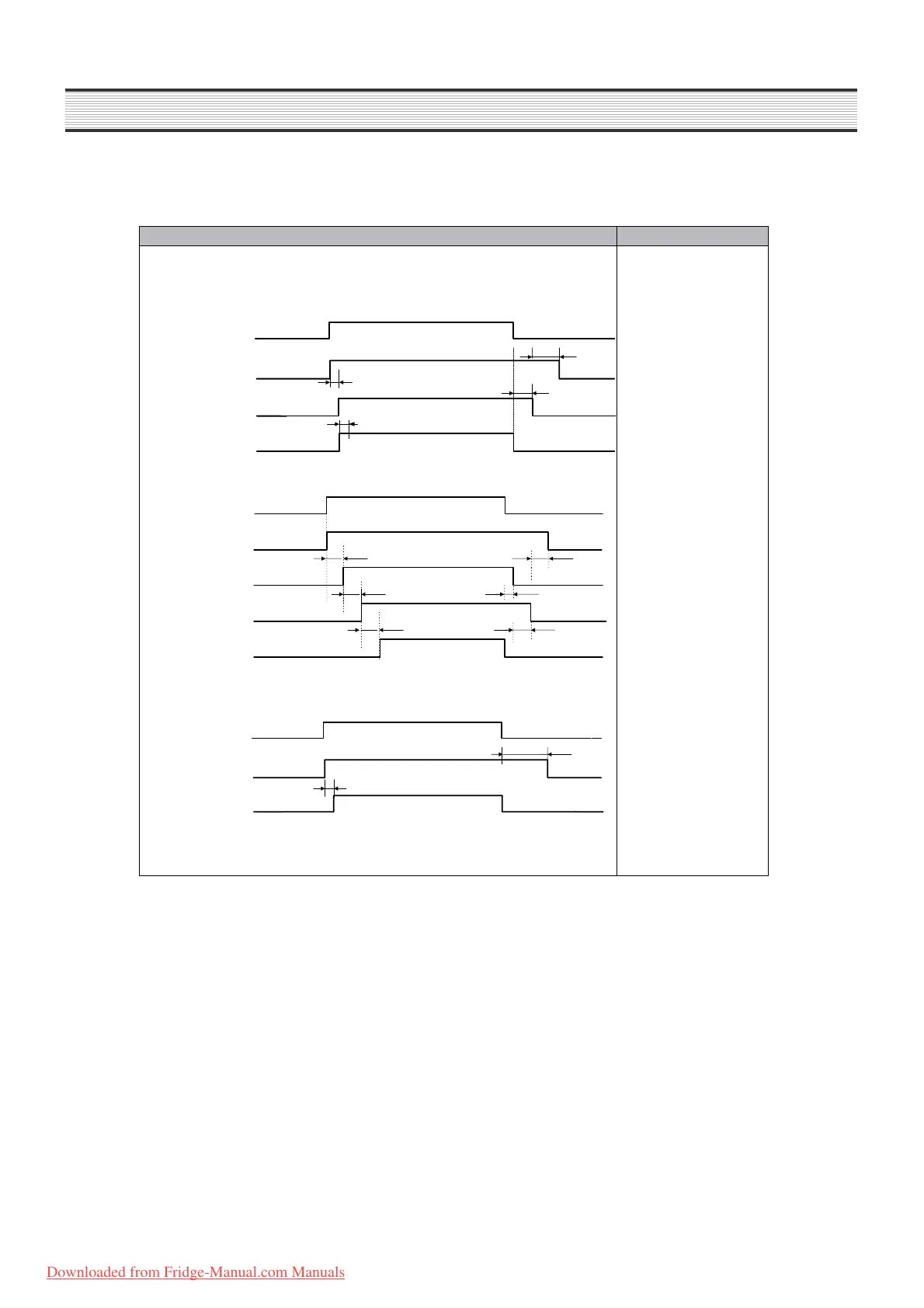

4) Control Flow & Timing Chart
4-1)Crushed Ice
D.P SW (In)D.P SW (In)
Crusher MotorCrusher Motor
D.P LampD.P Lamp
D.P S/V (Out)
D
A
A
C
4-2) Ice Cube
D.P SW (In)D.P SW (In)
D.P S/V(Flap) D.P S/V(Flap)
Cube S/V Cube S/V
Gear Motor Gear Motor
D.P LampD.P Lamp
A
C
A
A
B
D
4-3) Water
D.P LampD.P Lamp
D.P SW (In)D.P SW (In)
Water S/VWater S/V
D
A
Delay Time : A = 500ms, B = 500ms, C = 2.0s D = 5.0s
39
