Sensors

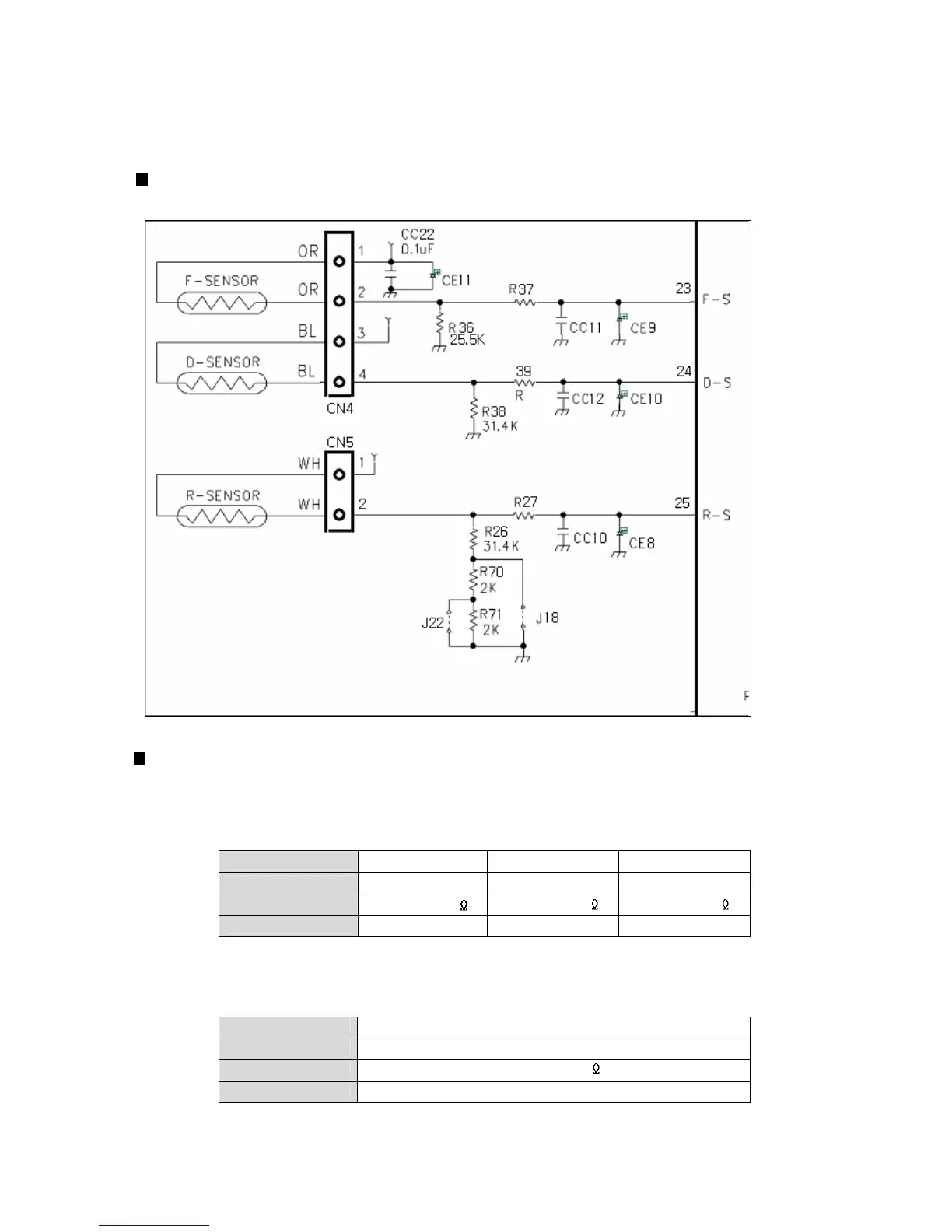

Circuit Diagram
Function of Each Sensor
[ F-sensor ]
1) It senses the temperature of freezer compartment and controls Comp., F-fan ON / OFF.
2) How it works ;
Working Point Low ON Mid OFF High OFF
Working Temp.
-11.0 C -20.0 C - 26.0 C
Resistance
14.74 k 22.33 k 30.92 k
Sensing Voltage
3.50 V 3.00 V 2.14 V
[ D-sensor ]
-> It senses return point of defrosting heater.
Working Point Return point of defrosting heater
Working Temp.
10 C
Resistance
19.53 k
Sensing Voltage
3.1 V
- 35 -
=
.
.
=
.
.
=
.
.
=
.
.
