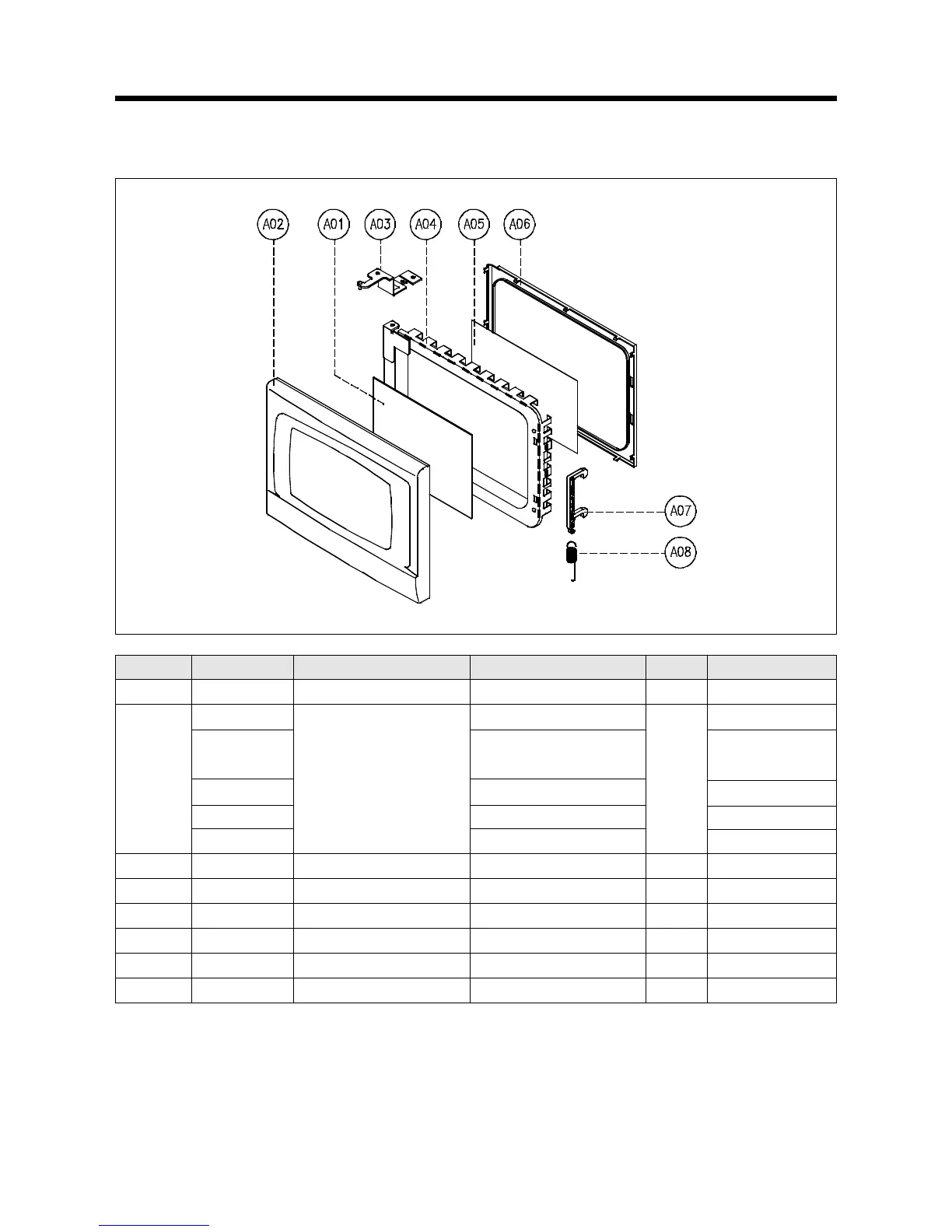

3. To remove door parts.
1)KOR-1A0A, 1A1G(H), 1A8Q, 1A9H
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3517005900 BARRIER SCREEN *O PET 1
3512204330 ABS XR-401 KOR-1A0A0A
3512204300 ABS XR-401
KOR-1A1G(H)0A
A02 1A1G(H)9A27
3512206070
FRAME DOOR
ABS XR-401 SPRAY 1
KOR-1A1H9A37 ONLY
3512204310 ABS XR-401 KOR-1A8Q0A
3512206040 HIPS SG-970 KOR-1A9H9A(27)
A03 3515202900 STOPPER HINGE *T AS KOR-121M0A 1
A04 3511711300 DOOR PAINTING AS KOR-1A1G0A 1
A05 3517005800 BARRIER SCREEN *I PE 1
A06 3512301900 GASKET DOOR PP 1
A07 3513100700 HOOK POM 1
A08 3515101900 SPRING HOOK PW1 1
(1) Remove the gasket door from door plate.
(2) Remove the barrier screen inner from door plate.
(3) Remove the door frame from door plate.
(4) Remove the stopper hinge top from door plate.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Reverse the above steps for reassembly.
