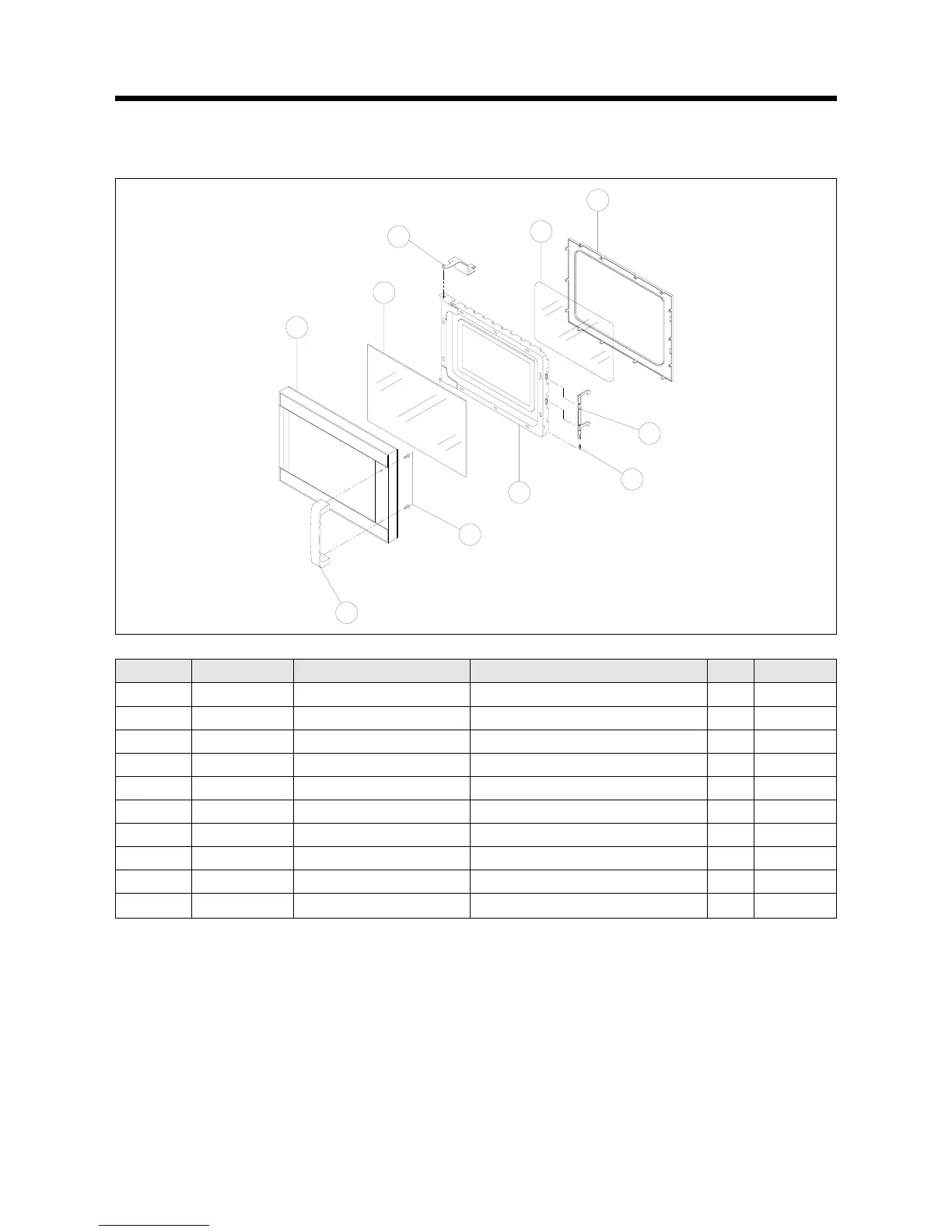

REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3511711300 DOOR PAINTING AS KOR-1A1G0A 1
A02 3513100730 HOOK POM 1
A03 3515101900 SPRING HOOK PW1 1
A04 3517005930 BARRIER-SCREEN * O GLASS T3.2 1
A05 3512204370 FRAME DOOR ABS XR-401 SR-0320G 1
A06 3515202900 STOPPER HINGE * T AS KOR-121M0A 1
A07 3512602700 HANDLE DOOR * U ABS XR-401 H-2938 1
A08 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 2
A09 3517005800 BARRIER-SCREEN * I PETP T0.1 1
A10 3512301900 GASKET DOOR PP 1
(1) Remove the gasket door from door plate.
(2) Remove the barrier screen inner from door plate.
(3) Remove the door frame from door plate.
(4) Remove the stopper hinge top from door plate.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Remove two screws holding the handle.
(8) Remove the handle from door frame.
(9) Reverse the above steps for reassembly.
