26

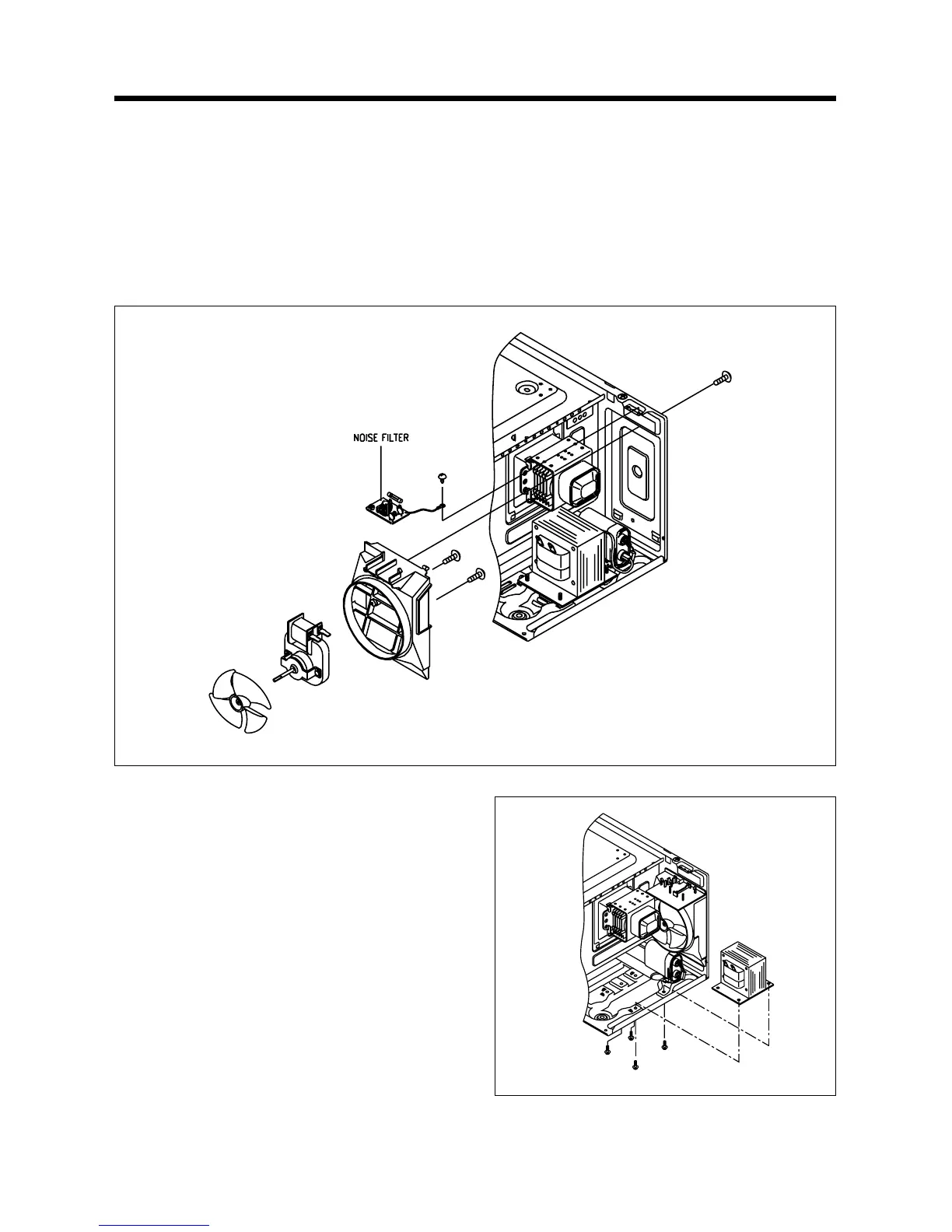

8. To remove wind guide assembly.
1) Remove a screw for earthing. (KOR-1A1G1A, KOR-1A7Q9D only)
2) Remove a screw which secure the wind guide assembly.
3) Draw forward the wind guide assembly.
4) Pull the fan from the motor shaft.
5) Remove two screws which secure the motor shaded pole.
6) Remove the motor shaded pole.
7) Reverse the above steps for reasembly.
9. To remove H.V.transformer.
1) Remove four screws holding the H.V.transformer.
2) Remove the H.V.transformer.
3) Reverse the above steps for reassembly.
