NO PART NAME PART CODE SPEC. Q TY

1 BOBBIN 3629200600 PP 1

2 TERMINAL OA 3628705800 “C2800S-H, T=0.5” 1

3 TERMINAL OB 3628705900 “C2800S-H, T=0.5” 1

4 CORD POWER 3621302500 250V 16A H05VVH2F TA-17 1

5 SUPPORTER 3625300100 PC LEXAN 500 1

6 SCREW TAPPING 7121301411 T2S PAN 3X14 MFZN 1

7 SHAFT REEL 3624900510 PC LEXAN 500 1

8 SPRING AS 3625102005 “SUS301-EH+COVER, 3800mm” 1

9 SCREW TAPPING 7121300811 T2S PAN 3X8 MFZN, VDE 3

10 BRACKET CR 3620601600 PC 1

11 TERMINAL Y AS 3628709500 Y TER+WIRE(BK) 1

12 TERMINAL Y AS

3628709400 Y TER+WIRE(WH), VDE 1

3628709410 Y TER+WIRE(WH), GENERAL 1

13 SCREW TAPPING 7121400611 T2S PAN 4X6 MFZN 2

14 PCB AS 3624307600 RC-300 230V/50Hz, VDE 1

15 SCREW TAPPING 7121401411 T2S PAN 4X14 MFZN 1

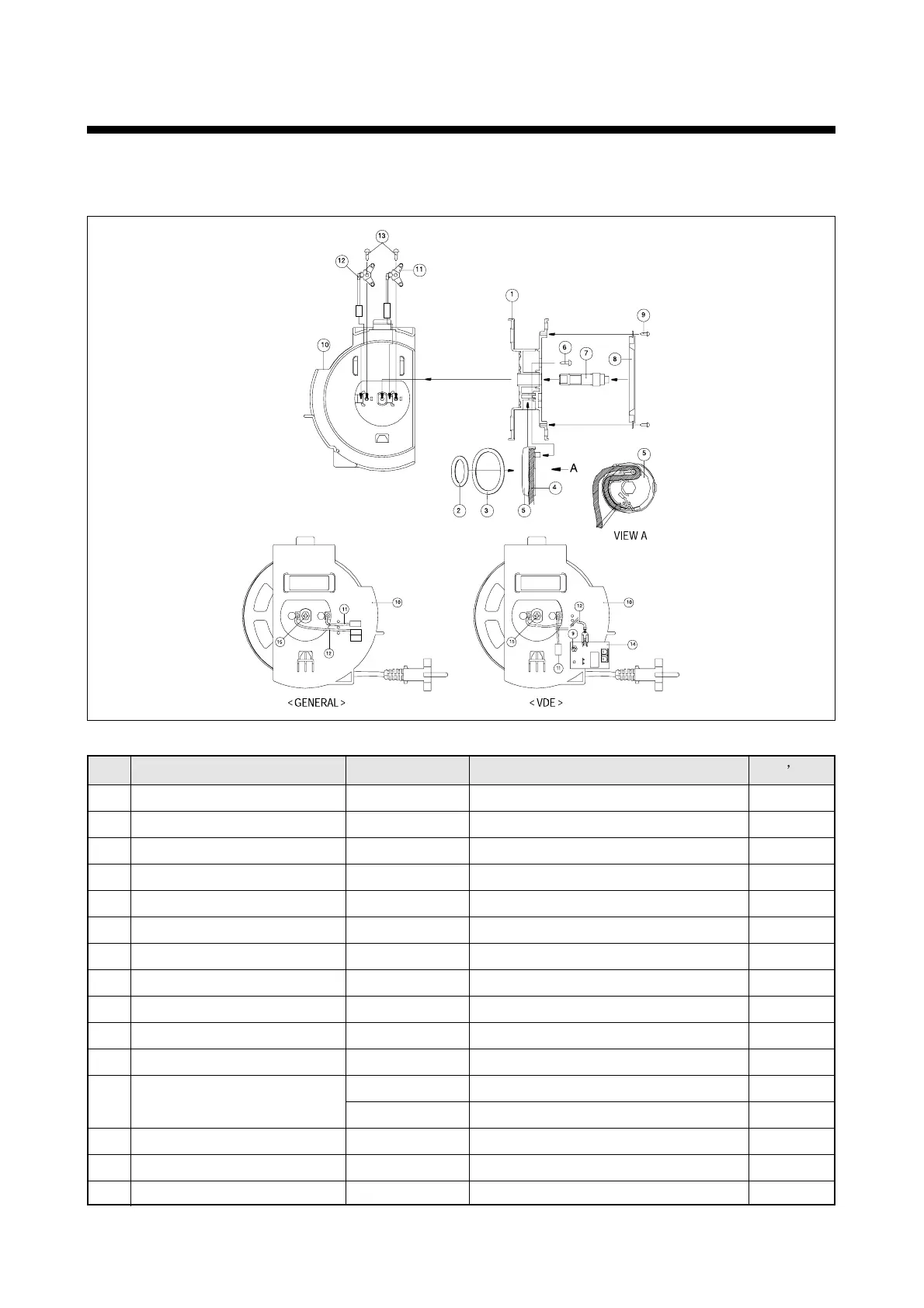

5-3. CORD REEL ASSEMBLY

Daewoo RC-300 Service Manual
