Daewoo SDA1775 - Electrical Information; Fitting a New Plug; Technical Data

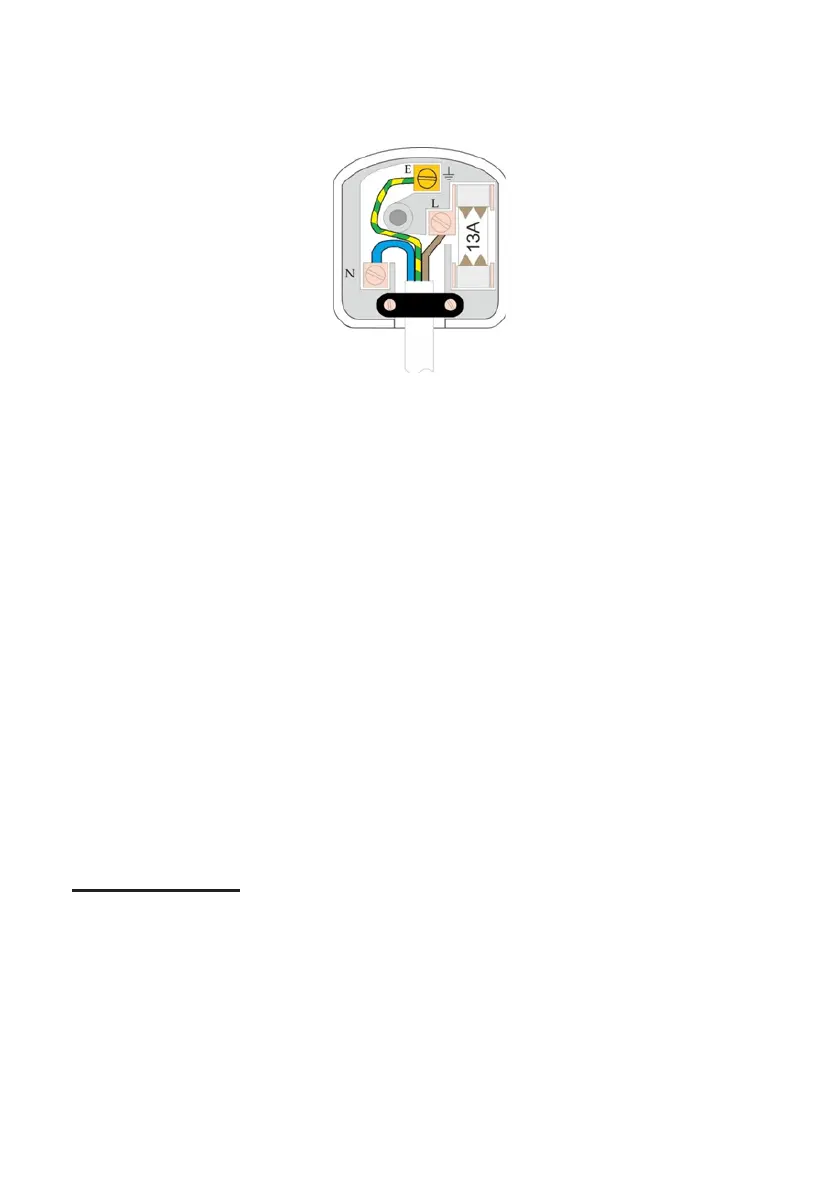

Connect Green
& Yellow to
Earth (E)
Connect Blue to
Neutral (N)
Connect Brown
to Live (L)
Ensure the outer sheath of
the mains lead is securely
held by the cable clamp
• The Blue wire must be connected to the terminal marked N or
coloured Black.
• The Brown wire must be connected to the terminal marked L
or coloured Red.
• The Green and Yellow wire must be connected to the terminal
marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the
plug.
• Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved
fuses.
• If you are in any way unsure which plug or fuse to use, always
refer to a qualied electrician.
• After replacing or changing a fuse on a moulded plug, the
cover must be retted to the plug; the appliance must not be
used without a fuse cover.
Technical Data
Voltage : 220-240V
Rated power : 3000W
Capacity : 1.7Litre
Model Number : SDA1775
