3
CF65/75/85 series Removal and installation
MECHANICAL GEARBOX CONTROL
3-13
3.6 REMOVAL AND INSTALLATION, CONTROL ROD BALL JOINT
Note:
Ensure that the section of the control rod in
which the ball joint is fitted is well supported
when the ball is being forced on or off. This will
prevent deformation of the control rod. The
clamping of a newly mounted press-on ball will
also be guaranteed.
If the control rod is deformed in any
way, it should be replaced.
Ball joints which have been used
previously must on no account be
used again.

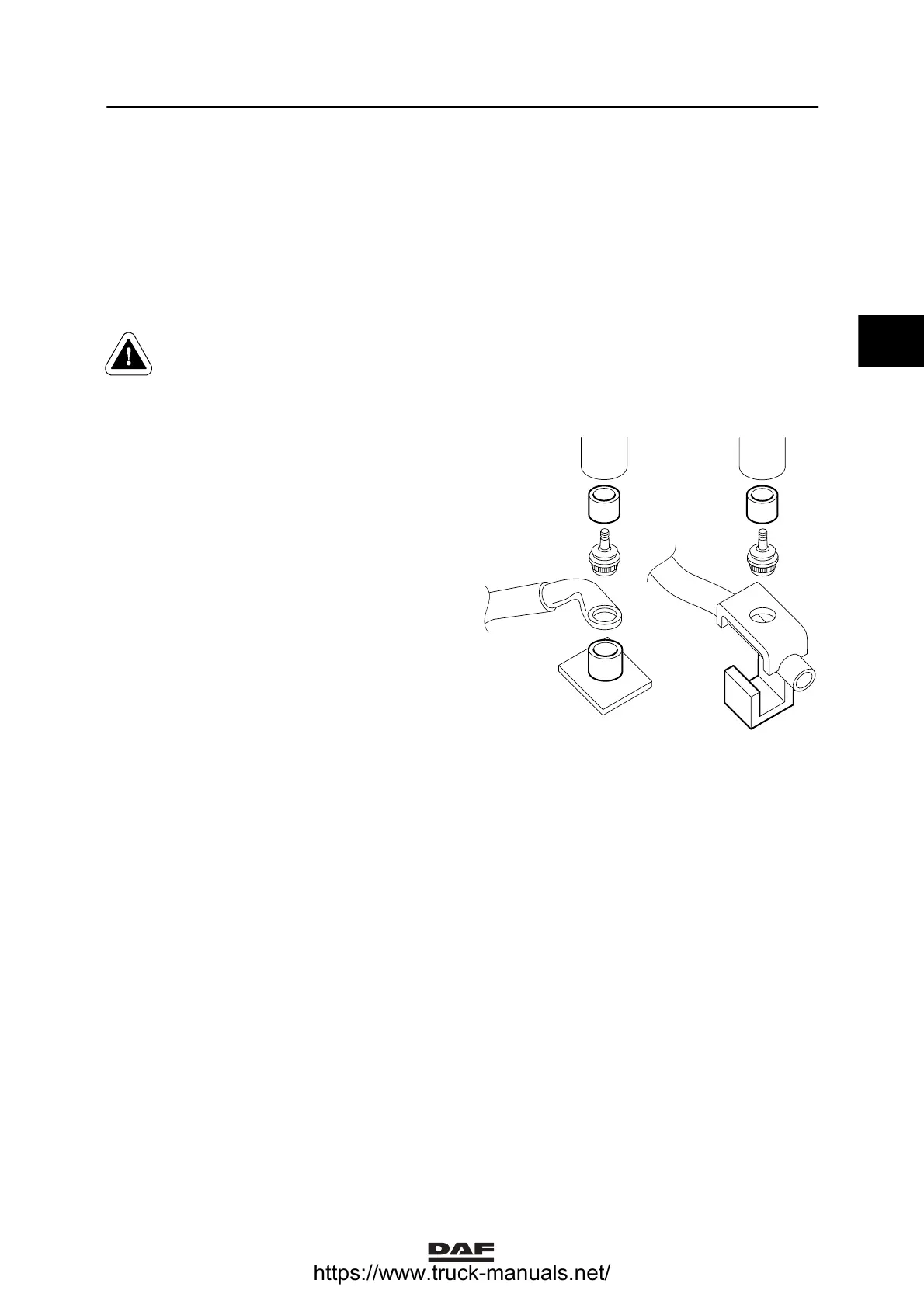

Removing the control rod ball joint
1. Remove the control rod. See “Removal and
installation”.
2. Using evenly-distributed force, remove the
ball joint from the control rod.
Installing the control rod ball joint
1. Clean the surfaces to be bonded and
degrease them.
2. Apply glue to the bonding surface of the
knurled edge of the ball joint. See
“Technical data”.
3. Using evenly-distributed force, fit the ball
joint onto the control rod.
Note:
Make sure that the part being pushed on to
the control rod receives proper support.
4. Fit the control rod. See “Removal and
installation”.
5. Check that all switches function properly,
from a mechanical point of view.
V300408
2
ᓻ 0111
