MECHANICAL GEARBOX CONTROL
Removal and installation CF65/75/85 series
3-12

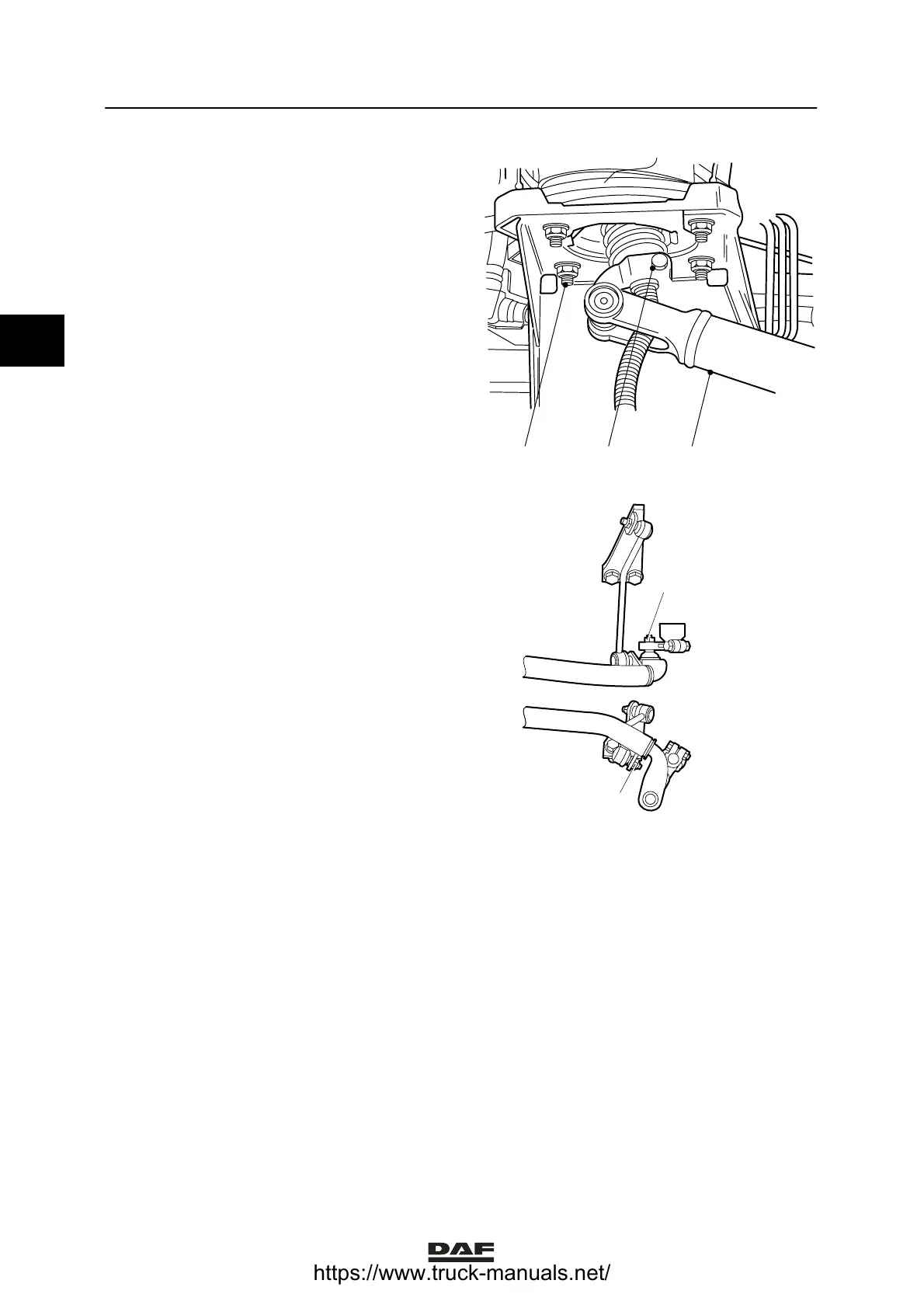

Installing the control rod
1. Position the control rod.
2. Fit the control rod (2) onto the gear lever
unit and hand tighten the clamping bolt (1).
For the required torque, see “Technical
data”.
3. Fit the torque rod to the control rod and
tighten the ball joint lock nut (4) to the
specified tightening torque.
4. Check that the gearbox is in neutral.
5. Position the gear lever exactly in position A.
See “Technical data”.
6. Fit the control rod with the ball joint on the
lever of the selector shaft.
7. Tighten the castle nut (5) to the specified
torque. See “Technical data”. Place a split
pin on the castle nut.
8. Check that all switches, both mechanical
and pneumatic, function properly.
