CF65/75/85 series Description of components
PNEUMATICALLY ASSISTED GEARBOX CONTROL
(SERVOSHIFT)
2-1
2. DESCRIPTION OF COMPONENTS

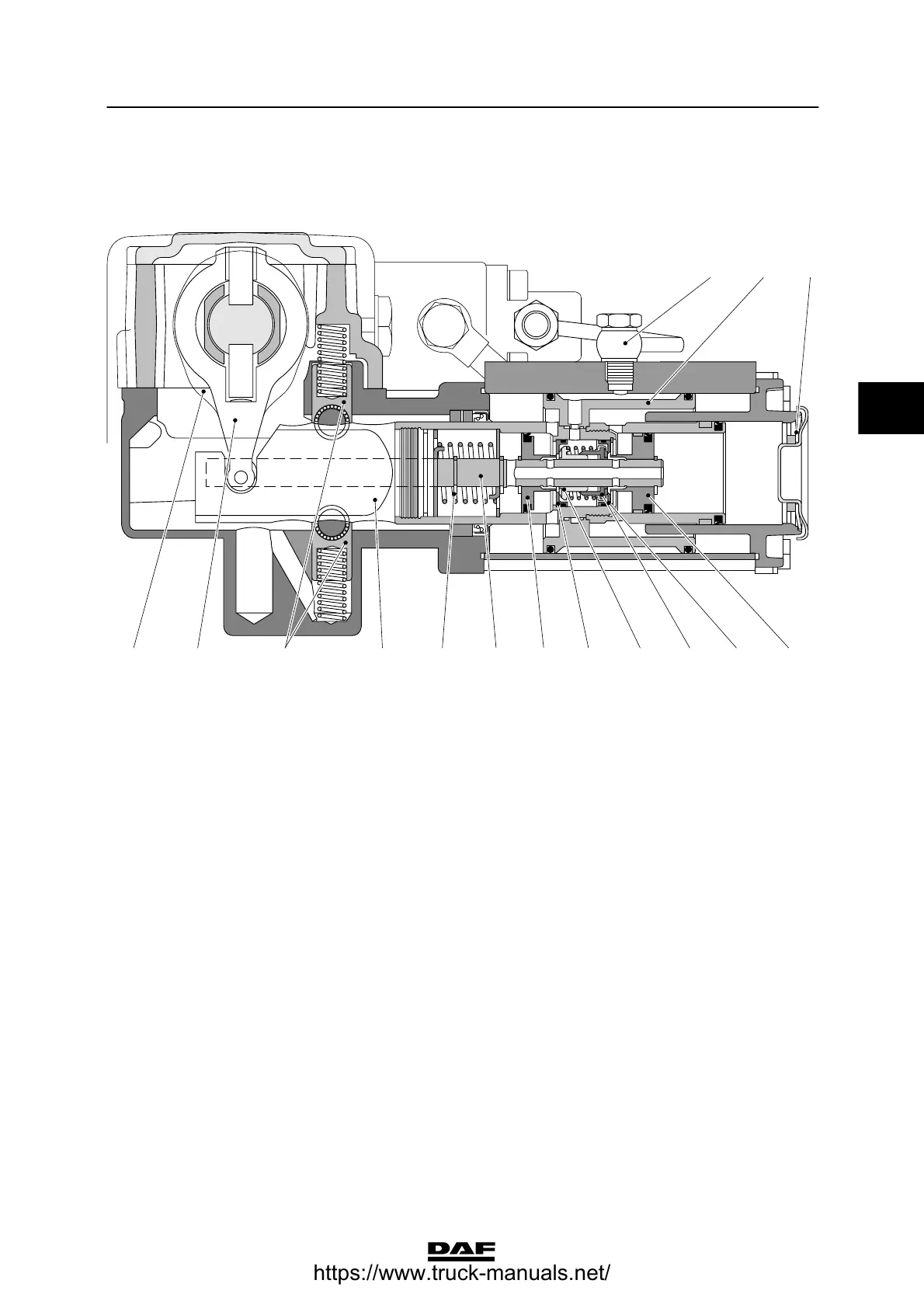

2.1 SERVOSHIFT UNIT OPERATION
15 14 1213 11 10 9 8 7 6 5 4
321
V300335
1. Supply pressure connection (circuit 4)
2. Operating piston
3. Venting valve
4. Selector valve for operating piston, 1
st
,3
rd
,
5
th
, 7th gear
5. Valve seat, 1
st
,3
rd
,5
th
, 7th gear
6. Valve, 1
st
,3
rd
,5
th
,7
th
gear
7. Valve, 2
st
,4
rd
,6
th
,8
th
gear
8. Valve seat, 2
nd
,4
th
,6
th
,8
th
gear
9. Selector valve for operating piston, 2
nd
,4
th
,
6
th
,8
th
gear
10. Piston selector valve
11. Selector valve spring
12. Servo-operating shaft
13. Retaining elements
14. Servo-lever
15. Selector valve lever
ᓻ 200337
3
