3. REMOVAL AND INSTALLATION
3.1 REMOVAL AND INSTALLATION, SERVOSHIFT UNIT

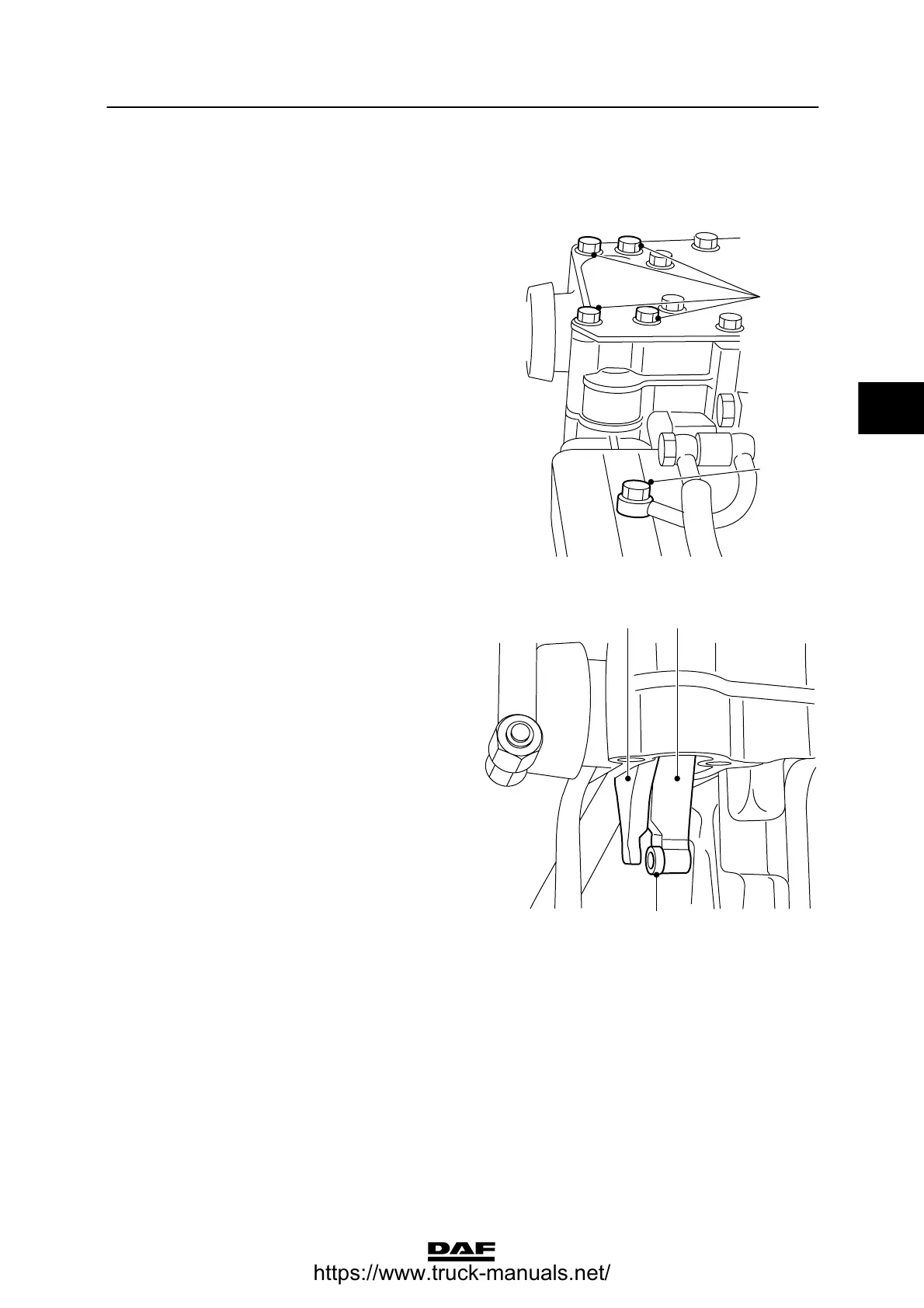

Removing Servoshift unit
1. Ensure that the air pipe (1) is pressureless
before the banjo bolt is removed.
2. Remove the banjo bolt from the air pipe (1)
and plug the connection on the unit so that
no dirt can enter.
Note:
While removing the Servoshift unit from the
selector shaft housing, a small amount of oil will
escape.
3. Remove the four attachment bolts (2) of the
Servoshift unit and remove the unit.
V300328
2
1
Note:
Be aware of the ring (3), which is placed loose
on the selector valve lever.
V300327
1 2
3
3
ᓻ 200337
