4.4 REMOVAL AND INSTALLATION, GEARBOX FRONT COVER SEALING RING
Removing the gearbox front cover oil seal
1. Remove the gearbox.
2. Remove the release mechanism assembly
with fork and thrust bearing.

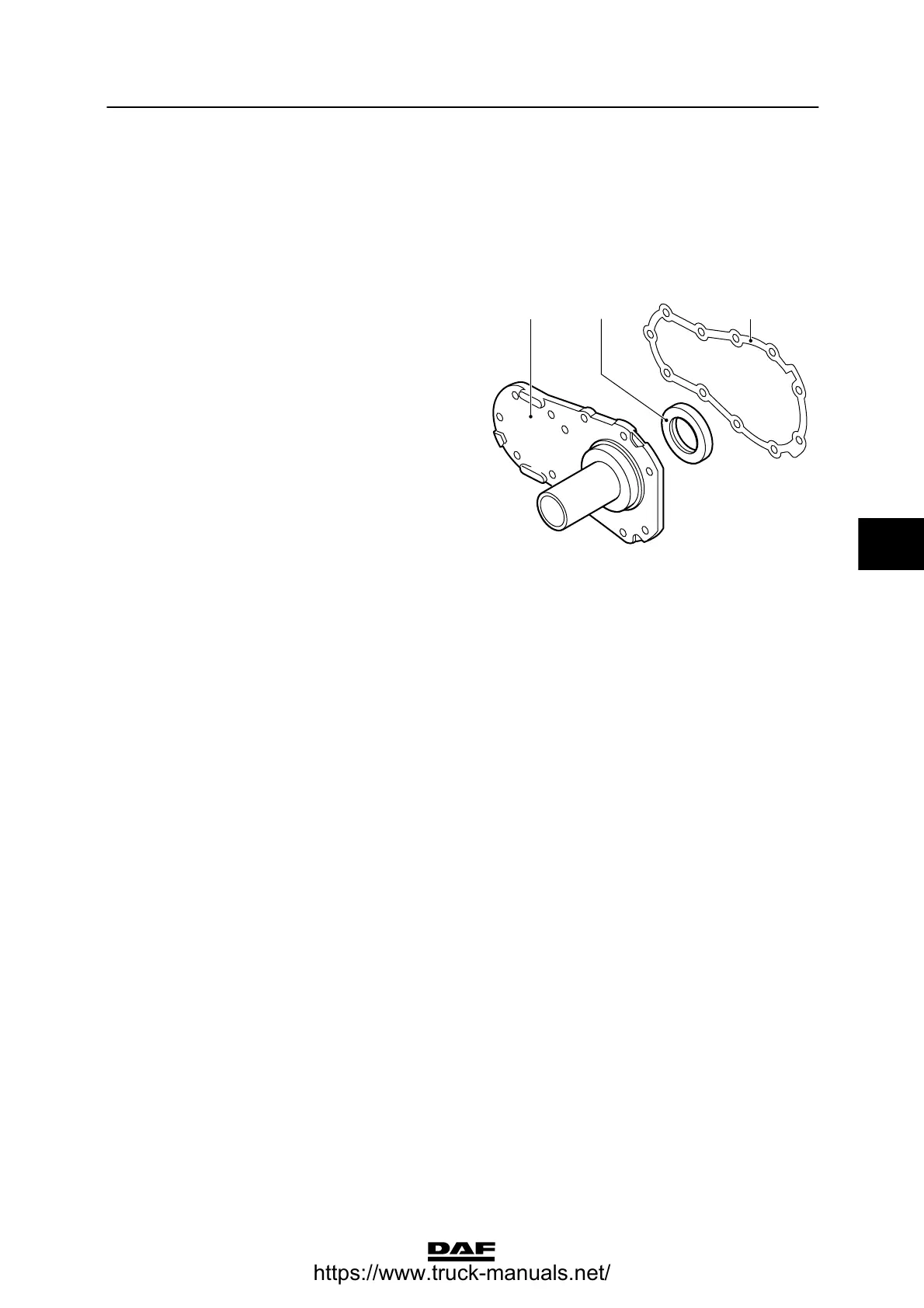

3. Remove the attachment bolts from the
gearbox front cover (1). Remove the
gearbox front cover from the input shaft.
Keep the filler plates of the input shaft and
the secondary shaft.
4. Remove the oil seal (2) from the gearbox
front cover.
Installing the gearbox front cover oil seal
1. Apply small amount of sealant to the oil
seals fitted with a steel sleeve on the
outside. Apply a rubber coating to the oil
seals’ exterior and apply green soap
sparingly.
2. Fit the oil seal (2) to the gearbox front cover
using special tools (DAF Nos. 0499809 and
0484924). Fit a new gasket (3).
3. Check the input shaft axial play. See
“Inspection and adjustment”.
4. Install the gearbox front cover (1). Tighten
the attachment bolts to the specified torque.
See “Technical data”.
5. Install the release mechanism on the
gearbox. Tighten the attachment bolts to the
specified torque. See “Technical data”.
6. Fit the gearbox.
