ZF 6S-850 GEARBOX
Removal and installation, gearbox CF65/75/85 series
4-6
4.5 REMOVAL AND INSTALLATION, SELECTOR SHAFT OIL SEAL
LHD version
Removing the selector shaft oil seal

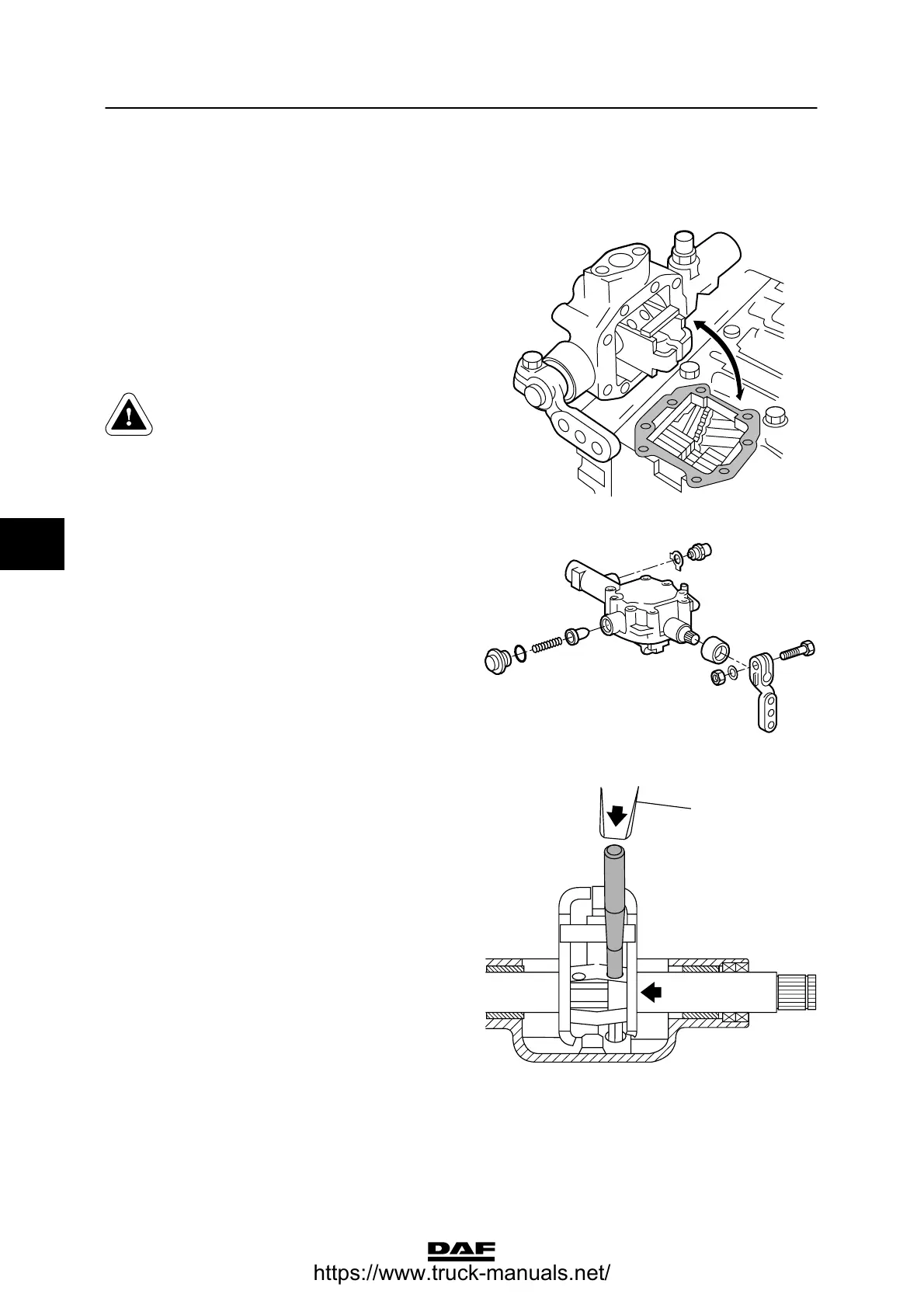

1. Mark the gearbox lever relative to the
selector shaft and remove the control lever
with the gearbox control. If necessary,
disconnect the torque rod.
2. Remove the selector shaft housing
attachment bolts and remove the complete
selector shaft housing from the gearbox.
Seal the gearbox opening, so that
no dirt can enter.
3. Remove the locking pin and control stop
from the selector shaft housing.
4. Drive two spring pins from the selector
fingers. Turn the selector fingers so that the
springpinscanbedrivenintoaslotinthe
cover.
5. Remove the circlip and the springs from the
rear of the cover. Then remove the selector
fingers from the cover.
V3 00 398
V3 00 399
W 3 03 052
