ZF 8/9/16S-109 GEARBOX
Inspection and adjustment CF65/75/85 series
3-2
3.2 INSPECTION AND ADJUSTMENT, INPUT SHAFT BEARING AXIAL
CLEARANCE
Inspection and adjustment, input shaft
bearing axial play
1. Remove the gearbox. See “Removal and
installation”.
2. Remove the gearbox front cover attachment
bolts and slide the cover off the input shaft.

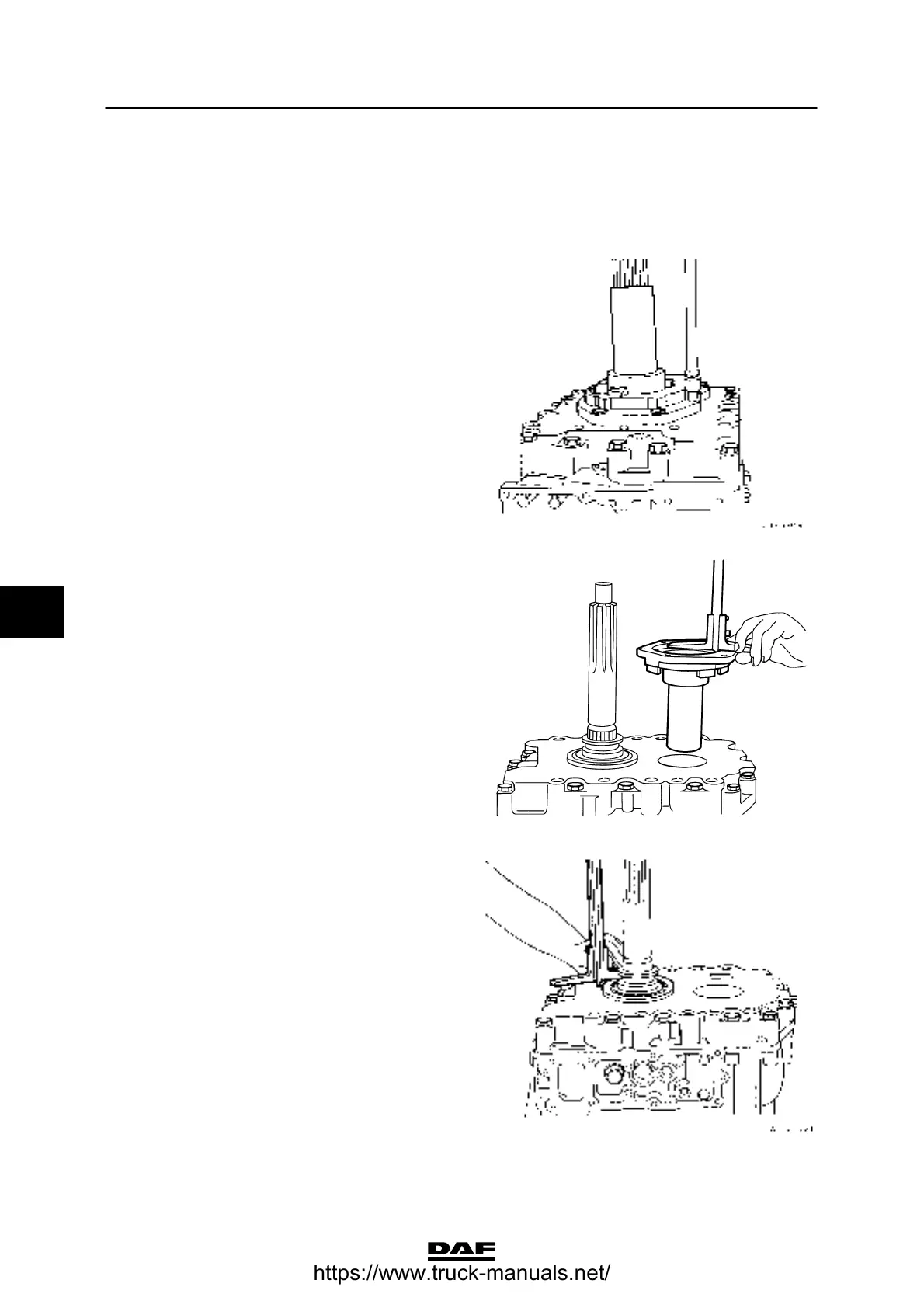

3. Use a depth gauge to determine the depth
of the recess in the gearbox front cover.
Make a note of this measurement.
4. Install a new gasket in the gearbox housing.
Using a depth gauge, measure the height
that the ball bearing protrudes above the
gearbox housing and deduct this
measurement from the measurement taken
in point 3.
5. Calculate the axial play.
Compare the calculated value with the
maximum allowable axial play. See
“Technical data”.
W303022
ᓻ 0111
6
