3
CF65/75/85 series Inspection and adjustment
ZF 8/9/16S-109 GEARBOX
3-3
6. If necessary, adjust the axial play by means
of another adjusting ring.

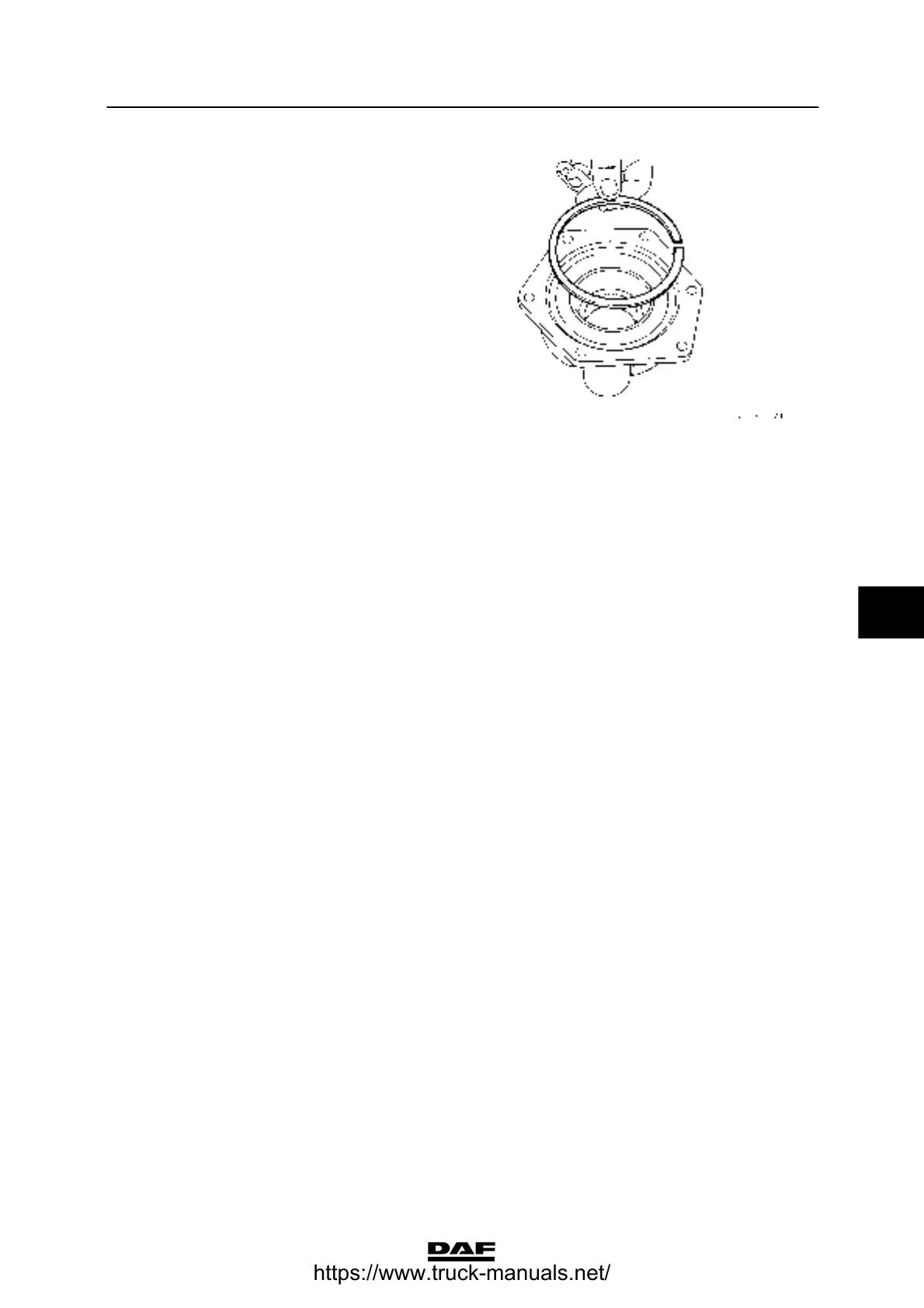

7. Install a new gasket and the adjusting ring
into the gearbox front cover and fit it to the
gearbox.
8. Install the attachment bolts and tighten
them to the specified torque. See “Technical
data”.
9. Fit the gearbox. See “Removal and
installation”.
ᓻ 0111
6
