ZF 8/9/16S-109 GEARBOX
Inspection and adjustment CF65/75/85 series
3-4
3.3 INSPECTION AND ADJUSTMENT, GEARBOX OUTPUT SHAFT BEARING
AXIAL CLEARANCE
Inspection and adjustment, output shaft
bearing axial play
1. Remove the rear gearbox bearing cover.
2. Install a new gasket on the bearing cover.

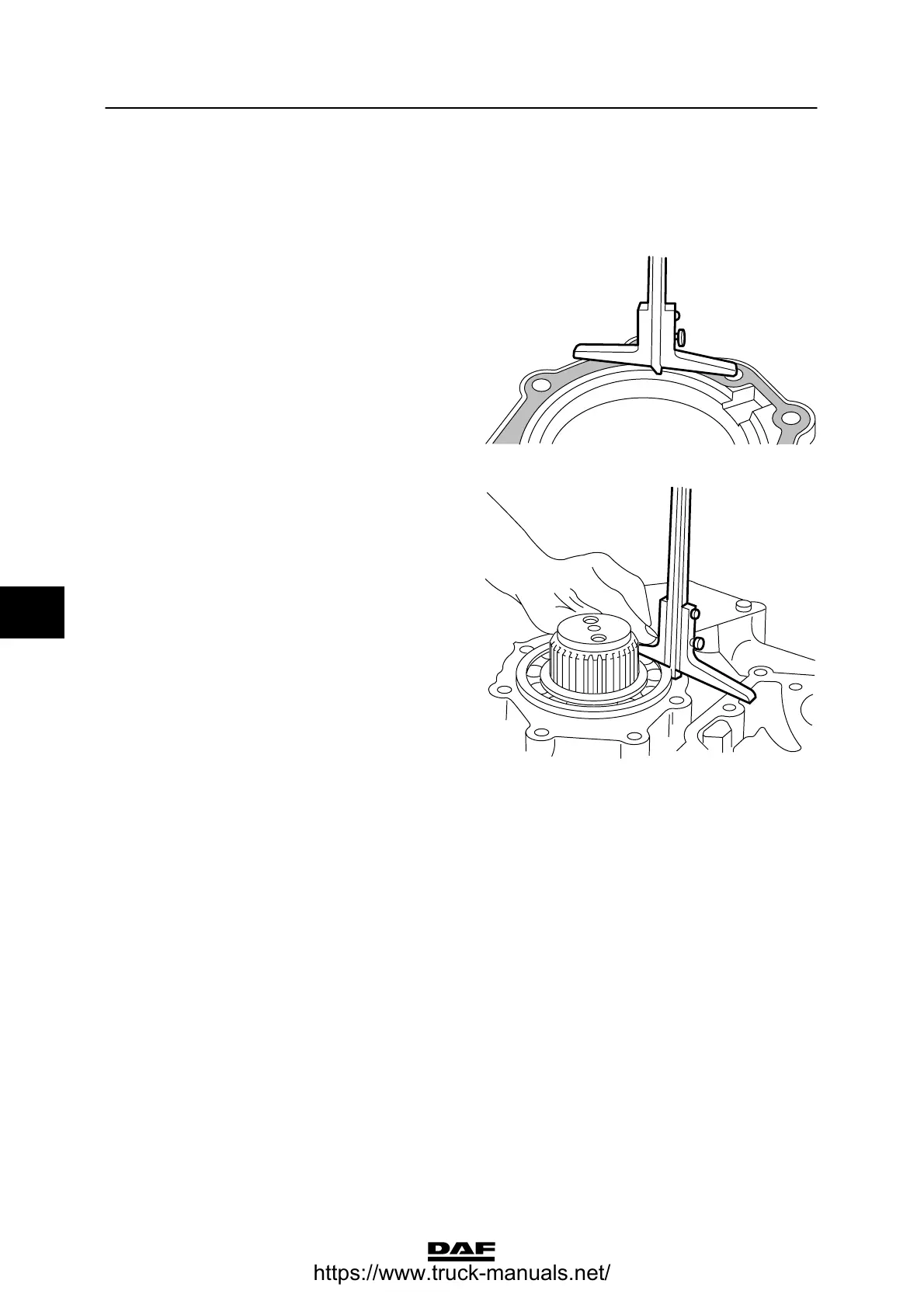

3. Use a depth gauge to determine the depth
of the bearing cover recess, distance A.
4. Use a depth gauge to determine the height
the ball bearing protrudes above the
gearbox housing, distance B.
5. Calculate the axial play.
6. The axial play equals distance A --
distance B.
7. Compare the calculated value with the
maximum allowable axial play. See
“Technical data”.
8. If necessary, adjust the axial play by means
of another adjusting ring.
A
V300227
V300216
B
6
