3
CF65/75/85 series Inspection and adjustment
ZF 8/9/16S-109 GEARBOX
3-5

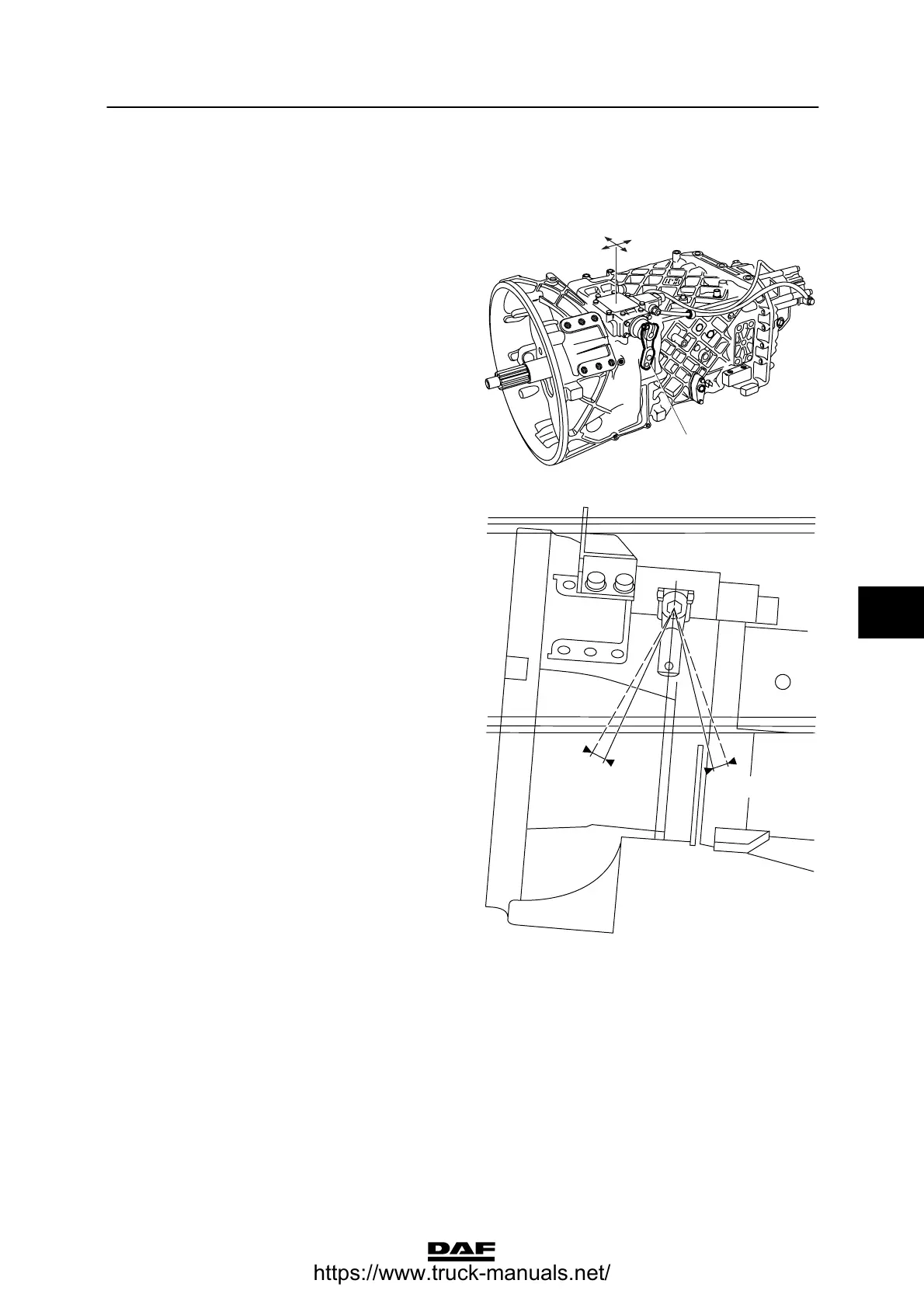

3.4 INSPECTION AND ADJUSTMENT, SELECTOR SHAFT HOUSING ON
GEARBOX
Inspection of selector shaft housing on
gearbox
1. Slacken the shift control from the lever (1).
2. Check in 5
th
and 6
th
gear how far the
lever (1) can still be pressed through. The
transfer (P) should be identical in both
gears.
Adjustment of selector shaft housing on
gearbox
Note:
If the transfer (P) is different, carry out the
following procedure.
1. Slacken the attachment bolts of the selector
housing slightly.
2. Shift the selector housing forwards or
backwards as such that this transfer is
identical in both gears (direction A-A).
3. Then repeat point 2 for the 7
th
and 8
th
gears.
4. If 1
st
or 2
nd
gear cannot be engaged, the
selector housing must be shifted
transversely (direction B-B).
5. Tighten the selector housing attachment
bolts.
6. Check by hand whether the selector shaft
will lightly and easily spring back into its rest
position.
7. Check that the travel is about the same in
all gears.
8. Repeat the entire procedure, if necessary.
Note:
Foranimprovedretentionitispossibletofit
a heavier retaining spring (191N instead of
168N) (DAF No. 1341343).
9. Fit the shift control.
V300257
1
A
A
B
B
P
P
6/8th gear
5/7th gear
V300258
6
ᓻ 0111
