CF65/75/85 series Removal and installation, gearbox
ZF 8/9/16S-109 GEARBOX
4-1
4. REMOVAL AND INSTALLATION, GEARBOX
4.1 REMOVAL AND INSTALLATION , ENTIRE GEARBOX
Removing the entire gearbox
1. Make sure there are no loose items in the
cab. Tilt the cab.
2. Disconnect the negative terminal of the
battery.
3. Disconnect the prop shaft and flange from
the gearbox.
4. Remove the clutch servo without
disconnecting the pipes.
5. Disconnect the tachometer connection from
the gearbox.
6. Disconnect the gearbox wiring harness
connector.
7. Remove the various air pipes. Pipes that
are not recognisable must be marked.
8. Disconnect the selector rod from the
operating lever and the torque rod bracket
from the gearbox. Hang the gearbox control
on the chassis.
9. Remove the exhaust pipe between the
engine brake and silencer (depending on
the vehicle type).
10. Place a jack under the gearbox and remove
the bolts around the clutch housing.
11. Use the jack to pull the gearbox from the
engine and remove the gearbox.

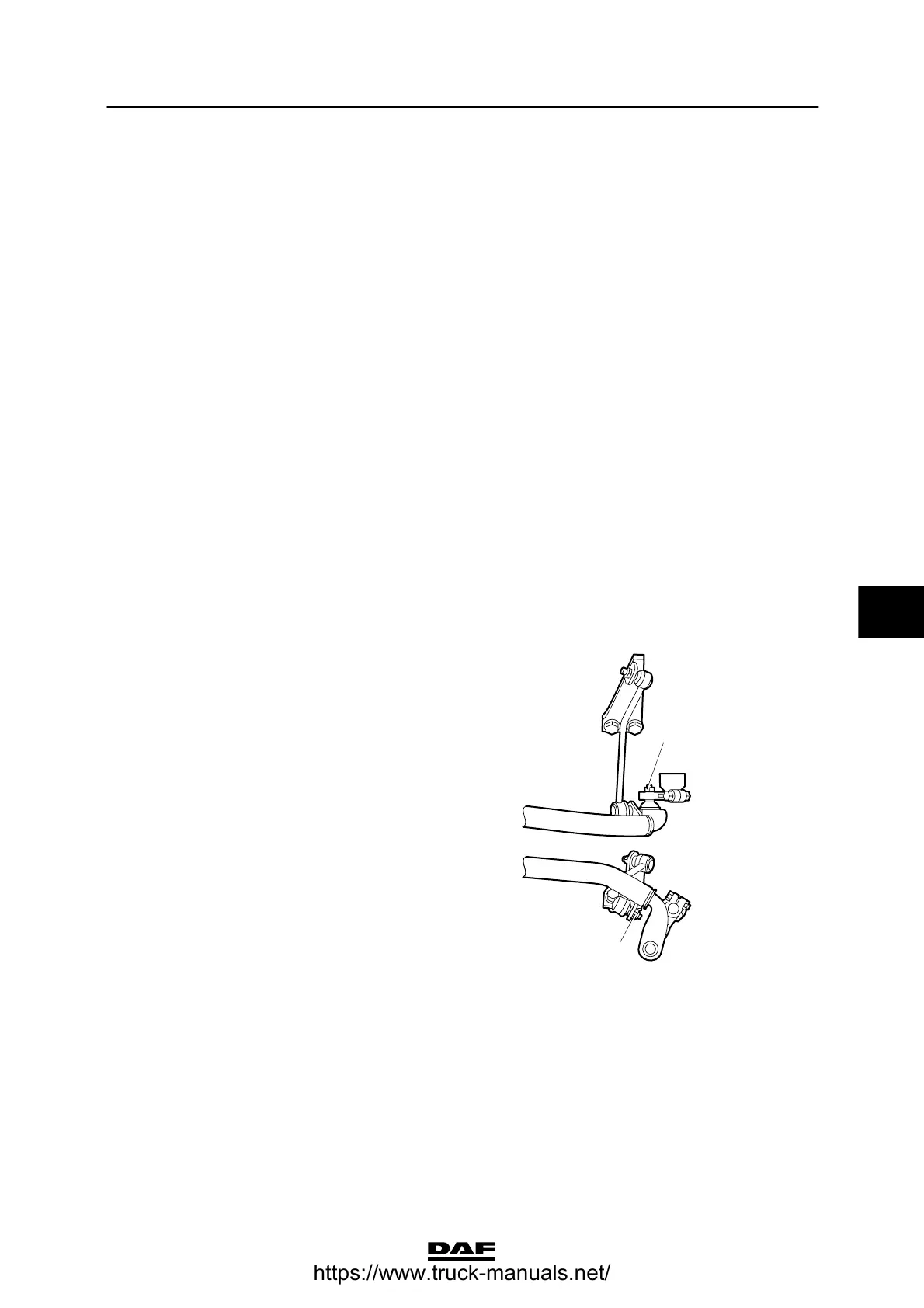

V300407
4
5
6
