3
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
Removal and installation of gearbox CF65/75/85 series
4-4

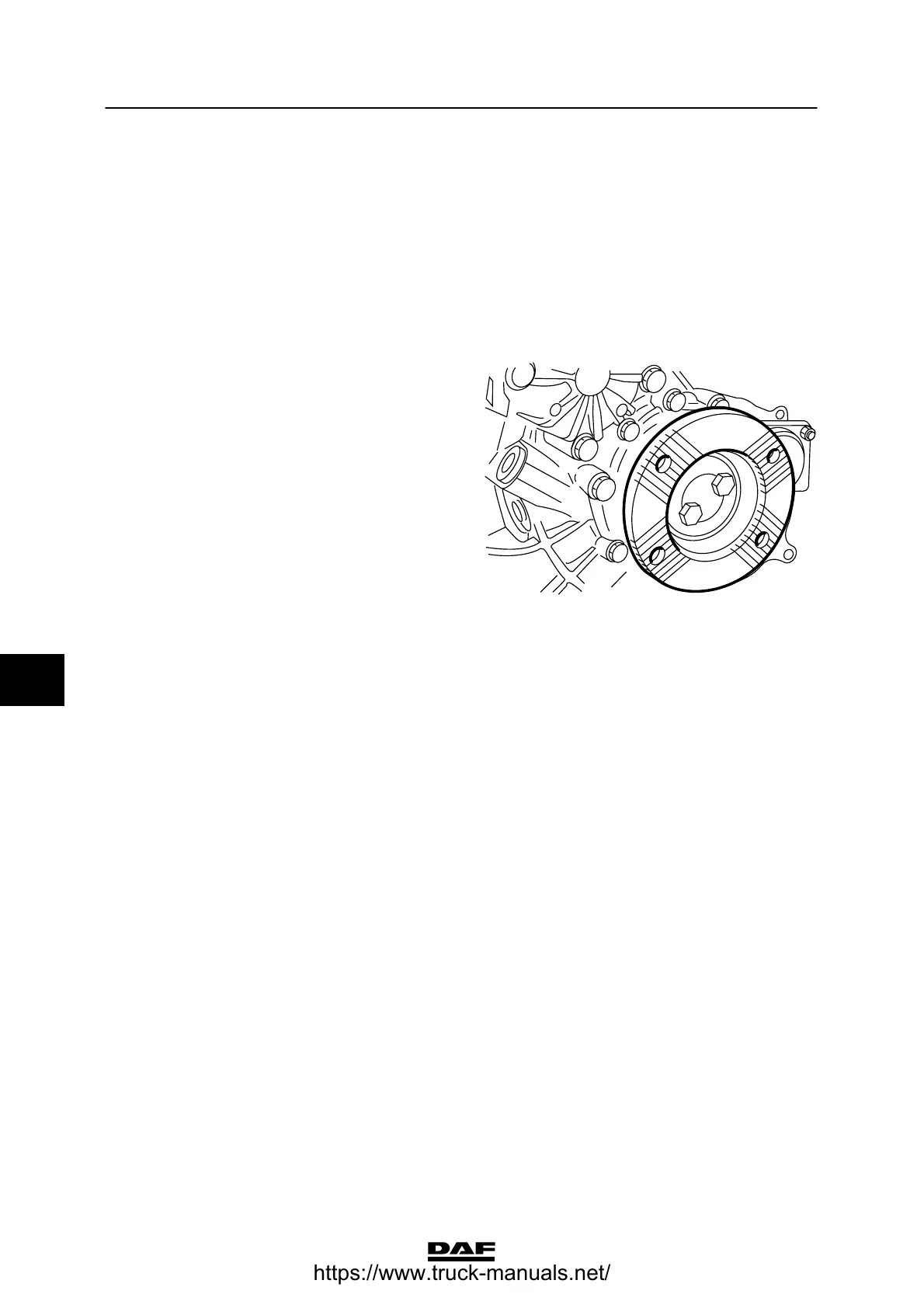

4.2 REMOVAL AND INSTALLATION, PROP SHAFT FLANGE
Removing prop shaft flange
1. Remove the prop shaft from the gearbox
flange and hang it on the chassis.
2. Hold the prop shaft flange in place with the
special tool (DAF No. 0484977).
3. Remove the attachment bolts from the prop
shaft flange.
4. Remove the bolts and locking plate from the
prop shaft flange.
5. Note:
Measure and make a note of the distance
from the prop shaft flange to the shaft. The
same distance must be observed when the
prop shaft flange is reinstalled.
Remove the prop shaft flange and O-ring
using a commercially available puller.
Fitting prop shaft flange
1. Lightly oil the oil seal in the bearing cover.
2. Heat the prop shaft flange to 70_C. Slide it
as far as possible onto the output shaft. Use
the locking plate and two standard bolts
(M12x75) to pull the prop shaft flange
further onto the shaft.
3. Remove the standard bolts and measure
whether the prop shaft flange has reached
the correct position on the output shaft.
4. Fit a new O-ring into the recess between
the output shaft and the prop shaft flange.
V300449
7
ᓻ 200337
