CF65/75/85 series Removal and installation of gearbox
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
4-5

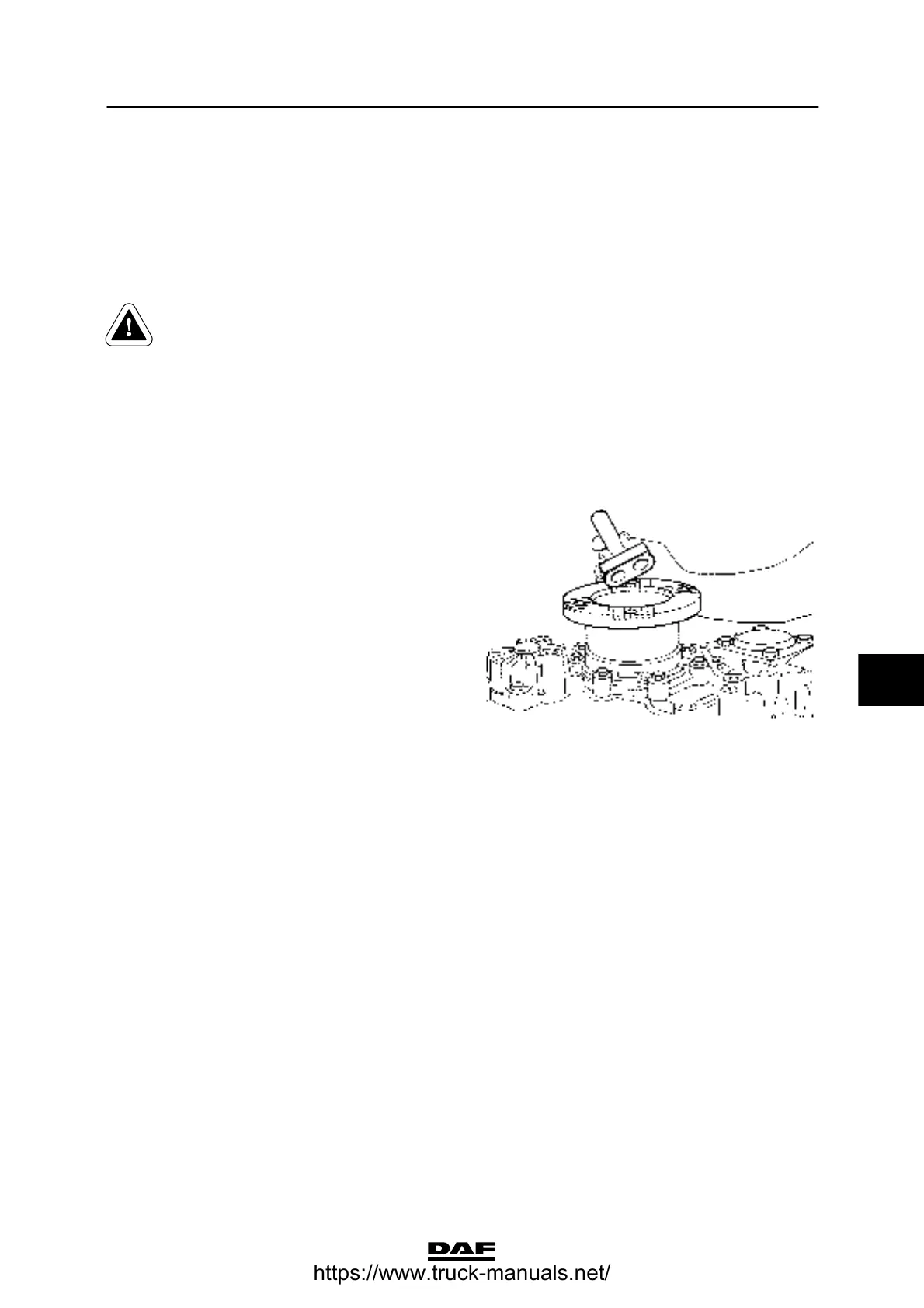

5. Hold the prop shaft flange in place with the
special tool (DAF No. 0484977).
Note:
For the new gearboxes the attachment bolts
are no longer locked with a locking plate,
but with self-locking screw thread in the
output shaft.
When the prop shaft flange is
removed during overhaul, the bolts
must always be locked afterwards
with a locking plate.
6. Note:
Bolts that will be re-used must be cleaned
and lightly oiled.
Tighten the attachment bolts to the
specified torque. See “Technical data”.
7. Fit a new locking plate with stamp over the
bolt heads.
Note:
The following locking plates can be used to
lock the prop shaft flange:
Gearbox DAF No. Locking plate
8/16S-151 0696098
8/16S-181 1227599
16S-221 1227599
8. Attach the prop shaft.
7
ᓻ 200337
