3
CF65/75/85 series Removal and installation, gearbox
EATON FS/6309A GEARBOX
3-9

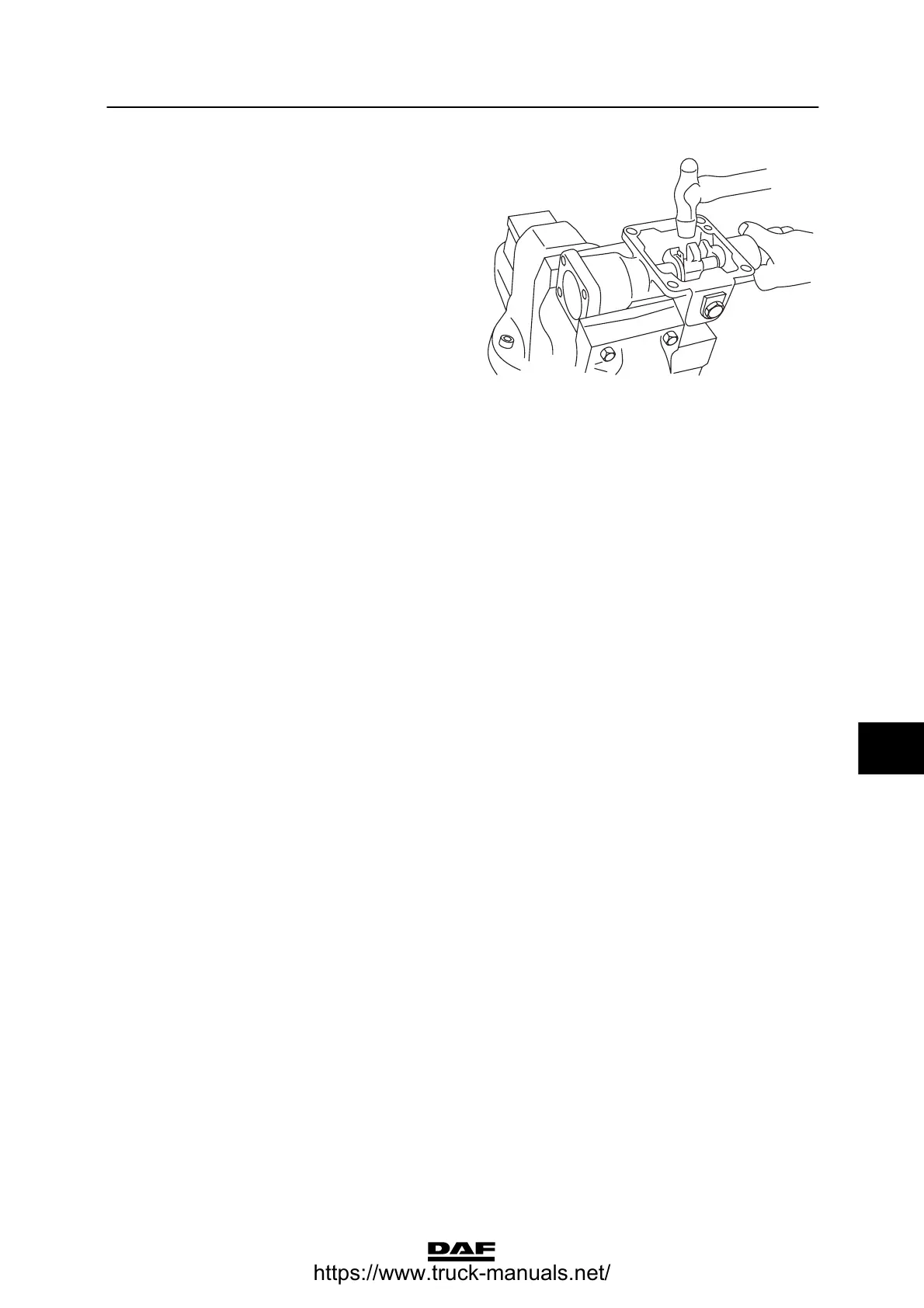

4. Fit a new pin (19).
Make sure that the holes in the selector
finger and the selector shaft are aligned.
5. Fit the circlip (10) and a spring holder (11)
onto the selector shaft.
6. Fit the springs (12), a spring holder (11) and
the circlip (13) onto the selector shaft.
7. Put a new gasket in the end cover (14) and
attach the cover. Tighten the attachment
bolts to the specified torque. See “Technical
data”.
8. Fit the retaining pin (7) and put a new
gasket in the retaining cover (5) before
fitting that as well. Tighten the attachment
bolts to the specified torque. See “Technical
data”.
9. Fit the rubber sleeve (2).
10. Install the bleeder (20) and tighten to the
specified torque. See “Technical data”.
11. Fit the bleed control valve and pin (16) and
tighten to the specified torque. See
“Technical data”.
12. Fasten the selector shaft housing to the
gearbox using the specified locking
compound.
13. Tighten the attachment bolts to the
specified torque. See “Technical data”.
14. Adjust the gearbox control and fit the
selector shaft lever. See “Inspection and
adjustment”.
V3 00 514
8
ᓻ 0111
