CF65/75/85 series General
CLUTCH
2-7

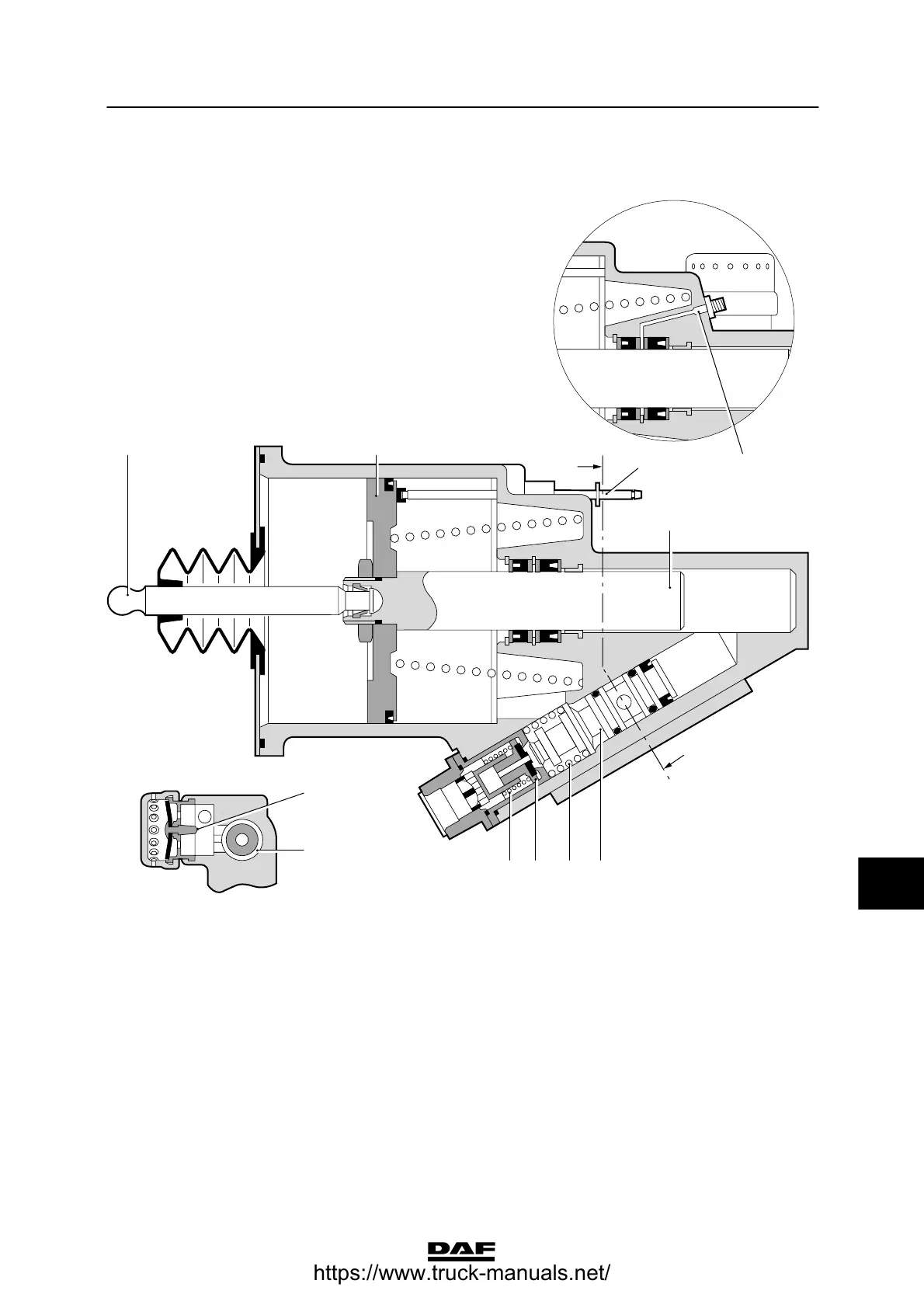

2.4 OVERVIEW DRAWING, CF75/85 CLUTCH SERVO
A
A
8
3 2 7 1
6
10
5
11
4
9
V300412
Cross-section A - A
1. Servo piston
2. Air valve
3. Spring
4. Pressure pin
5. Air piston
6. Fluid piston
7. Pressure spring
8. Bleed bore
9. Bleed
10. Vent opening
11. Wear indicator
10
ᓻ 200337
