3
CLUTCH
General CF65/75/85 series
2-8

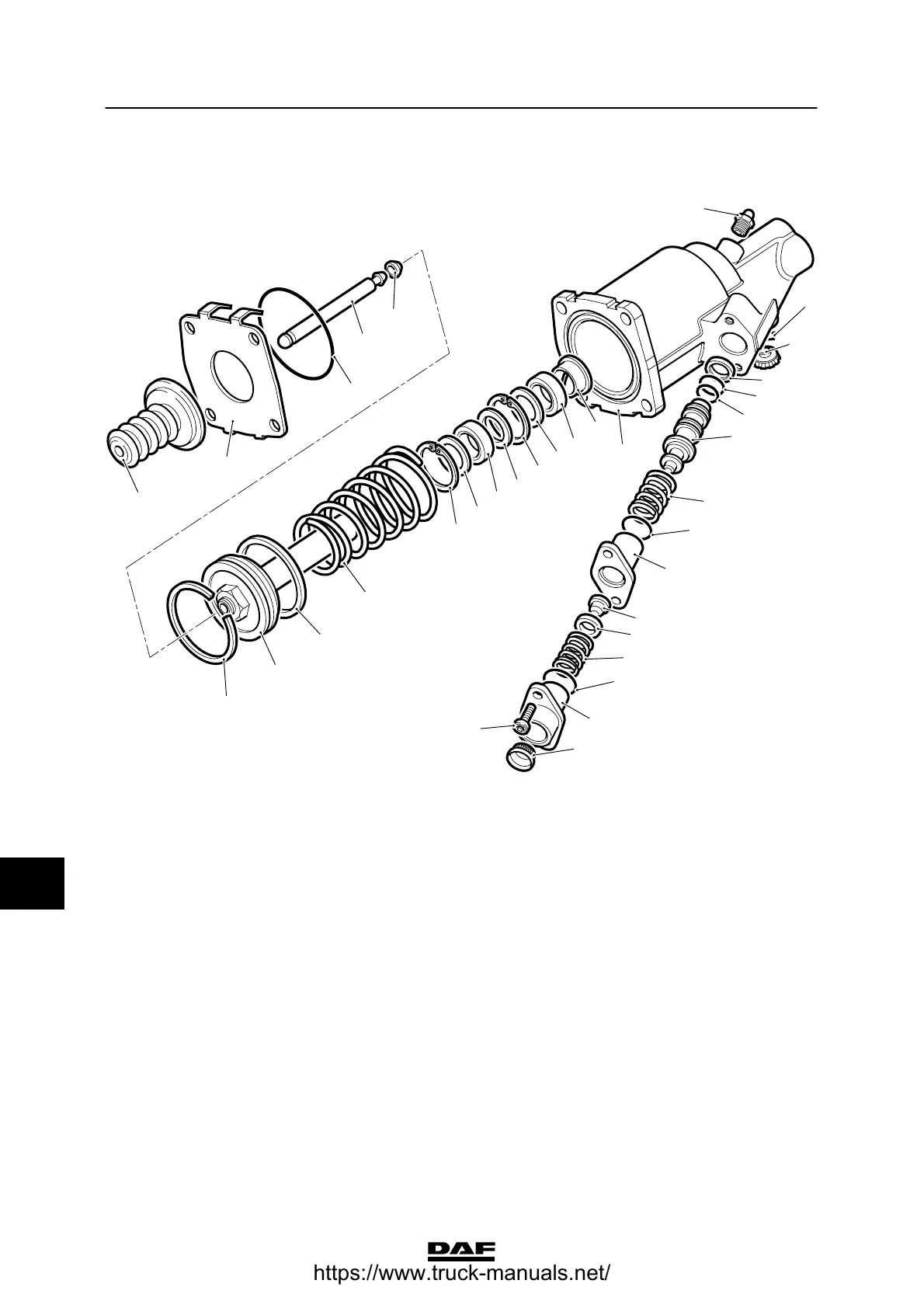

2.5 OVERVIEW DRAWING, CF65 CLUTCH SERVO
V3 00 436
17
31
16
19
18
20
21
22
23
24
25
26
27
28
29
30
32
2
1
6
7
8
9
10
11
12
11
10
11
13
14
15
3
4
5
1. Rubber protective bellows
2. End-plate
3. O-ring
4. Push rod
5. Fastening ring for push rod
6. Split seal
7. Piston
8. Piston seal
9. Conical spring
10. Circlip
11. Washer
12. Seal, hydraulic part, front
13. Seal, hydraulic part, rear
14. Split bearing
15. Booster housing
16. Bleed nipple
17. Vent opening
18. Blow-off nipple
19. Piston seal
20. O-ring
21. O-ring
22. Piston
23. Pressure spring
24. O-ring
25. Spring seat housing
26. Inlet valve
27. Spring seat
28. Reset spring
29. O-ring
30. Connector housing
31. Socket head screw
32. Air filter
10
ᓻ 200337
