CF65/75/85 series General
CLUTCH
2-9

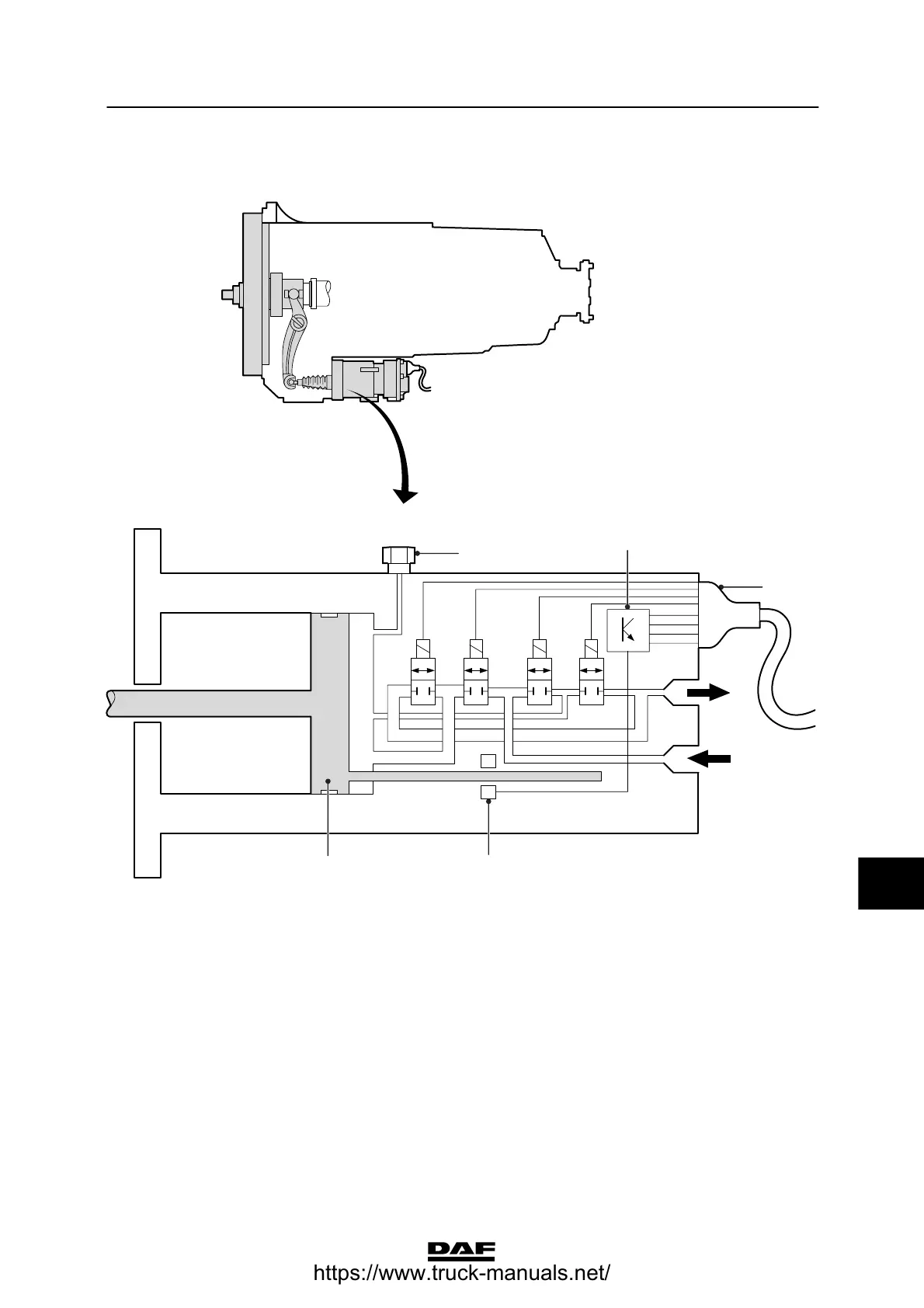

2.6 OVERVIEW DRAWING, AS TRONIC CLUTCH UNIT
3
2
1
4
5
11 6
V300702
78 910
1. Bleed screw
2. Electronic unit
3. Cable connection to modulator
4. Bleed
5. Compressed air connection
6. Position sensor
7. “Fast clutching” pneumatic valve
8. “Fast declutching” pneumatic valve
9. “Slow declutching” pneumatic valve
10. “Slow clutching” pneumatic valve
11. Operating piston
10
ᓻ 200337
