CLUTCH
General CF65/75/85 series
2-10

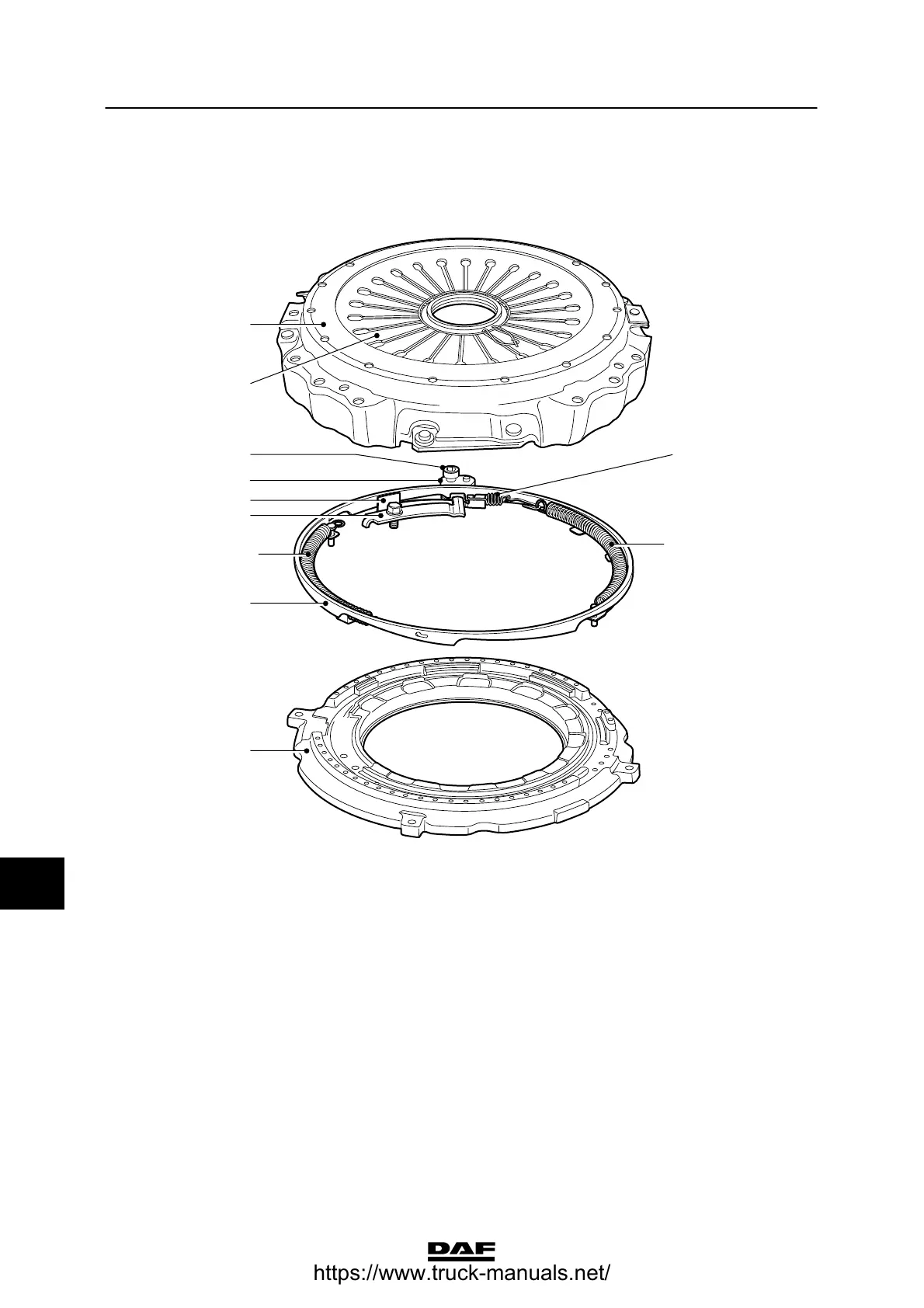

2.7 OVERVIEW DRAWING, AUTOMATICALLY ADJUSTING CLUTCH RELEASE
ASSEMBLY
(The example shown here is a pull-type clutch)
V300487
4
8
3
2
7
5
10
6
1
9
10
The automatically adjusting clutch release
assembly comprises the following parts:
1. Thrust plate
2. Stop plate
3. Stop plate attachment bolt
4. Clutch release assembly cover
5. Stop spring
6. Adjusting ring
7. Slide plate
8. Diaphragm spring
9. Pre-adjusting spring
10. Adjusting spring
