3
CLUTCH
Removal and installation CF65/75/85 series
5-8

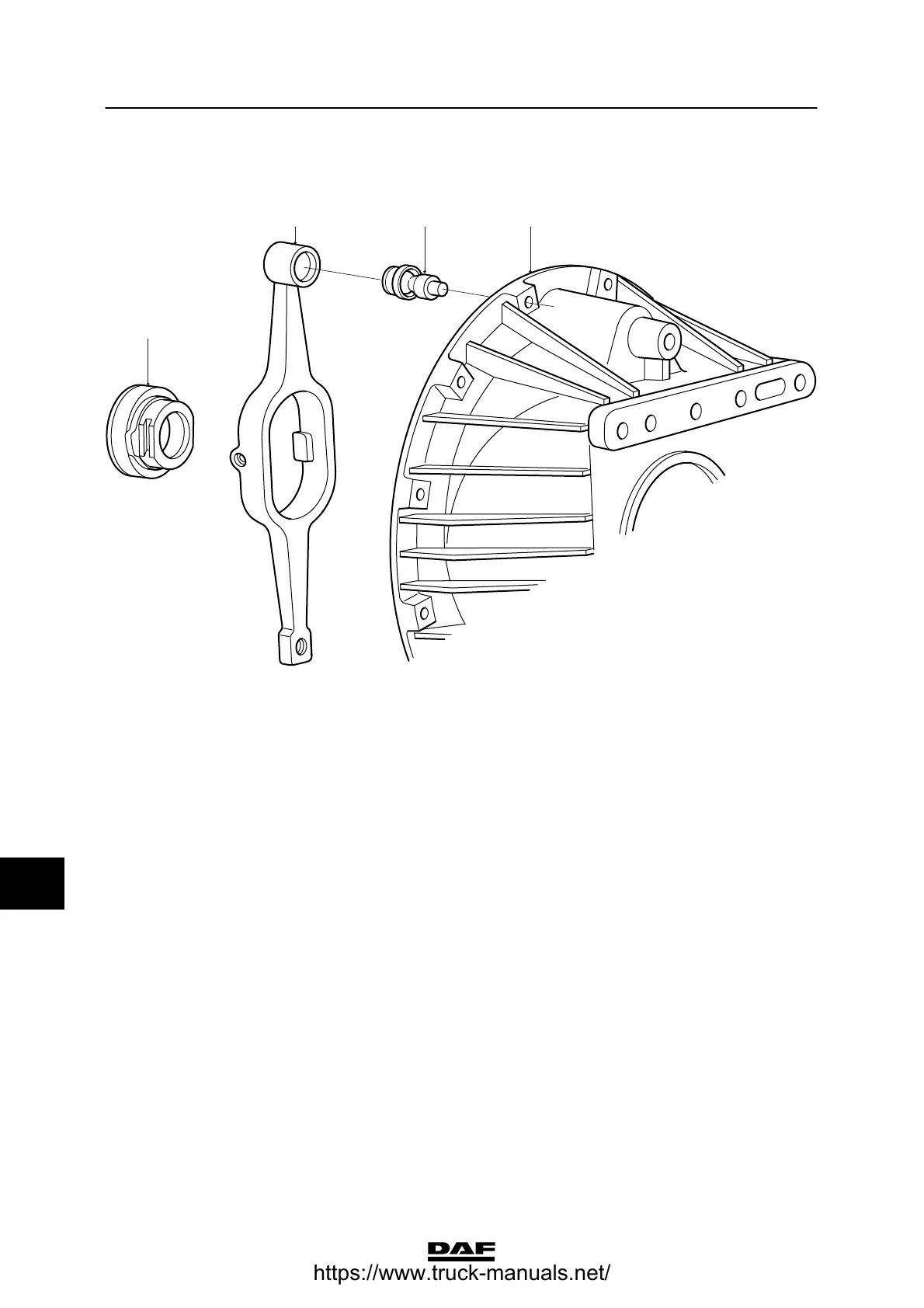

5.6 REMOVAL AND INSTALLATION, PUSH-TYPE CLUTCH LEVER
V300440
2
3 4
1
Removing the push-type clutch lever
1. Remove the gearbox.
2. Remove the thrust bearing.
3. Force the clutch lever (2) out of the ball joint
(3) fitted in the clutch housing (4).
Installing the push-type clutch lever
1. Apply a little grease to the moving parts of
the clutch lever.
2. Force the clutch lever (2) into the ball joint
(3) fitted in the clutch housing (4).
3. Fit the thrust bearing.
4. Fit the gearbox.
10
ᓻ 200337
