3
CLUTCH
Removal and installation CF65/75/85 series
5-14

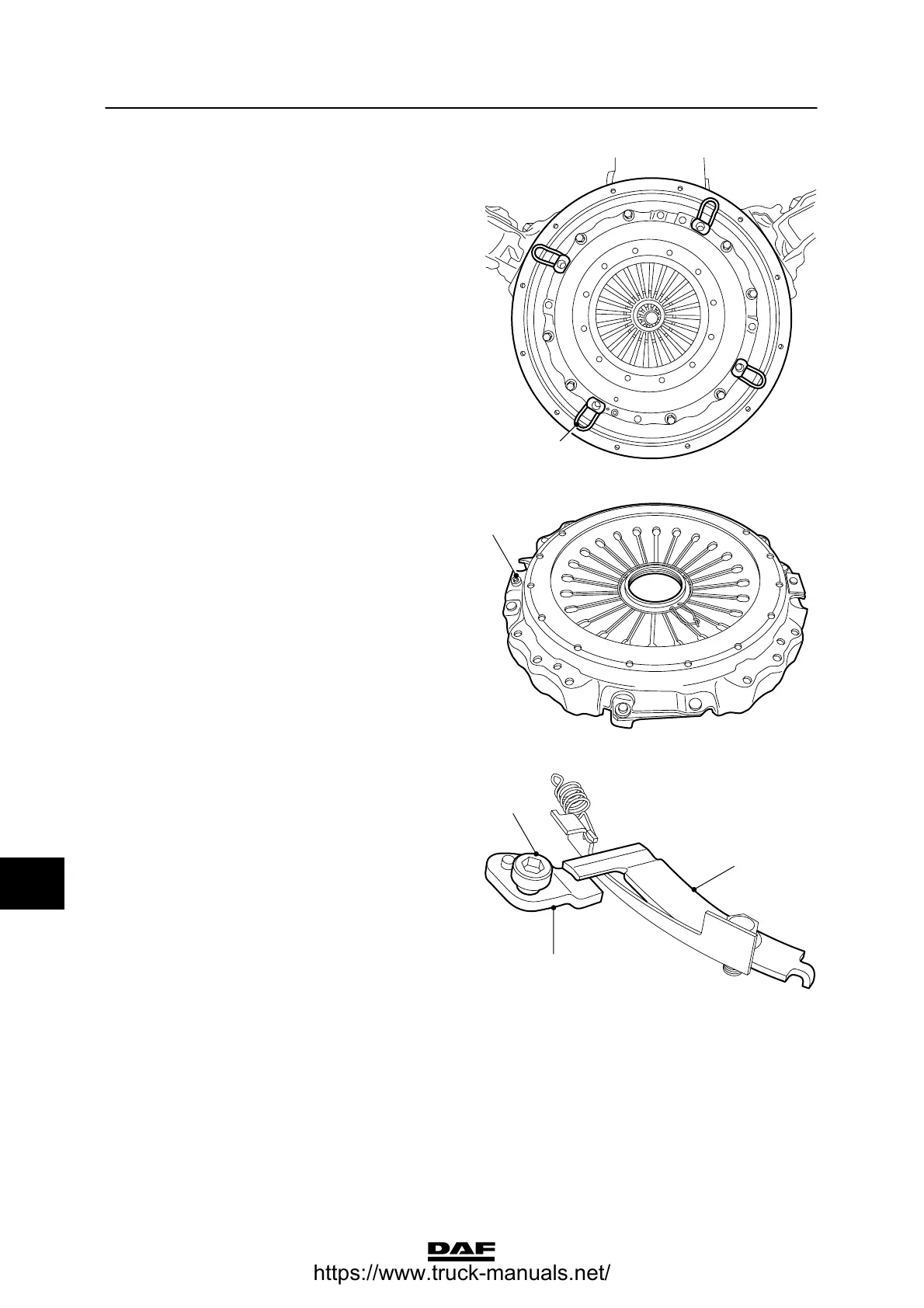

Installation of a new automatically adjusting
clutch release assembly/clutch plate
Note:
The automatically adjusting clutch release
assemblies have a transport mechanism. This
transport mechanism prevents deformation of
thestopspringintheclutchreleaseassembly
that might occur during transport. Be sure to
remove the clamps of the transport mechanism
after installation of the clutch release assembly.
After installation of the clutch release assembly
the clamps will hang loose, so that they can be
moved to the exterior of the clutch release
assembly.
1. Apply a little grease to the input shaft and
check the movement of the clutch plate on
the splines of the input shaft.
2. Use a dummy input shaft to position the
clutch plate against the flywheel.
3. Install four studs in the flywheel, distributed
evenly around the circumference.
Note:
You do not have to loosen the attachment
bolt (1) of the stop plate (2) first when fitting
a new clutch release assembly. A new
clutch release assembly must also always
be fitted with a new clutch plate.
4. Fit the clutch release assembly onto the
flywheel.
5. Fit the attachment bolts and tighten them
crosswise and evenly to the specified
torque. See “Technical data”.
6. Apply a little grease to all pivoting points of
the release fork.
7. If necessary, fit the thrust bearing.
8. Fit the gearbox.
V300598
4
V300473
1
V300474
1
2
3
10
ᓻ 200337
