3
PROP SHAFTS
Disassembly and assembly CF65/75/85 series
4-2

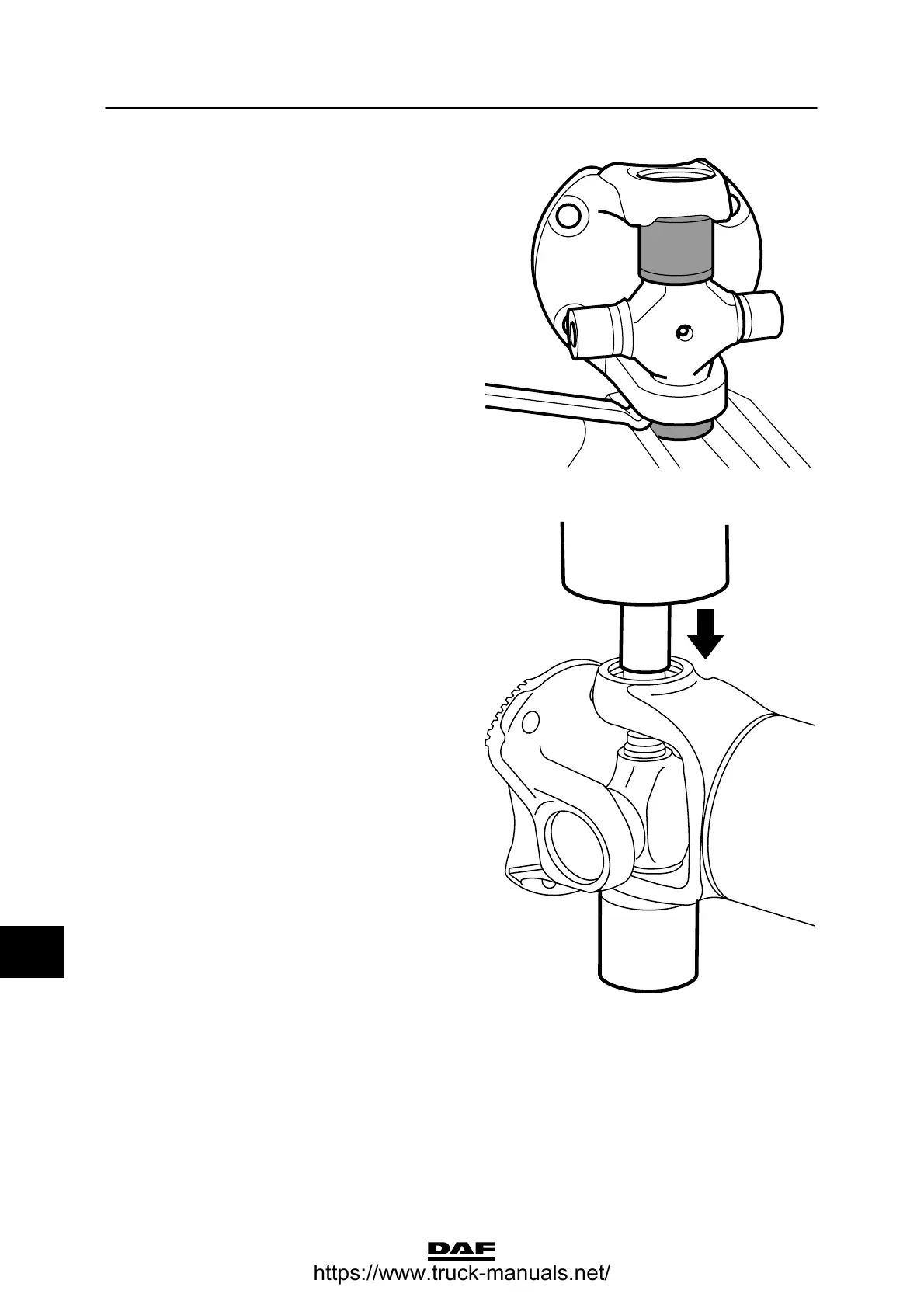

4. Rotate the shaft 180_ and remove the
bearing that has just been pressed out. If
the first bearing to be removed fails to come
out of the fork entirely, the bearing can be
clamped to enable the fork to be pushed up
by means of a lever. Place the shaft back
on to the bush.
5. Push the spider down again in the direction
of the shaft fork. Again, continue until the
spider touches the fork.
6. The spider and the drive flange can now be
tilted from the shaft fork.
7. Place the drive flange on a bush
underneath a press and press the entire
spider including bearings and drive flange
down, until the spider touches the fork of
the drive flange.
8. Rotate the drive flange 180_ and remove
the bearing that has just been pressed out.
Place the drive flange back on the bush.
9. Push the spider down again in the direction
of the shaft fork. Again, continue until the
spider touches the fork.
10. The spider can now be tilted from the drive
flange fork.
11. Note:
When spiders are being replaced, always
replace them including their bearings.
Check the components to be reused for any
cracks and/or damage.
W 3 06 012
W 3 06 011
11
ᓻ 0111
