CF65/75/85 series Inspection and adjustment
ZF INTARDER
3-1
3. INSPECTION AND ADJUSTMENT

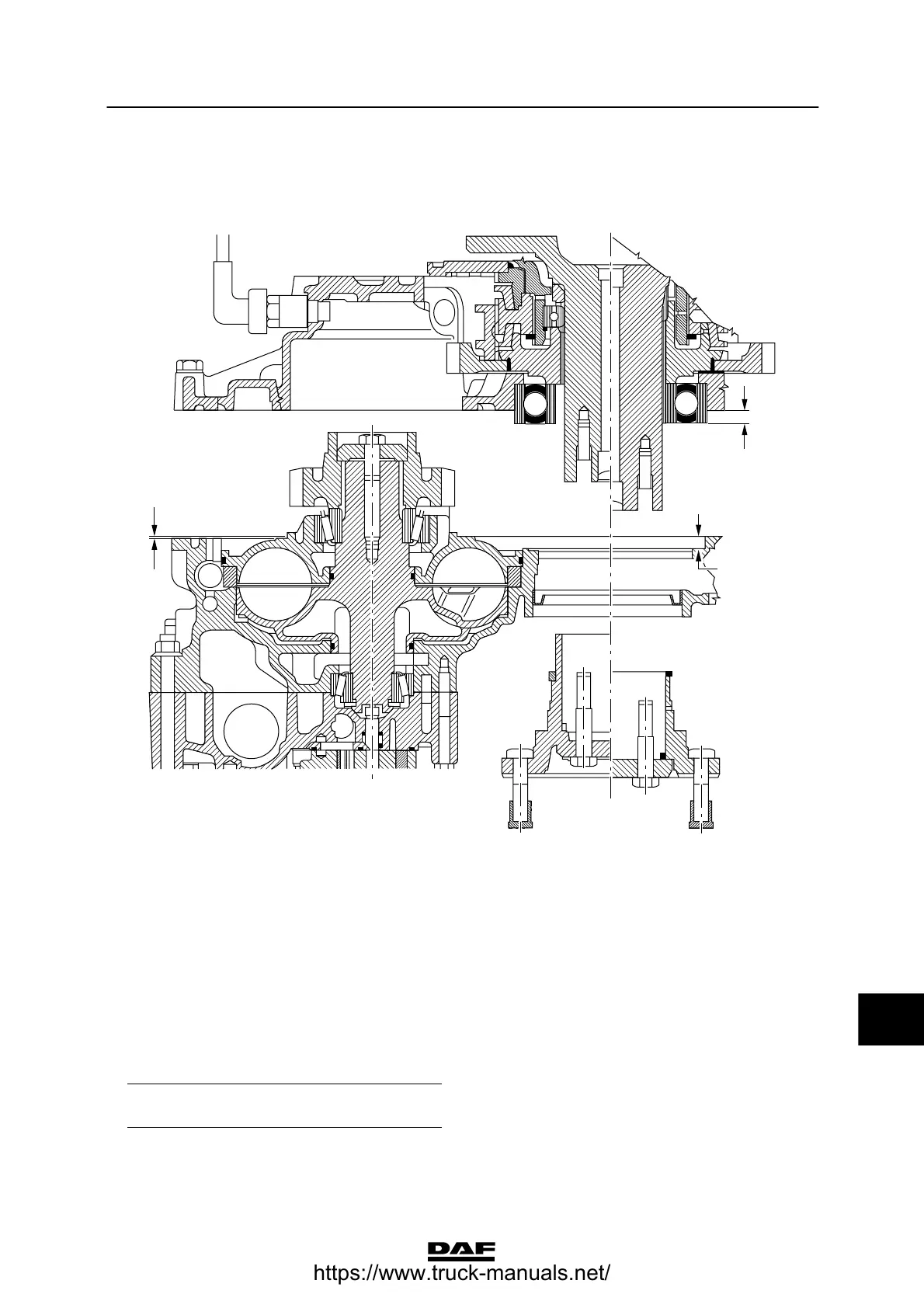

3.1 INSPECTION AND ADJUSTMENT, OUTPUT SHAFT BEARING AXIAL PLAY
A
C
A
B
D
V300070
1. Measure and note down distance “A-B”
from sealing surface A with gasket to
contact surface B.
2. Measure and note down distance “D” from
the ball bearing outer race to the gasket on
the gearbox.
Example:
Distance A - B = 10.5 mm
Distance D = 10.0 mm
Difference =
0.5 mm
Maximum play 0.1 mm
Required thickness of shim
0.4 mm
12
ᓻ 200337
