ZF INTARDER
Inspection and adjustment CF65/75/85 series
3-2
3.2 INSPECTION AND ADJUSTMENT, STATOR AXIAL PLAY
A
C
A
B
D
V300070

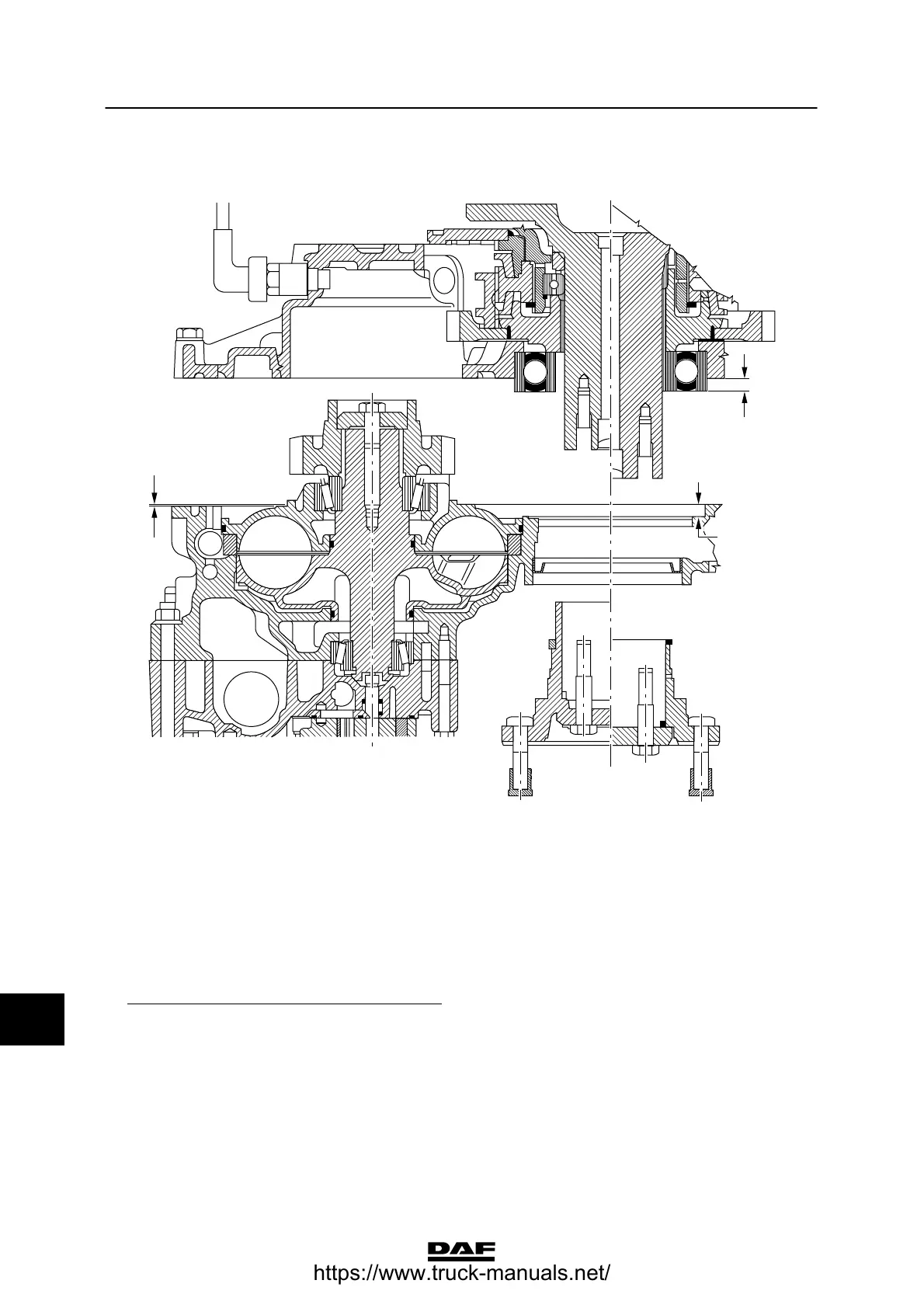

1. Measure and note down distance “A-C”
from sealing surface A with gasket to
contact surface C.
Example:
DistanceA-C= 1.10mm
Distance A - C should
be
0 ᐔ0.05 mm
Required thickness of
shim
1,1 ᐔ0.05 mm
