CF65/75/85 series Disassembly and assembly
ZF INTARDER
5-1
5. DISASSEMBLY AND ASSEMBLY
5.1 DISASSEMBLY AND ASSEMBLY, ACCUMULATOR

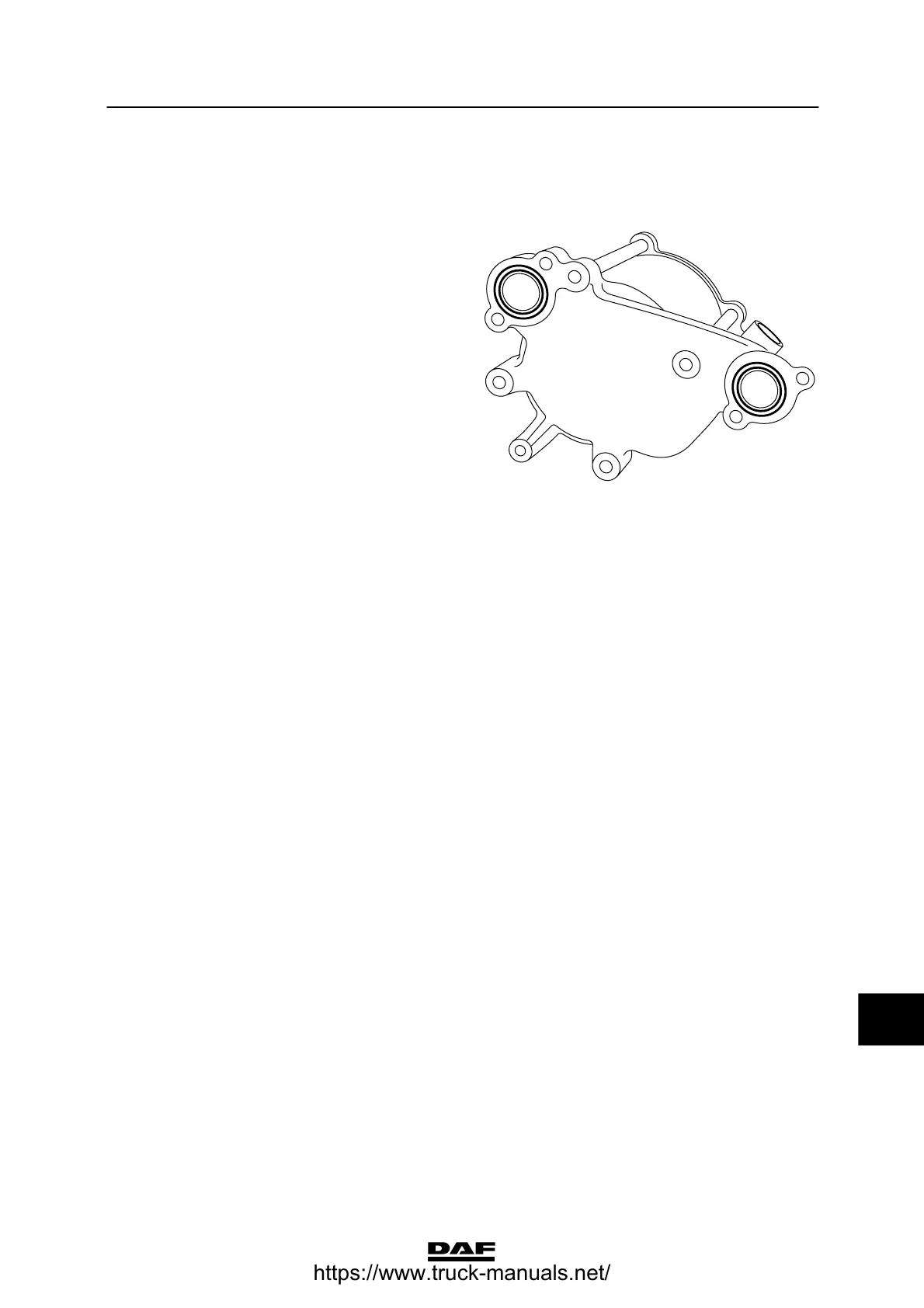

Disassembling the accumulator
1. Take out the bolts and/or nuts attaching the
cylinder to the accumulator bracket, and
remove the bracket.
2. Remove the O-rings on the bottom of the
sealing surfaces of the accumulator/heat
exchanger.
3. Remove the O-rings from the accumulator
cylinder.
4. Remove the piston and sleeves from the
cylinder.
5. Remove the sleeves from the piston and the
scraper rings from the middle of the piston.
6. Check the cylinder for damage.
V300197
12
ᓻ 200337
