2. DESCRIPTION OF COMPONENTS
2.1 INTEGRATED AIR DISTRIBUTION BLOCK
Therearetwowaysinwhichtheairforthe
gearbox control unit can be distributed:
- With a separate air distribution block at the
side of the gearbox
- With an integrated air distribution block on
the selector housing.
The integrated air distribution block has a single
central connection for the air supply (10), from
which all components are provided with air. The
neutral position valve (A) and the locking
cylinder (B) are also integrated in the air
distribution block.
V300865
2
10
1
3
5
A
B
9
7
4 6 8

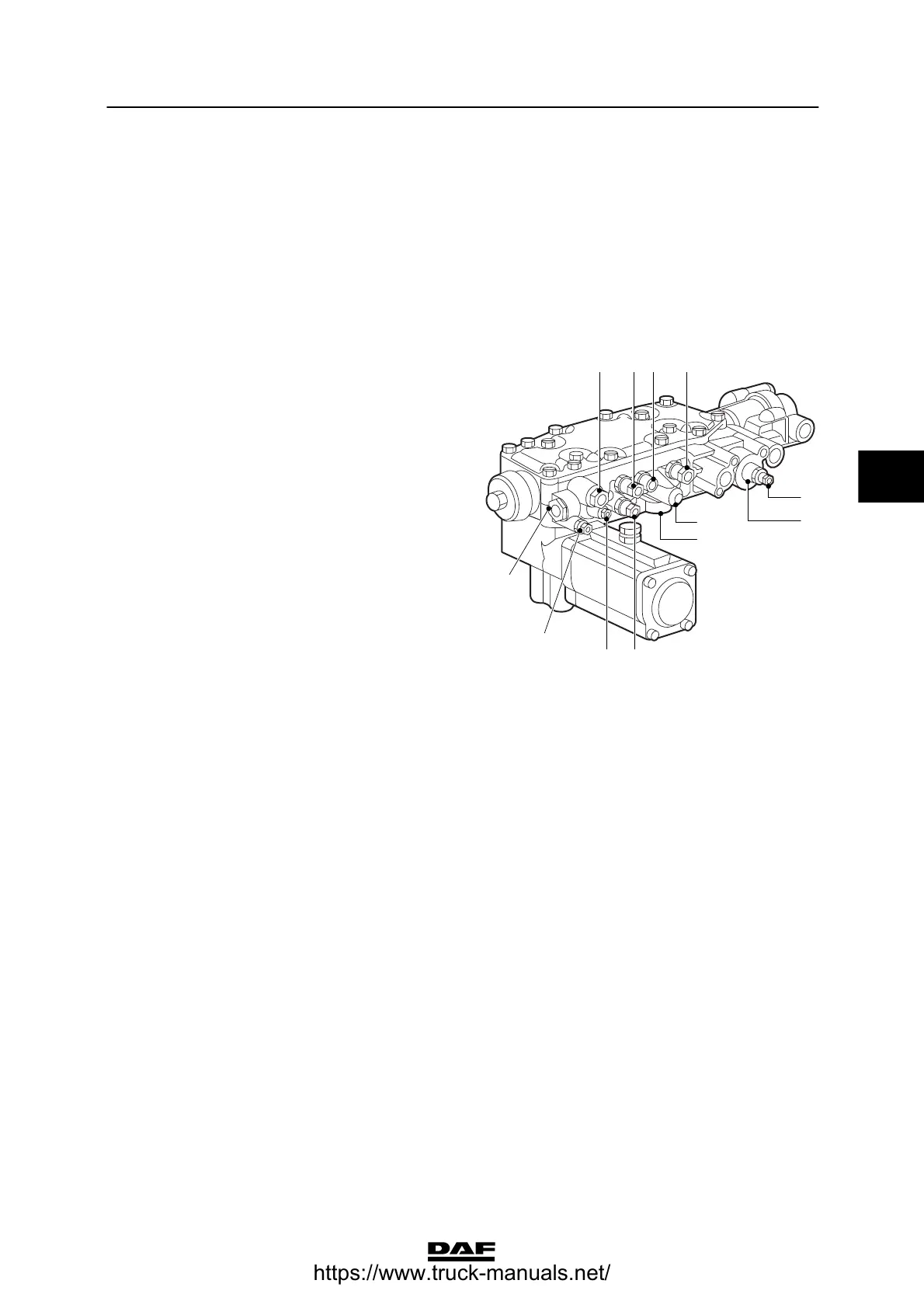

Rear view of integrated air distribution block
