3
GEARBOX - PNEUMATIC SECTION
Description of components CF65/75/85 series
2-2

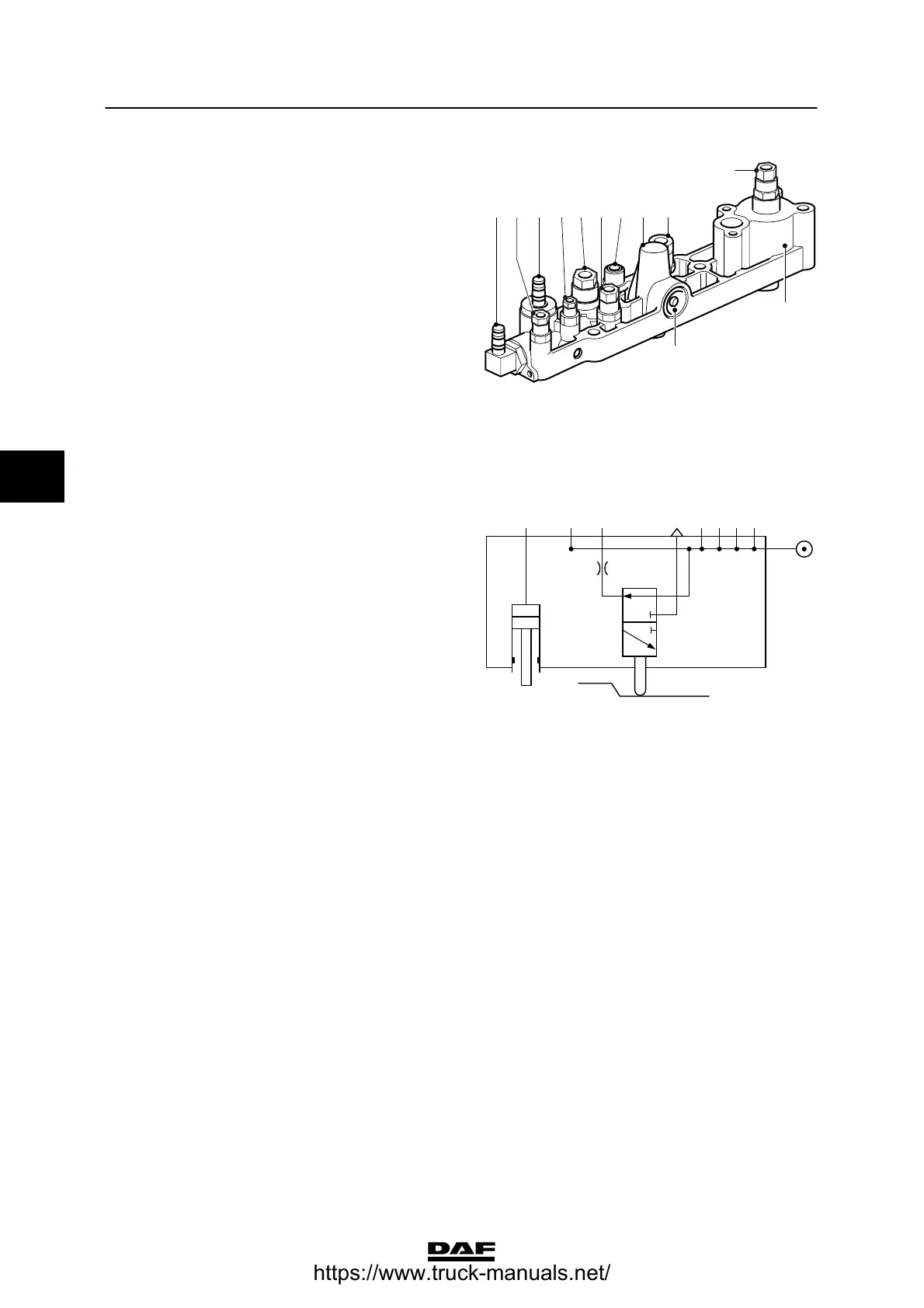

Connection points on integrated air distribution
block:
1. Connection to PTO
2. Connection to intarder
3. Gear lever air supply
4. Connection to clutch servo
5. Neutral position valve bleed opening
6. Servoshift air supply for 8S gearbox
7. Connection to gate protection valve
8. Connection to downshift protection valve
9. Connection from gate protection valve
10. Central air supply
A. Neutral position valve (integrated)
B. Locking cylinder
V300866
210 1
43
67
A
8
9
5
B
Bottom view of integrated air distribution block
Schematic representation of integrated air
distribution block:
Connection points on integrated air distribution
block:
1. Connection to PTO
2. Connection to intarder
3. Gear lever air supply
4. Connection to clutch servo
5. Neutral position valve bleed opening
6. Servoshift air supply for 8S gearbox
7. Connection to gate protection valve
8. Connection to downshift protection valve
9. Connection from gate protection valve
10. Central air supply
A. Neutral position valve (integrated)
B. Locking cylinder
N Gearbox selector shaft in neutral
V Gearbox selector shaft engaged
V300864
10
12345879
BA
V
N
4
ᓻ 200337
