CF65/75/85 series General
ZF INTARDER
2-1
2. GENERAL

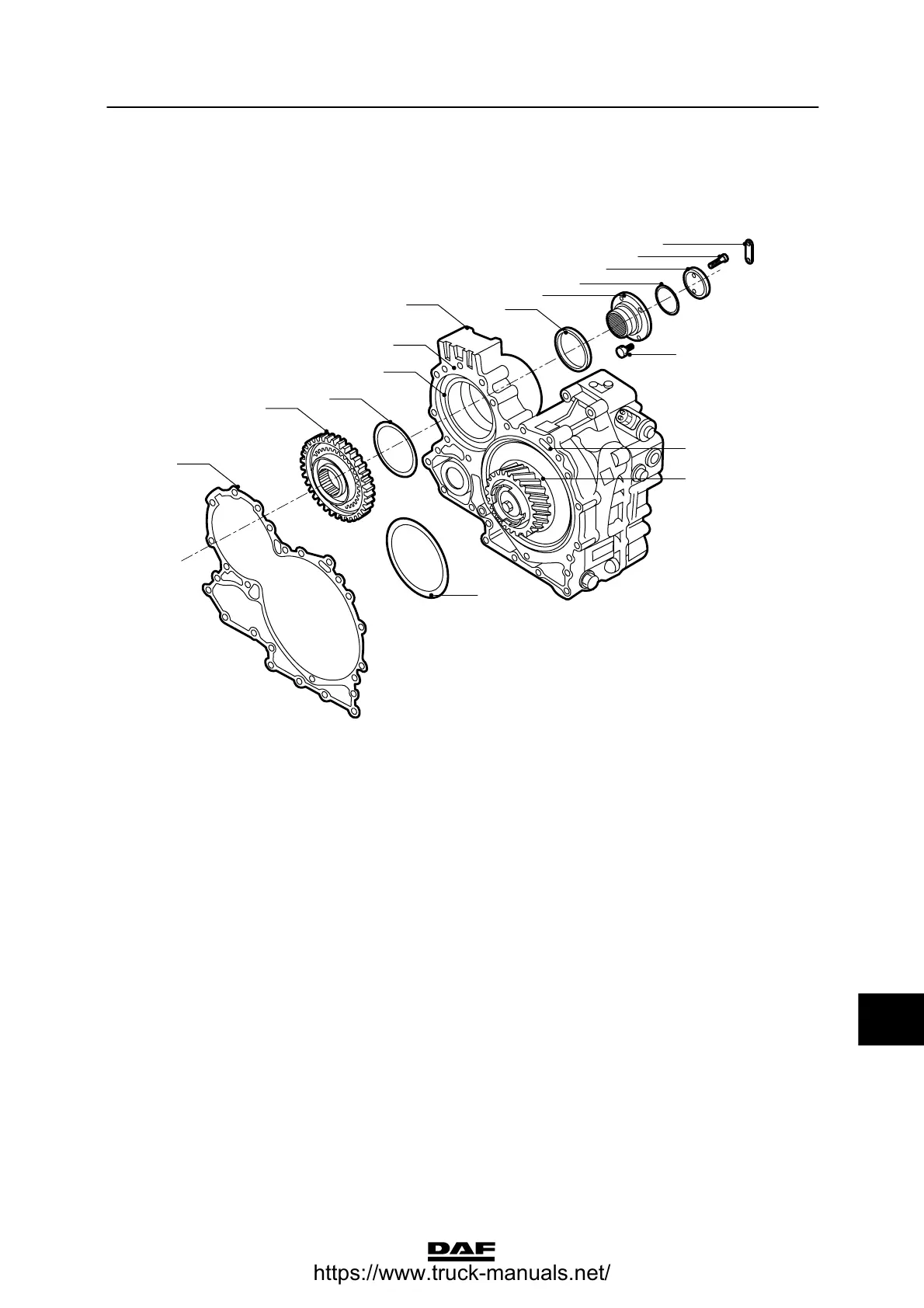

2.1 OVERVIEW DRAWING, INTARDER
1
2
3
4
5
6
12
A
B
8
9
11
10
7
A
C
V300074
1. Locking plate
2. Bolt
3. Plate
4. O-ring
5. Prop shaft flange
6. Oil seal
7. Flange bolt
8. Output shaft shim
9. Drive sprocket
10. Stator shim
11. Gasket
12. Intarder housing
A Intarder housing sealing surface
B Ball bearing sealing surface
C Stator contact surface
ᓻ 200337
