DAF CF85 Series - 3.3 INSPECTION AND ADJUSTMENT, AXIAL PLAY ON GEARBOX OUTPUT SHAFT WITHOUT INTARDER WITH N221;10 PTO

3
CF65/75/85 series Inspection and adjustment
PTO
3-5
3.3 INSPECTION AND ADJUSTMENT, AXIAL PLAY ON GEARBOX OUTPUT
SHAFT WITHOUT INTARDER WITH N221/10 PTO
1. Remove the bearing cover of the output
shaft from the gearbox.

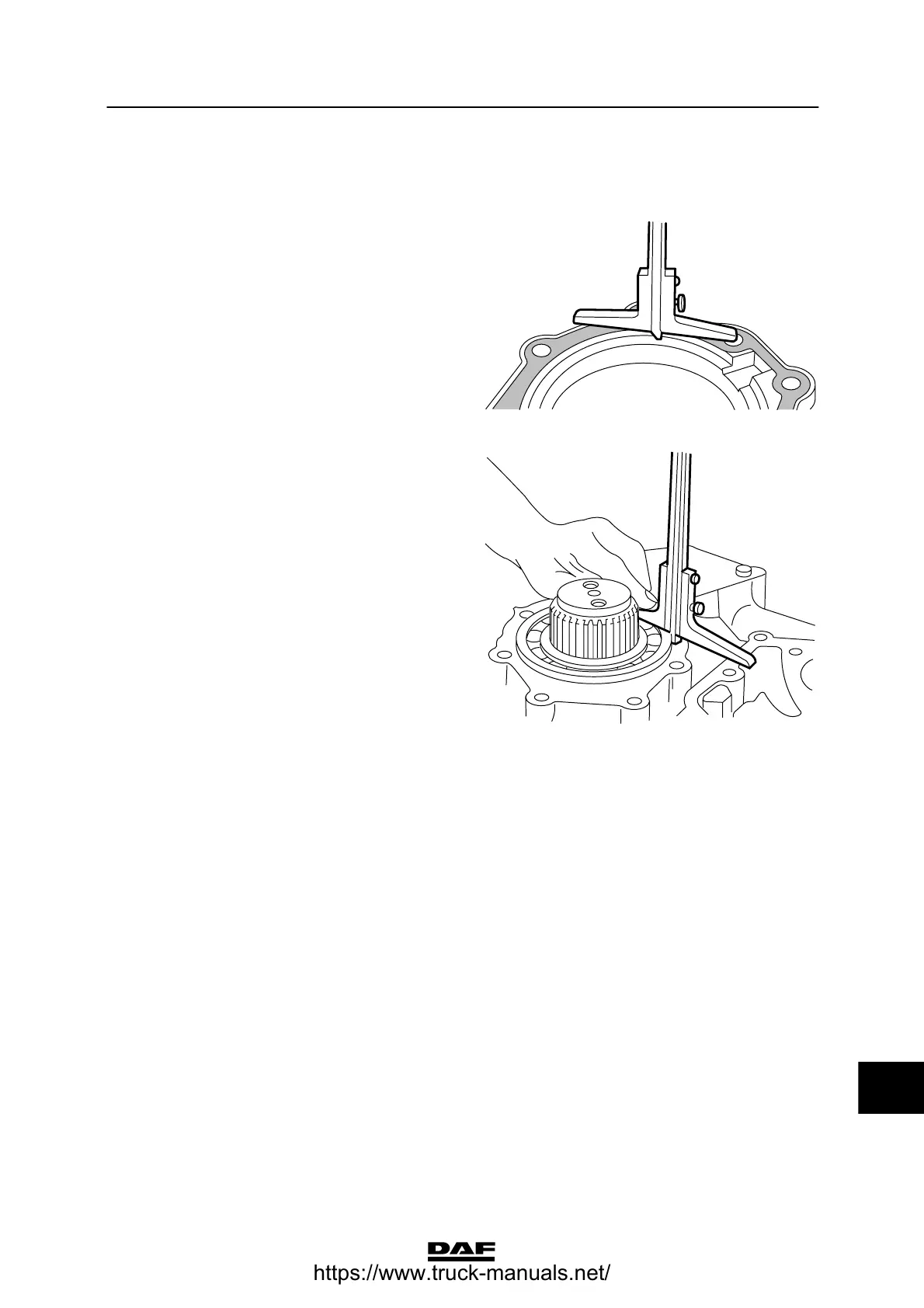

2. Install a new gasket on the bearing cover of
the PTO housing. Use a depth gauge to
determine the depth of the bearing cover
recess, distance A.
A
V300227
3. Use a depth gauge to determine the height
the ball bearing protrudes above the
gearbox housing, distance B.
4. Calculate the axial play. The axial play
equals distance A -- distance B.
5. Compare the calculated value with the
maximum allowable axial play. See
“Technical data”.
6. If necessary, adjust the axial play by means
of another shim.
V300216
B
