3
PTO
Inspection and adjustment CF65/75/85 series
3-4

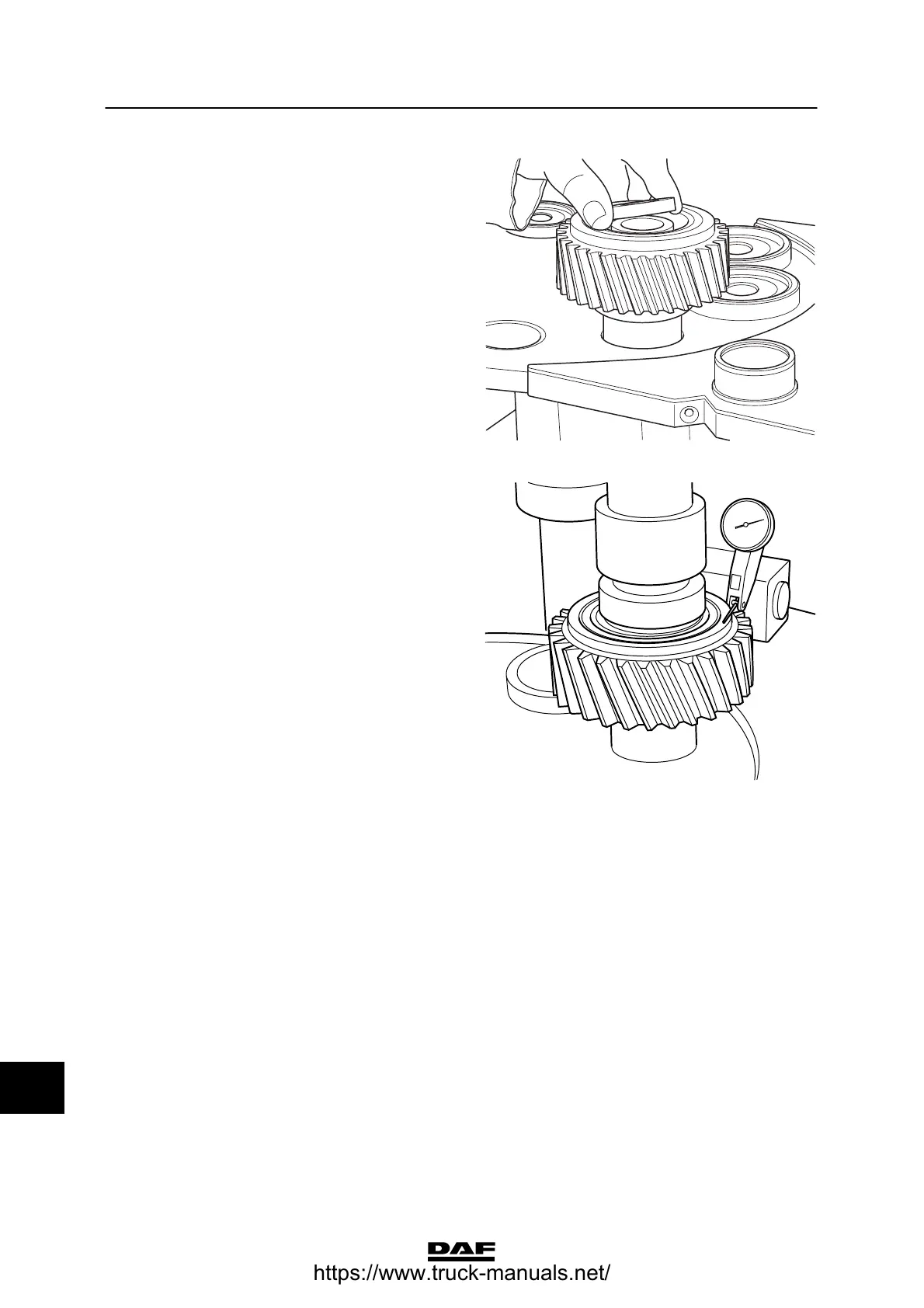

4. Starting with the thickest, place two shims
on the inner race and fit the second inner
bearing race.
5. Place another driving tool on the inner race
and tighten it to a pressure of 1--5 tons.
V300305
6. Place a dial gauge on the drive sprocket
and inspect the axial play. See “Technical
data”.
If the axial play is too great or too little,
choose the correct shim.
7. Put both gear shafts and the drive
sprocket assembly aside to fit them later.
V300306
13
ᓻ 200337
