2.2.1.2 Specifications

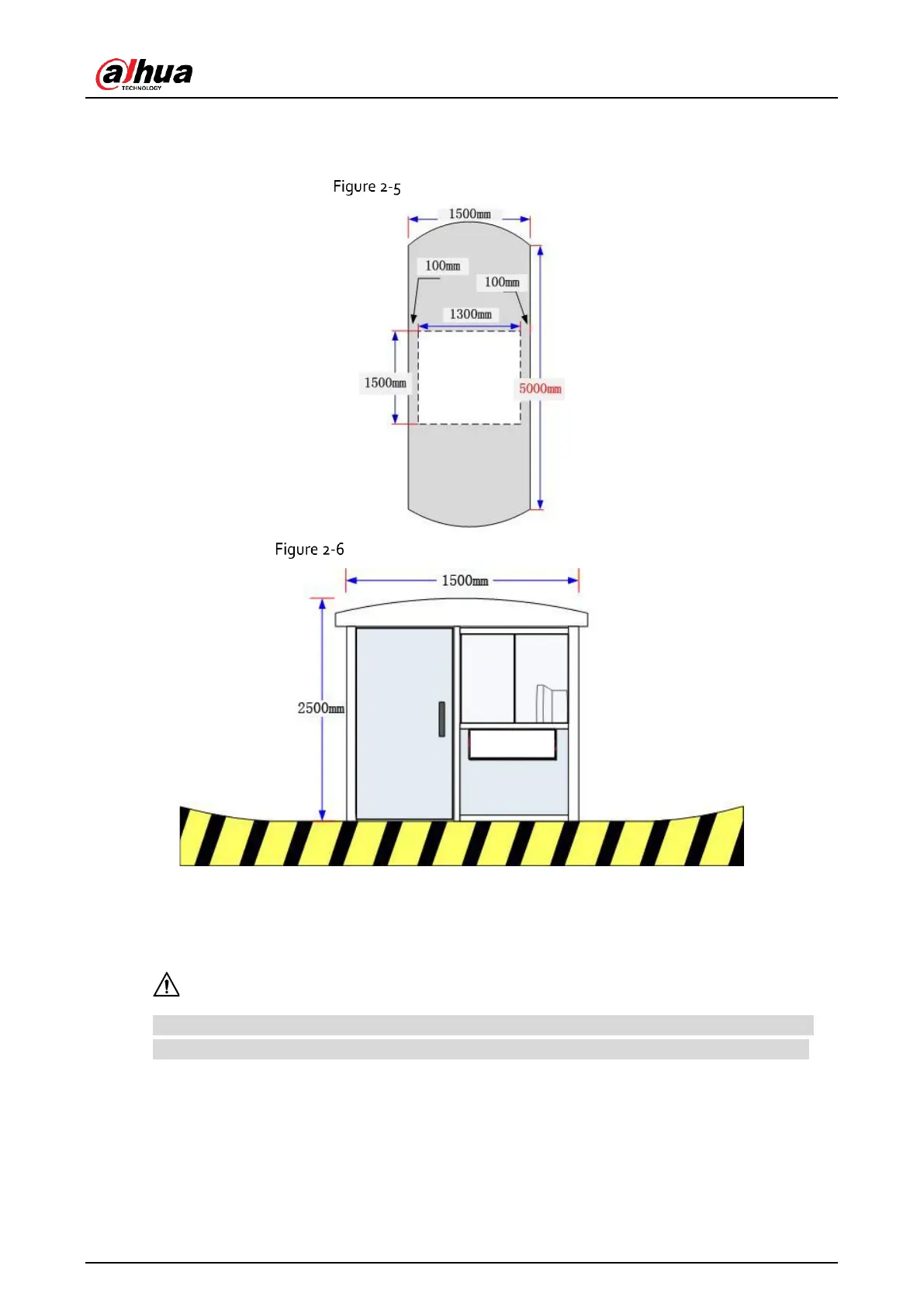

Refuge island specifications
Refuge island and guard booth specifications
2.2.1.3 Manufacturing Craft of Refuge Island
When making the refuge island, you need to reserve the conduit, otherwise the conduit cannot be
embeded in later stages. For details on conduit location, specification, and quantity, see Figure 2-7
Requirements of refuge island craft:
The refuge island foundation should be more than 10 cm larger than the device dimensions to
prevent the foundation from bursting when affixing the device with expansion screws.
The height of refuge island foundation should be more than 15 cm, which can provide necessary
protection for devices.
