Installation and Configuration Manual
6

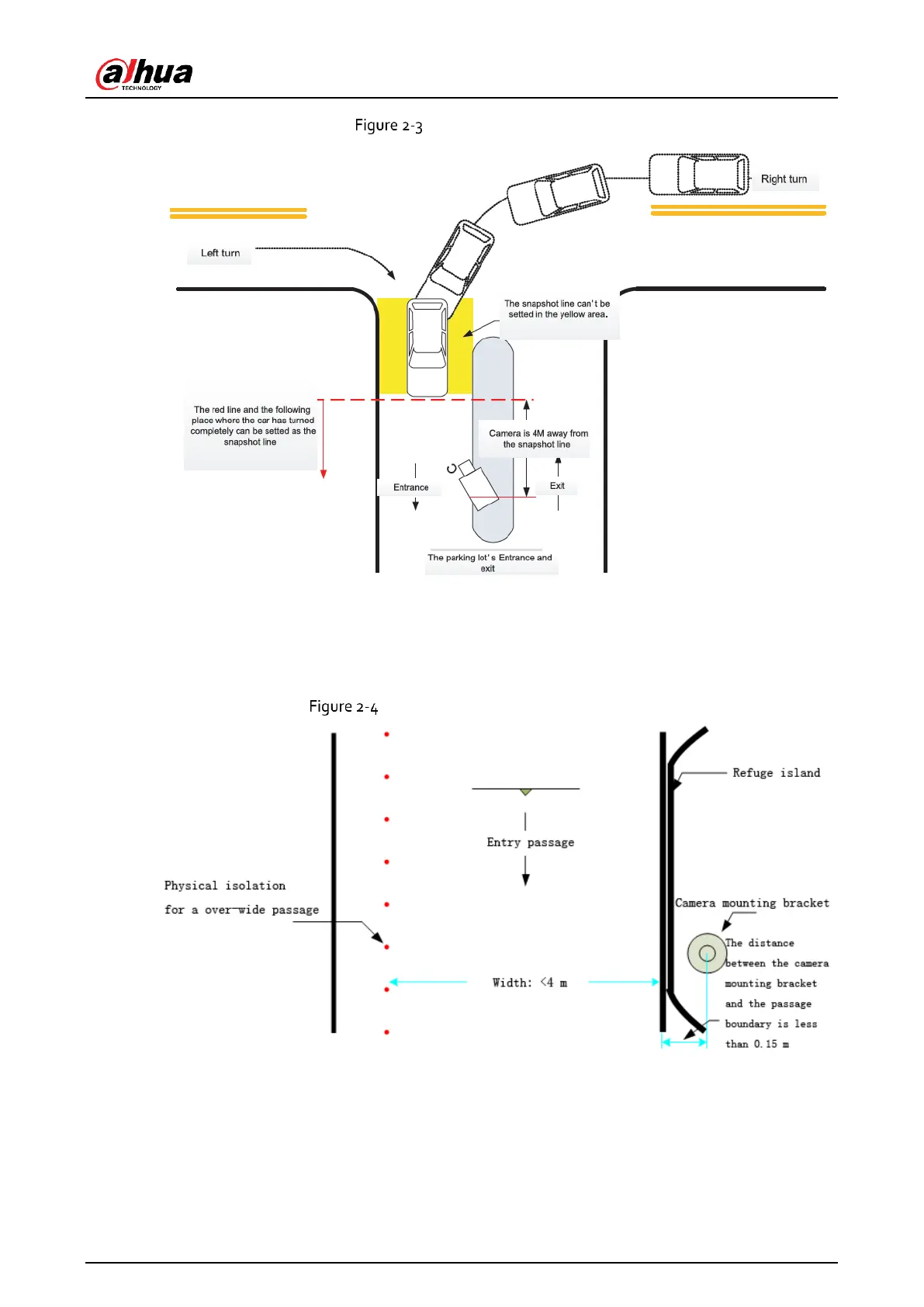

Camera location plan
The maximum passage width covered by the camera is 4 meters. If the passage width is larger than
4 meters, the channel should be physically isolated to make it meet the requirement.
It is required that the distance between the camera mounting bracket and the passage boundary
is less than 0.15 meters, as shown in Figure 2-4.
Camera and passage requirements
In addition, you also need to pay attention to factors such as the width of the reserved passage,
the width of the refuge island, and the installation requirements of the devices installed on slopes
