Dahua HCVR4108C-S2 User Manual

415

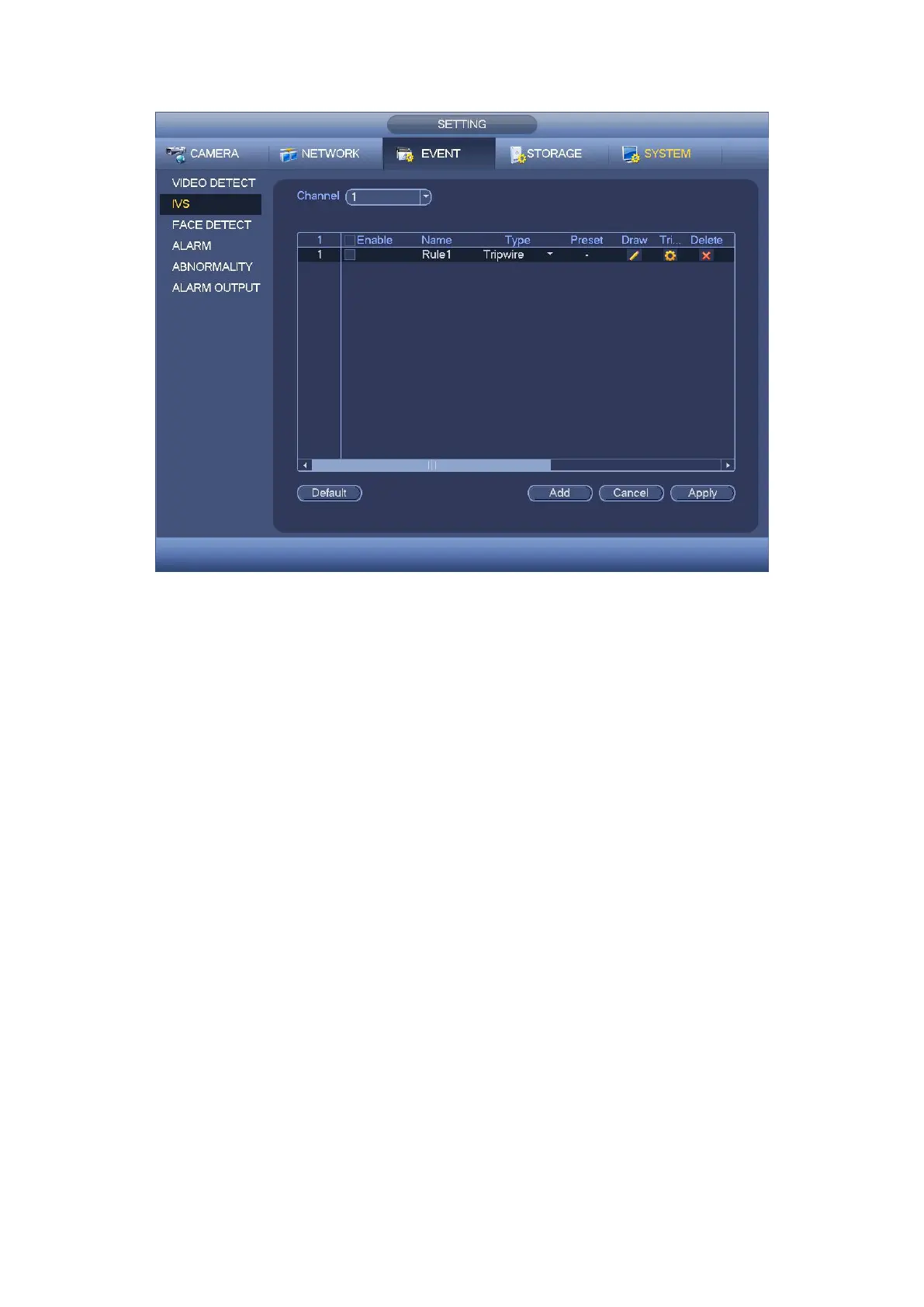

Figure 4- 144
Step 2 Select a channel from the dropdown list.
Step 3 Click Add button to add a rule and then select a rule type from the dropdown list.
Step 4 Set corresponding parameters.
Step 5 Check the box to enable current rule.
Step 6 Click Apply or Save to complete setup.
4.9.3.3 Tripwire (Optional)
System generates an alarm once there is any object crossing the tripwire in the specified
direction.

The tripwire supports customized setup. It can be a straight line or a curve.

Support one-direction or dual-direction detection.

Support several tripwires at the same scene suitable for complicated environment.

Support object size filter.
Step 1 From main menu->Setting->Event->IVS, click Add button to add a rule and select
the rule type as tripwire.
The interface is shown as below. See Figure 4- 145.

Dahua HCVR4108C-S2 Specifications

General

Brand	Dahua
Model	HCVR4108C-S2
Category	DVR
Language	English
