203

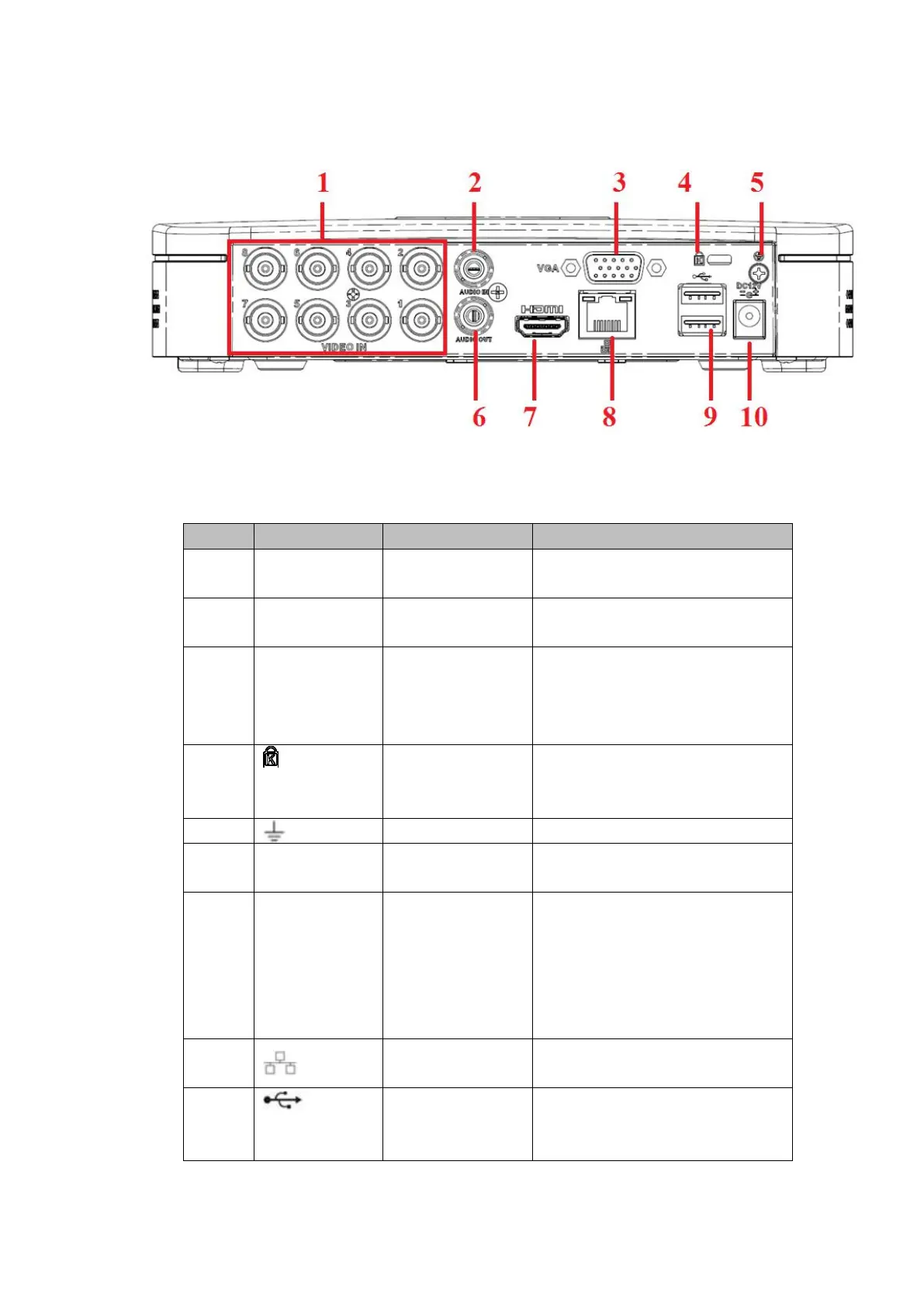

The following figure is based on the HCVR4108C-S3/5108C-S3/XVR4108C/5108C/
XVR41XXC-S2/XVR51XXC-S2 series.
Figure 2- 20
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view analog
video output.
4
Power cable
fastener
Use clamp to secure the power
cable on the device in case there
is any loss.
5
GND
Ground end
6
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
7
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
8
Network port
100M Ethernet port
9
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
