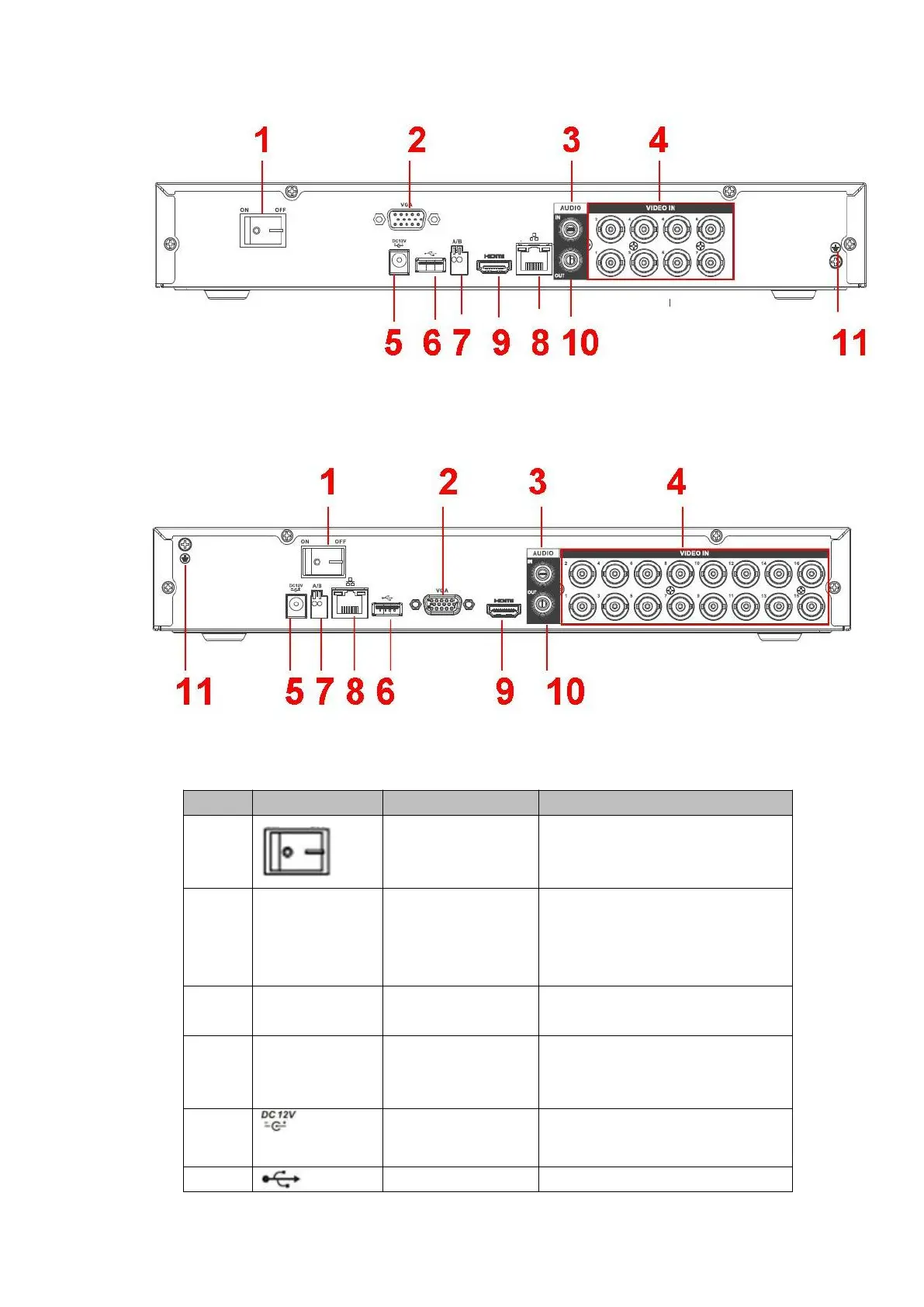

The HCVR5116H-S2 series rear panel is shown as below. See Figure 2- 47.
Figure 2- 47
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
3
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
4
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
5
Power input port
Input 12V DC.
6
USB2.0 port
Connect to USB storage device,
