Dahua NVR5 NVR5864-I - Page 35

Device Installation 26

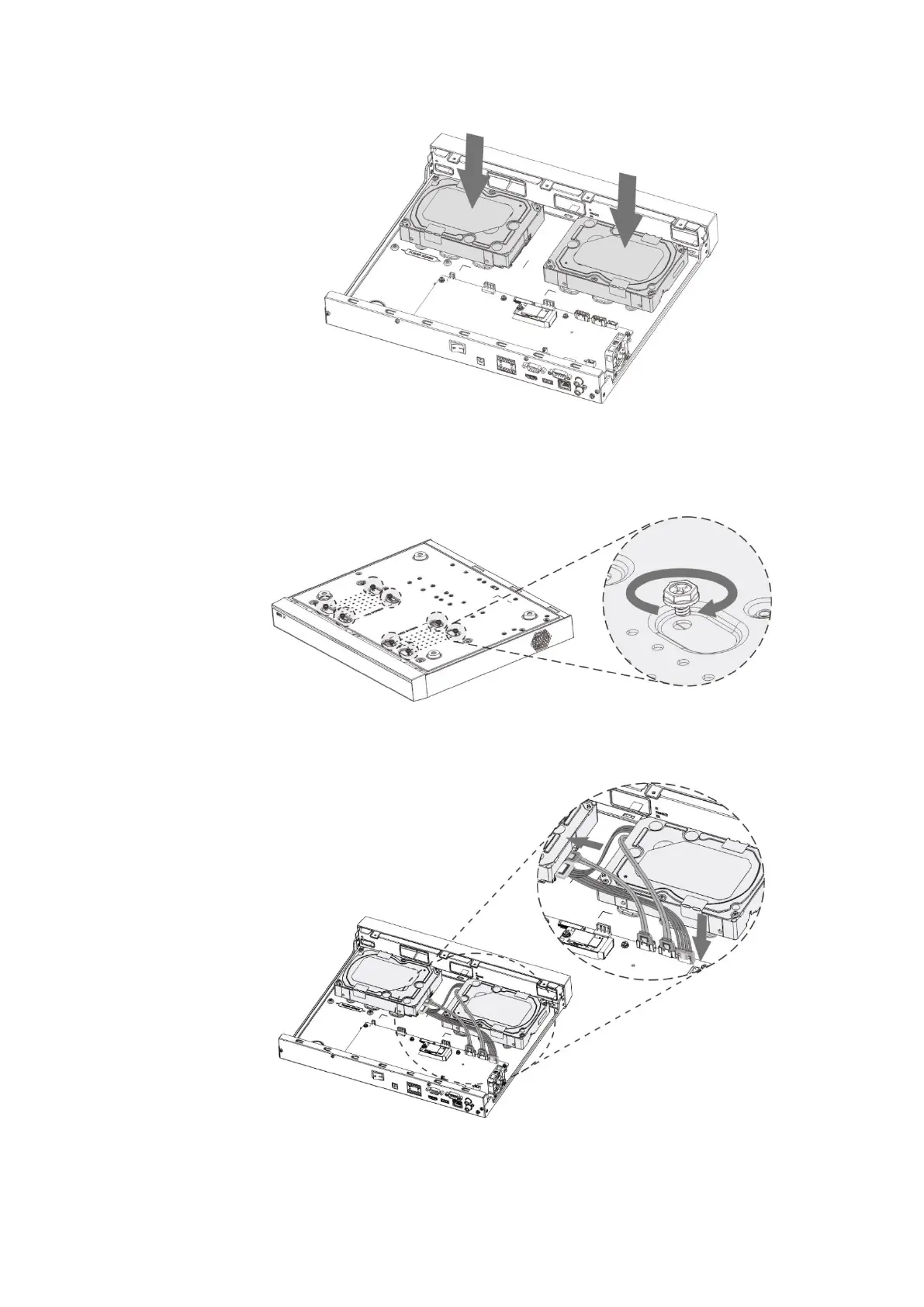

Figure 3-13
Turn the device upside down, match the screws with the holes on the HDD and then fasten them. The
HDD is fixed to the baseboard.
Figure 3-14
Connect the HDD data cable and power cable to the device.
Figure 3-15
Put back the cover and fasten the four screws on the rear panel to complete the installation.
