Dahua NVR5832-I - Page 32

Device Installation 23

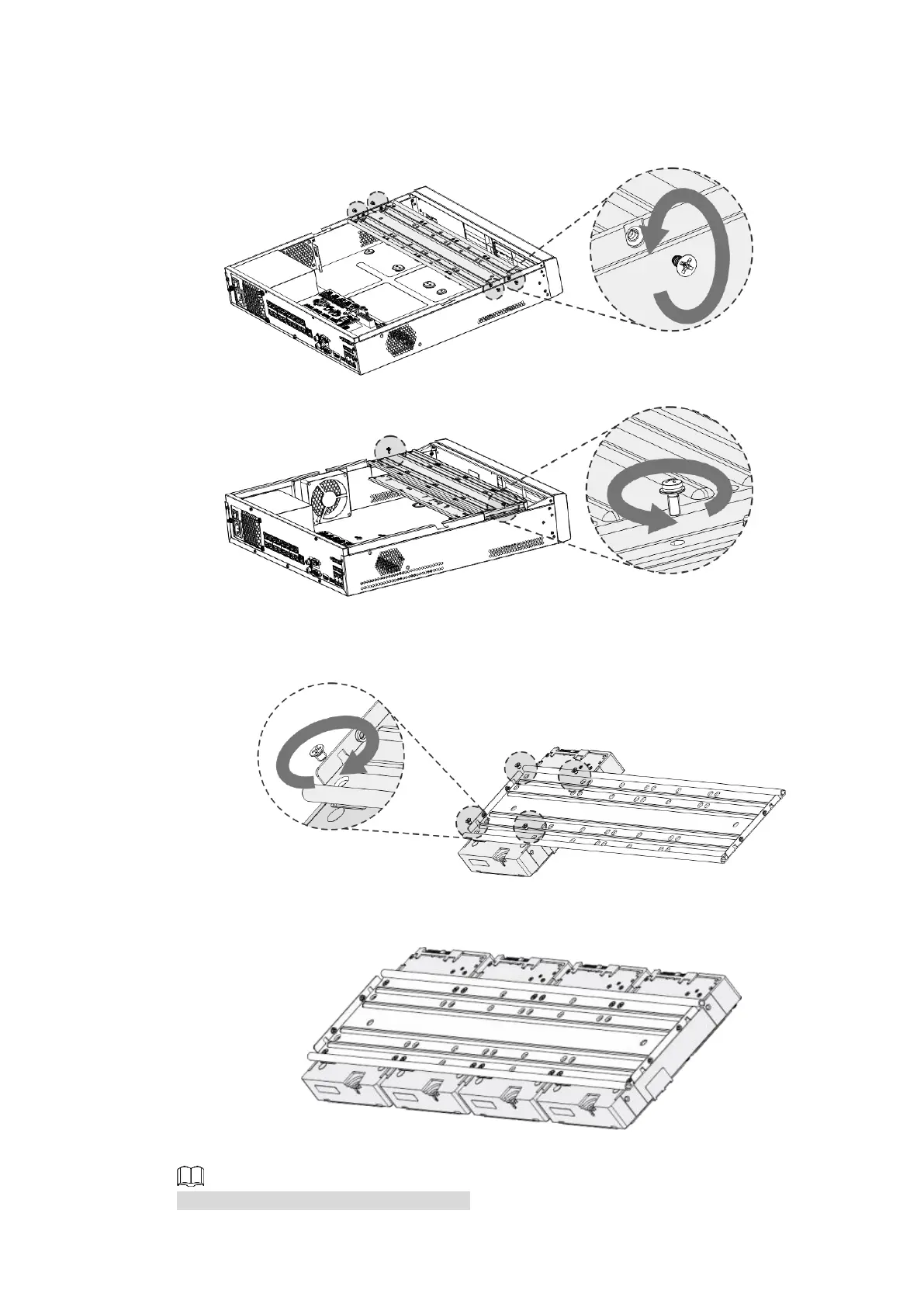

Figure 3-3
Figure 3-4
Match the four screw holes on the HDD with the four holes on the bracket and then fasten the screws.
The HDD is fixed to the bracket.
Figure 3-5
Refer to Step 4 to install other HDDs.
Figure 3-6
Lock the two HDD brackets.
This step is required for 2U devices only.
