Figure 2- 40

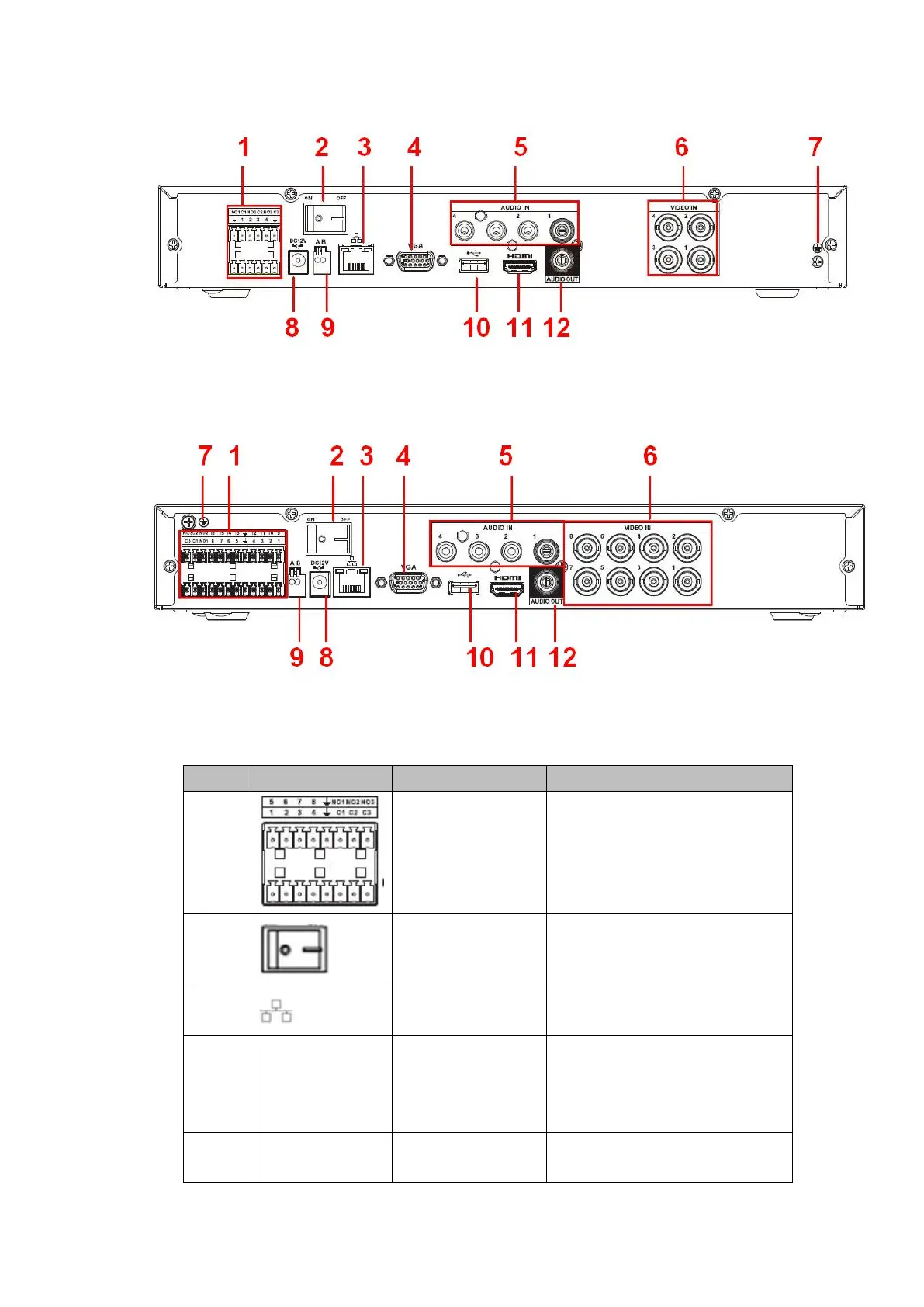

The HCVR7108HE-V2 series rear panel is shown as below. See Figure 2- 41.
Figure 2- 41
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Alarm input/Alarm
output
Input/output alarm signal.
2
Power on-off
button
Power on/off button.
3
Network port
100M Ethernet port
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
5
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
