GENERAL
INFORMATION
ACKING

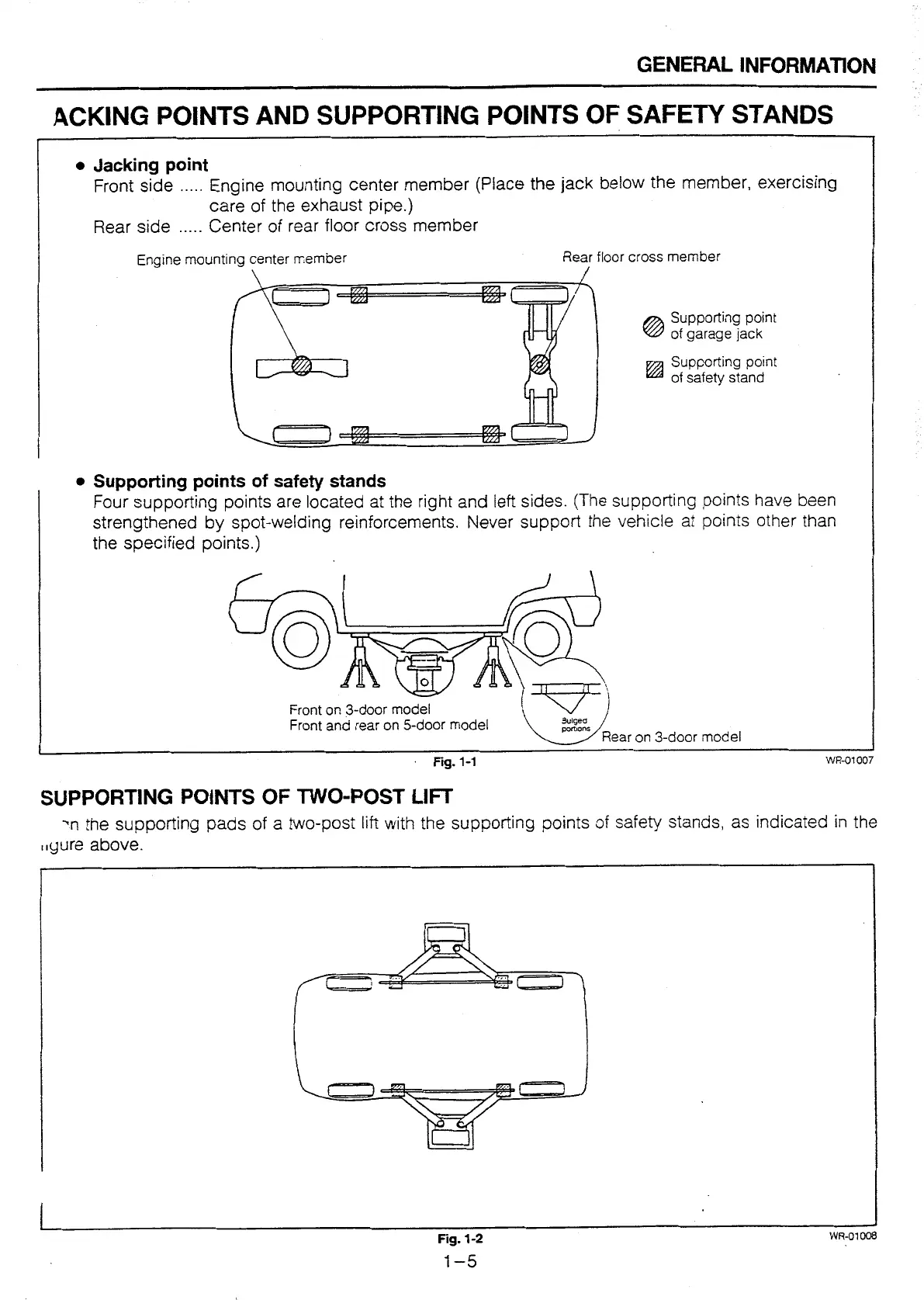

POINTS AND SUPPORTING POINTS
OF
SAFETY STANDS
I
I
Jacking point
Front side
...
Engine mounting center member (Place the jack below the member, exercising
care of the exhaust pipe.)
Rear side
.....
Center
of
rear floor cross member
Engine mounting center rcember
\
Rear floor
/
cross
member
@
Supporting point
of garage jack
Supporting point
of safety stand
Supporting points
of
safety
stands
Four supporting points are located at the right and left sides. (The supporting points have been
strengthened by spot-welding reinforcements. Never support the vehicle at points other than
the specified points.)
SUPPORTING POINTS OF TWO-POST LIFT
-.n the supporting pads of a two-post lift with the supporting points of safety stands, as indicated in the
,,yure above.
\
I
Fig.
1-2
WR-01008
