Daikin 3MXM40M2V1B User Manual

English 11

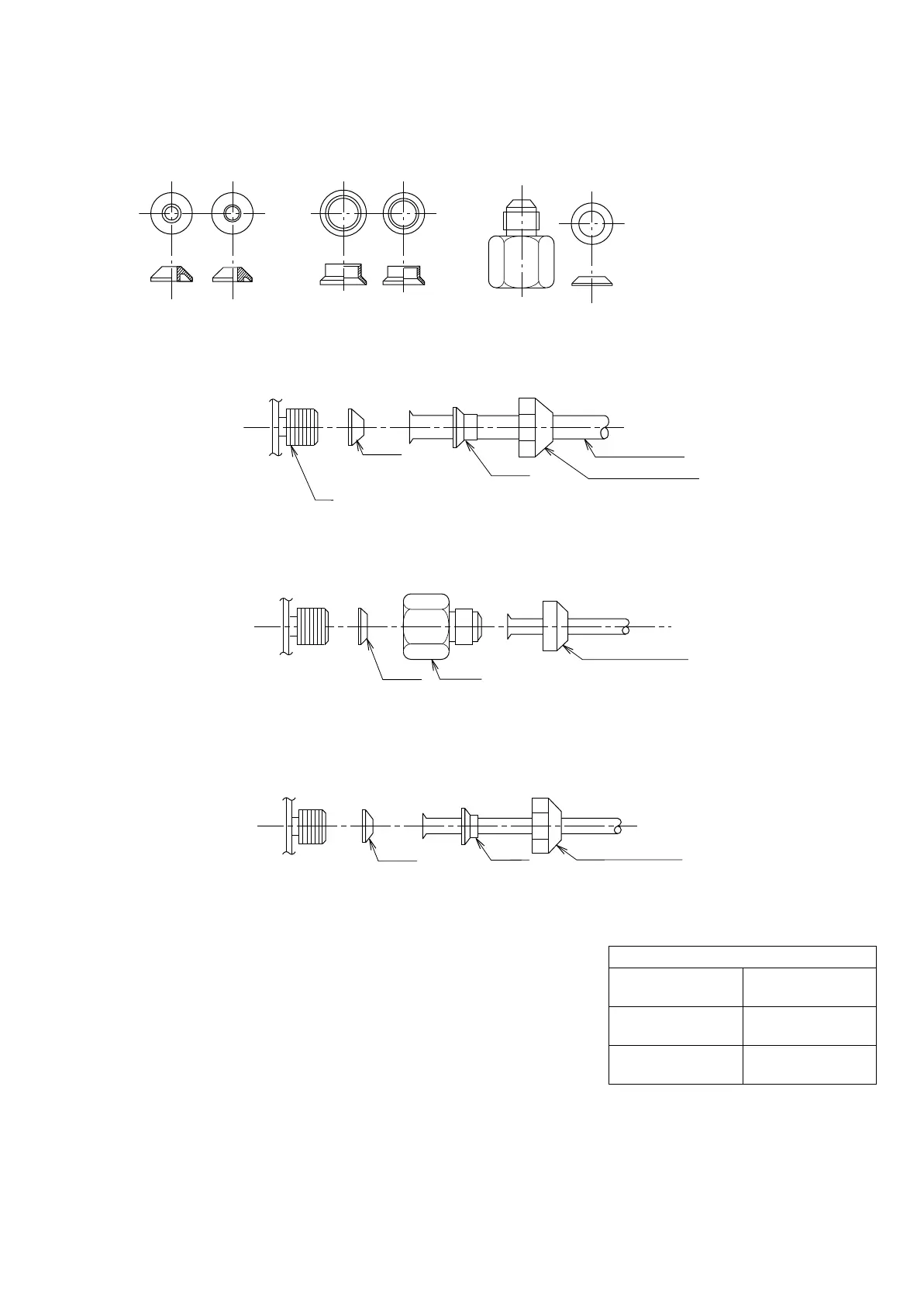

How to Use Reducers
Use the reducers supplied with the unit as described below.
1) Connecting a pipe of φ12.7 to a gas pipe connection port for φ15.9:
2) Connecting a pipe of φ9.5 to a gas pipe connection port for φ15.9:
3) Connecting a pipe of φ9.5 to a gas pipe connection port for φ12.7:
• When using the reducer packing shown above, be careful not to over-
tighten the nut, or the smaller pipe may be damaged. (about 2/3 - 1
the normal torque)
• Apply a coat of refrigeration oil to the threaded connection port of the
outdoor unit where the flare nut comes in.
• Use an appropriate wrench to avoid damaging the connection thread
by overtightening the flare nut.
Flare nut tightening torque
Flare nut for φ9.5
32.7–39.9N·m
(333–407kgf·cm)
Flare nut for φ12.7
49.5–60.3N·m
(505–615kgf·cm)
Flare nut for φ15.9
61.8–75.4N·m
(630–769kgf·cm)
No.1
φ15.9
→ φ12.7
No.2
φ12.7
→ φ9.5
No.3
φ15.9
→ φ12.7
No.4
φ12.7
→ φ9.5
No.5
φ15.9
→ φ9.5
No.6
φ15.9
→ φ9.5
Gasket (1) Gasket (2) Reduce and gasket
No. 1
No. 3
Flare nut (for φ15.9)
Inter-unit piping
Connection port
of outdoor unit
Be sure to attach
the gasket.
No. 5
No. 6
Flare nut (for φ9.5)
Be sure to attach
the gasket.
No. 4
No. 2
Flare nut (for φ12.7)
Be sure to attach
the gasket.
3PEN417620-1D.book Page 11 Thursday, February 4, 2016 8:24 AM
