7 | Piping installation
Installer reference guide
39
2MXM-A, 3MXM-A, 4MXM-A, 5MXM-A
R32 Split series
4P600463-5E – 2021.12

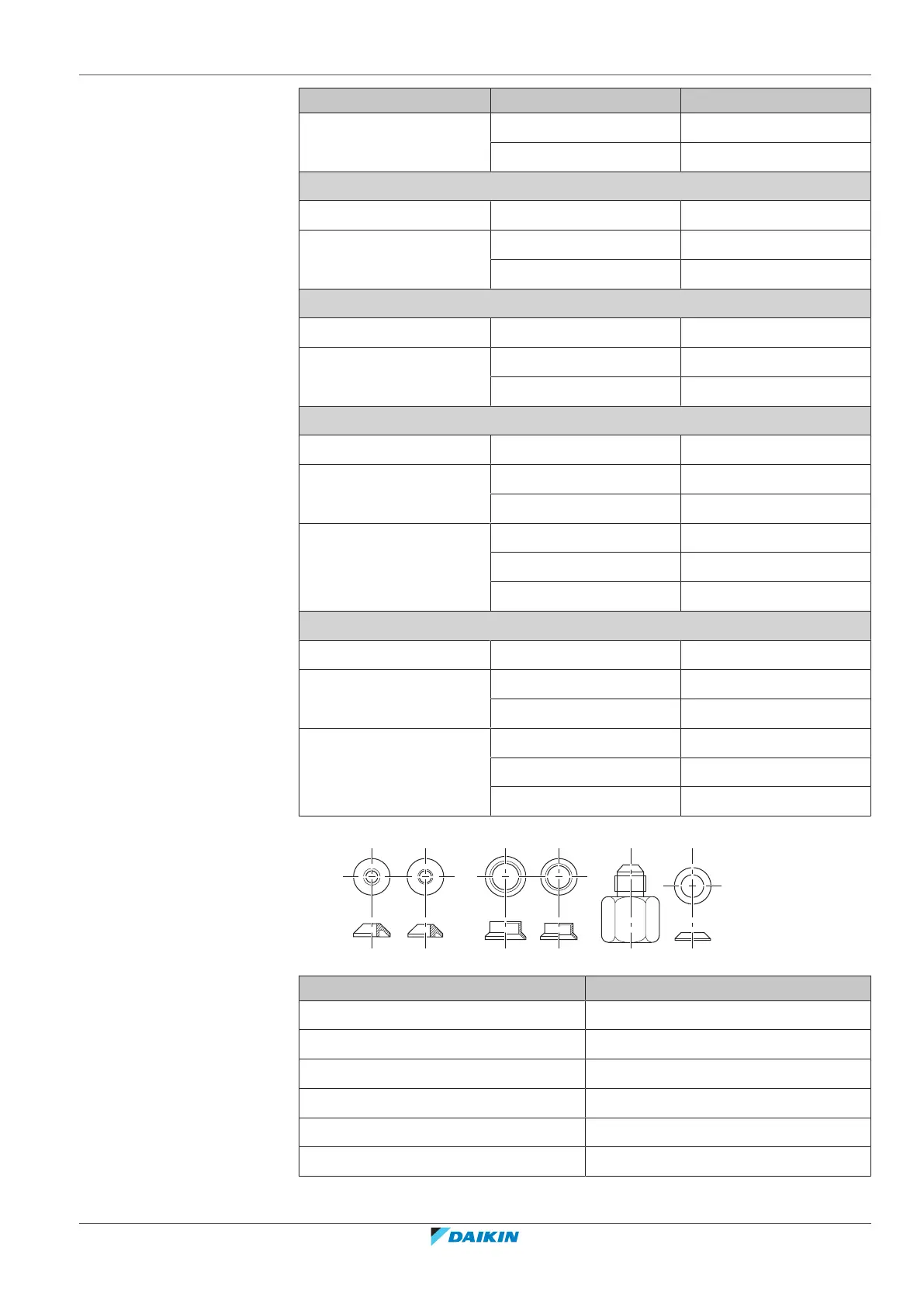

Port Class Reducer
B + C (Ø12.7mm) 15, 20, 25, 35 2+4
42, 50 —
3MXM68
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B + C (Ø12.7mm) 15, 20, 25, 35, 42 2+4
50, 60 —
4MXM68
A + B (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
C + D (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
4MXM80
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
C + D (Ø15.9mm) 15, 20, 25, 35, (42)
(a)
5+6
42, 50, 60 1+3
71 —
5MXM90
A + B (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
C (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
D + E (Ø15.9mm) 15, 20, 25, 35, (42)
(a)
5+6
42, 50, 60 1+3
71 —
(a)
Only in case of connection with FTXM42R.
1 2 3 4 5 6
Reducer type Connection
1 Ø15.9mm → Ø12.7mm
2 Ø12.7mm → Ø9.5mm
3 Ø15.9mm → Ø12.7mm
4 Ø12.7mm → Ø9.5mm
5 Ø15.9mm → Ø9.5mm
6 Ø15.9mm → Ø9.5mm
